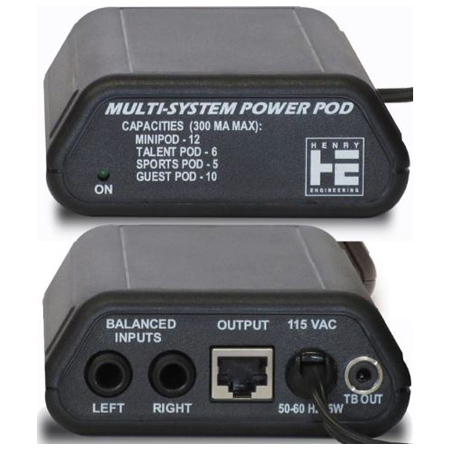

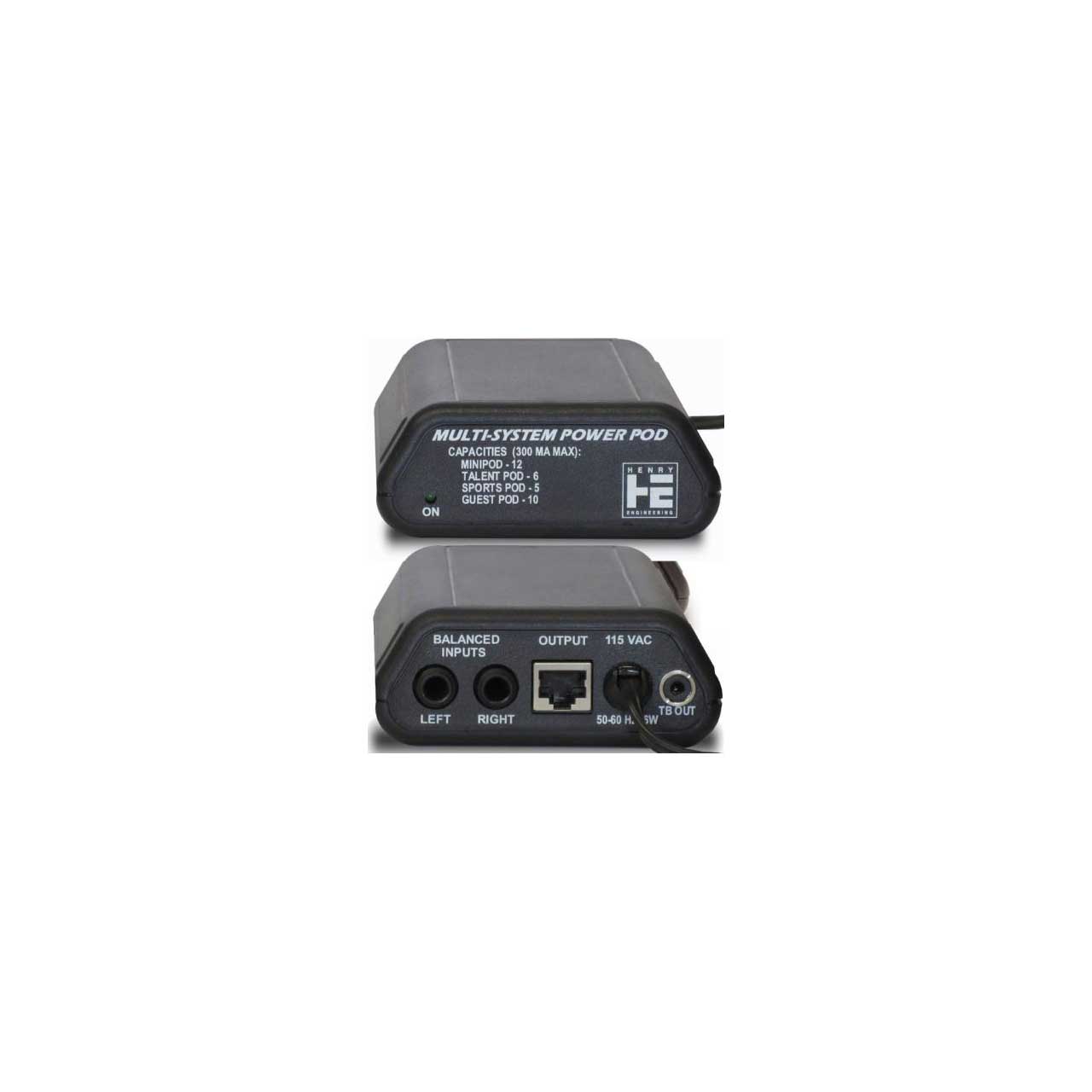

The Henry Engineering Multi-System Power Pod now works with ALL Henry Engineering Pod Products. Compared to a wall wart style transformer, the Power Pod's output is more stable with better regulation and less noise. It yields better performance especially when used with Talent / Sports Pods.

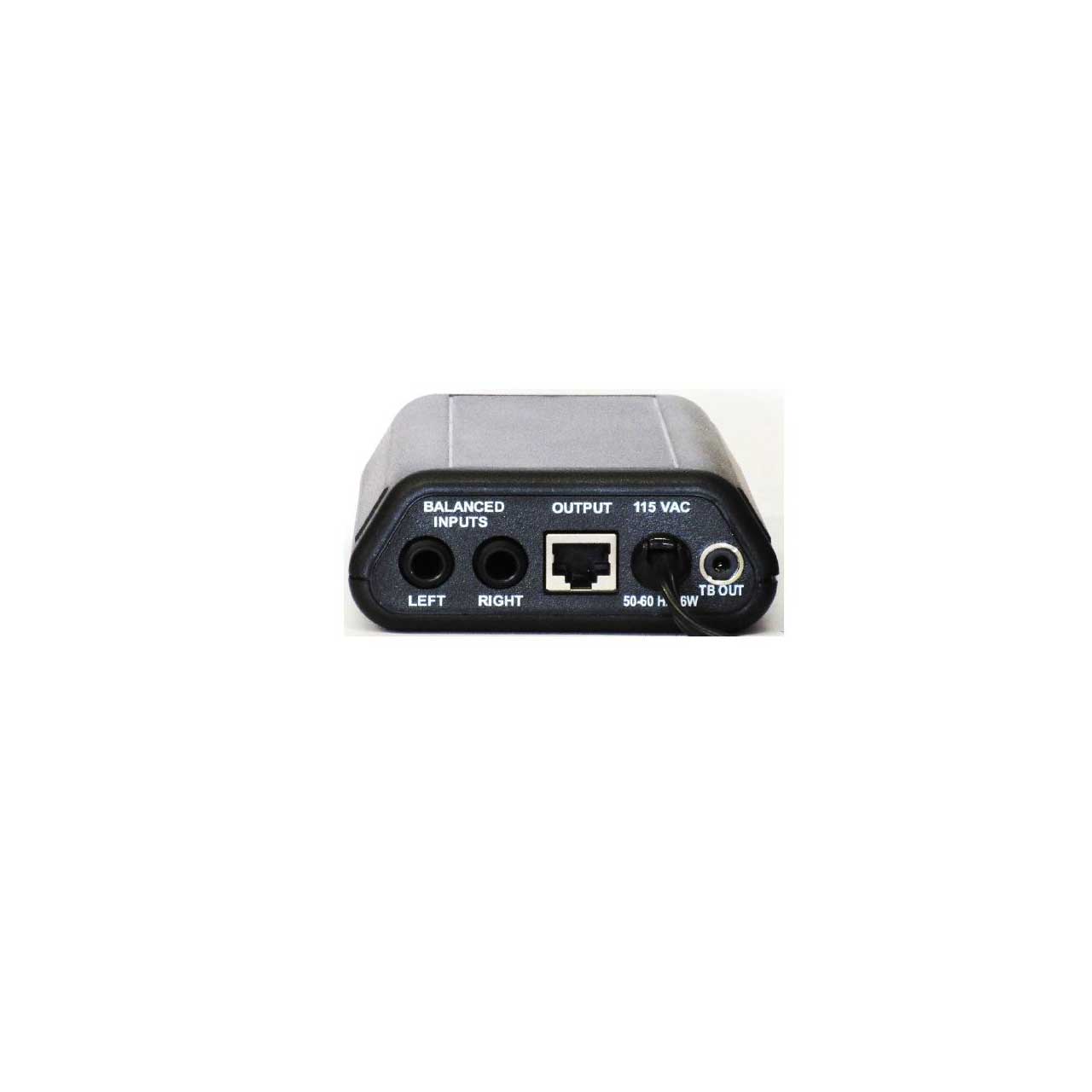

The Multi-System Power Pod connects to other pod products via the cat5 output. It supplies power and Local/Remote (or stereo) audio to all other units in the system. Note that audio may be fed into the Power Pod, OR into any other unit in the system. The cat5 linking will distribute power and audio to the entire system, eliminating the need for separate power supplies, audio DAs, and complicated wiring. The TB OUT jack on the Power Pod provides a convenient way to access the Talkback audio from Sports Pod units; it provides a mix of all the Sports Pods Talkback outputs
Any combination of Henry Engineering Pod Products can be used, up to a maximum of 300 mA.
TALENT POD: (50 mA ea.)
SPORTS POD: (60 mA ea.)
MINIPOD: (25 mA ea.)
GUEST POD: (30 mA ea.)
