Tripp Lite SMART1300LCDT 1300VA UPS Smart LCD Back Up Tower AVR 120V USB Coax RJ45

SMART1300LCDT - Overview

• Features:

  • SMART1300LCDT line interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support

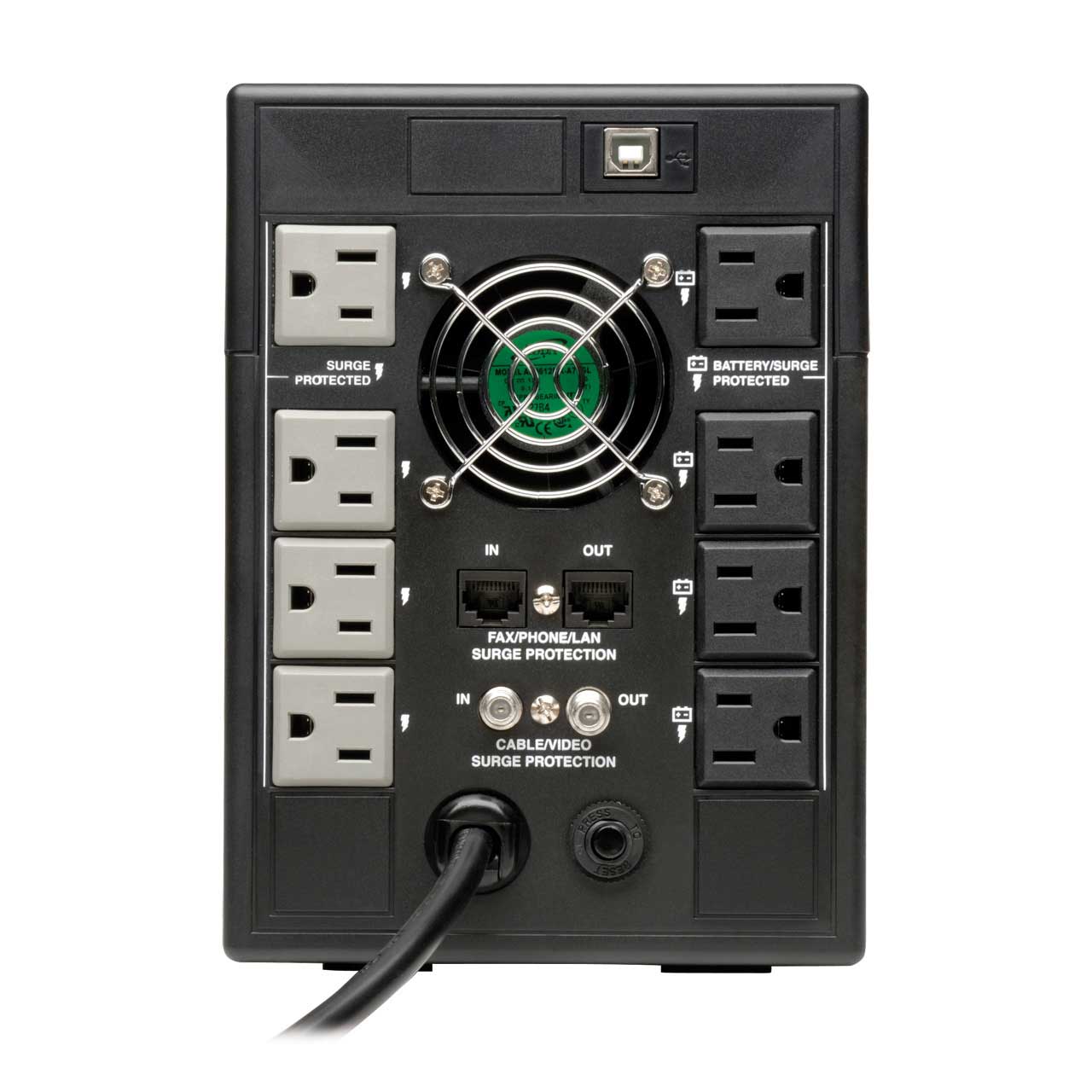

  • 8 built-in NEMA 5-15R outlets, 4 with UPS and surge suppression for vital components and 4 additional outlets with surge-only protection for devices not requiring battery support
  • NEMA 5-15P input plug; 6ft / 1.8m line cord
  • Maintains operation of connected equipment to prevent data loss, equipment damage and downtime associated with power failures and severe voltage fluctuations
  • Line Interactive Automatic Voltage Regulation / AVR circuits continuously correct brownouts and overvoltages from 92 to 150V without using battery power
  • Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges
  • Offers 10 minutes runtime 50% load (360 watts)
  • Supports an entry level desktop system with LCD screen for up to 64 minutes during power failures (75 watts)
  • LCD display continuously reports operating mode and battery charge level, plus additional UPS and site power data, such as input & output voltage, frequency, load percentage, load watts, battery voltage and estimated runtime in minutes
  • USB monitoring port enables optional unattended system shutdown using PowerAlert UPS management software available via free download from www.tripplite.com
  • HID-compliant USB interface also enables automatic integration with built-in power management and auto shutdown features of Windows and Mac OSX
  • Built-in data line surge suppression offers protection for equipment with single-line dialup or network ethernet connection, plus one set of coax jacks for CATV / broadcast line protection


• Specifications:

  • Output Volt Amp Capacity (VA): 1300
  • Output kVA Capacity (kVA): 1.3
  • Output Watt Capacity (Watts): 720
  • Nominal Output Voltage(s) Supported: 120V
  • Frequency Compatibility: 60 Hz
  • Output Voltage Regulation (Line Mode): -10%, +6%
  • Output Voltage Regulation (Battery Mode): +/- 5%
  • Output Receptacles: (8) 5-15R
  • UPS Output Receptacles (Surge Suppression Only): 4 UPS outlets, 4 surge-only outlets
  • Output AC Waveform (AC Mode): Sine wave
  • Output AC Waveform (Battery Mode): PWM sine wave
  • Rated input current (Maximum Load): 12A
  • Nominal Input Voltage(s) Supported: 120V AC
  • UPS Input Connection Type: 5-15P
  • Input Circuit Breakers: 20A
  • UPS Input Cord Length (ft.): 6
  • Recommended Electrical Service: 15A 120V
  • Input Phase: Single-Phase
  • Half Load Runtime (min.): 10 minutes (360 watts)
  • DC System Voltage (VDC): 24
  • Battery Recharge Rate (Included Batteries): Less than 6.3 hours from 10% to 90%
  • Internal UPS Replacement Battery Cartridge: RBC51 (requires 2)
  • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
  • Overvoltage Correction: Input voltages between 129 and 150 are reduced by 15%
  • Undervoltage Correction: Input voltages between 92 and 108 are boosted by 18%

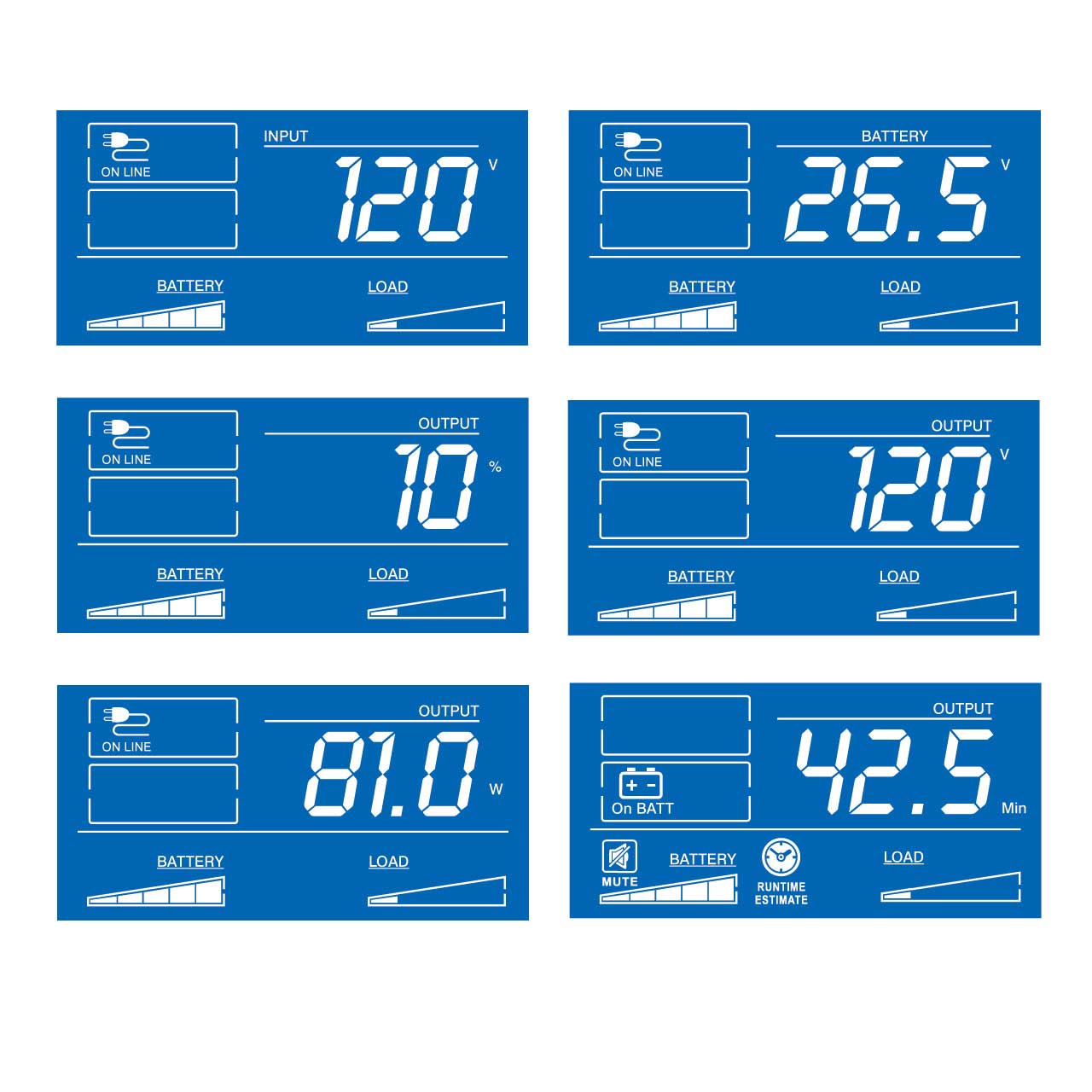

  • Front Panel LCD Display: LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Output load in watts, Battery voltage and Estimated runtime in minutes
  • Audible Alarm: Audible alarm indicates power-failure and low-battery conditions
  • Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch
  • Switches: Power switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
  • UPS AC Suppression Joule Rating: 650
  • UPS AC Suppression Response Time: Instantaneous
  • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
  • EMI / RFI AC Noise Suppression: Yes
  • Primary Form Factor: Tower
  • UPS Power Module Dimensions (hwd, in.): 8 x 5.75 x 15.4
  • UPS Power Module Weight (lbs.): 26.5
  • UPS Shipping Dimensions (hwd / in.): 9 x 11.25 x 19.25
  • Shipping Weight (lbs.): 26.5
  • Cooling Method: Fan
  • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity: 0 to 95%, non-condensing
  • AC Mode Efficiency Rating (100% Load): 0.95
  • Communications Cable: USB and DB9 Serial cabling included
  • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
  • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
  • High Availability UPS Features: hot-swap batteries
  • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS
  • UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
  • Product Warranty Period (U.S. & Canada): 3-year limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
  • UPS Applications: Desktop; Audio/Video

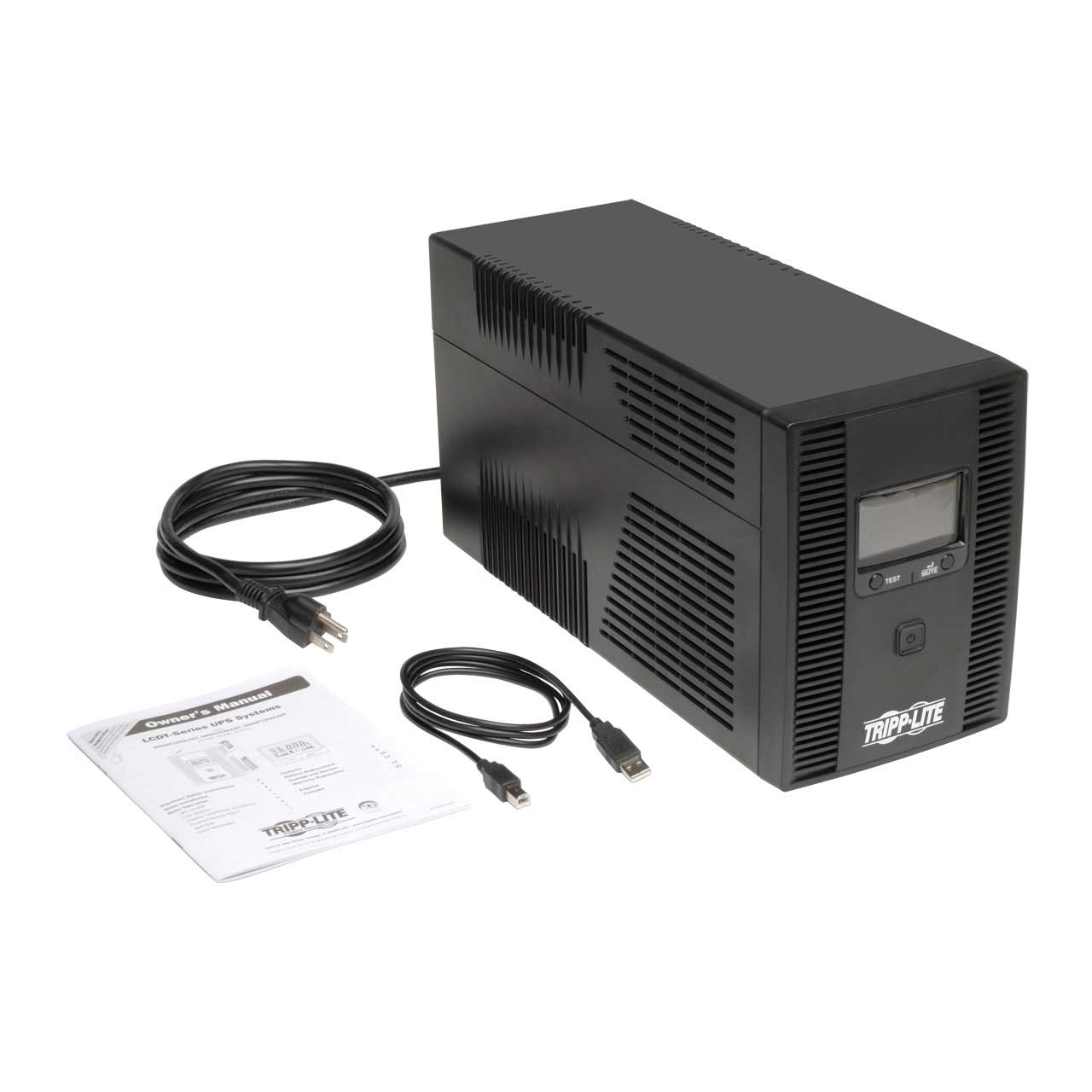

• Item Includes:

  • SMART1300LCDT UPS
  • USB cabling
  • Manual with warranty information


• GTIN:

  0037332174116
