Camplex opticalCON DUO SMPTE Chassis with Pre-wired Copper to BP3 Style 6-pin AMP Connector - NO FIBER

ITEM #: HF-OCSMPTE-BP3 MFG #: HF-OCSMPTE-BP3

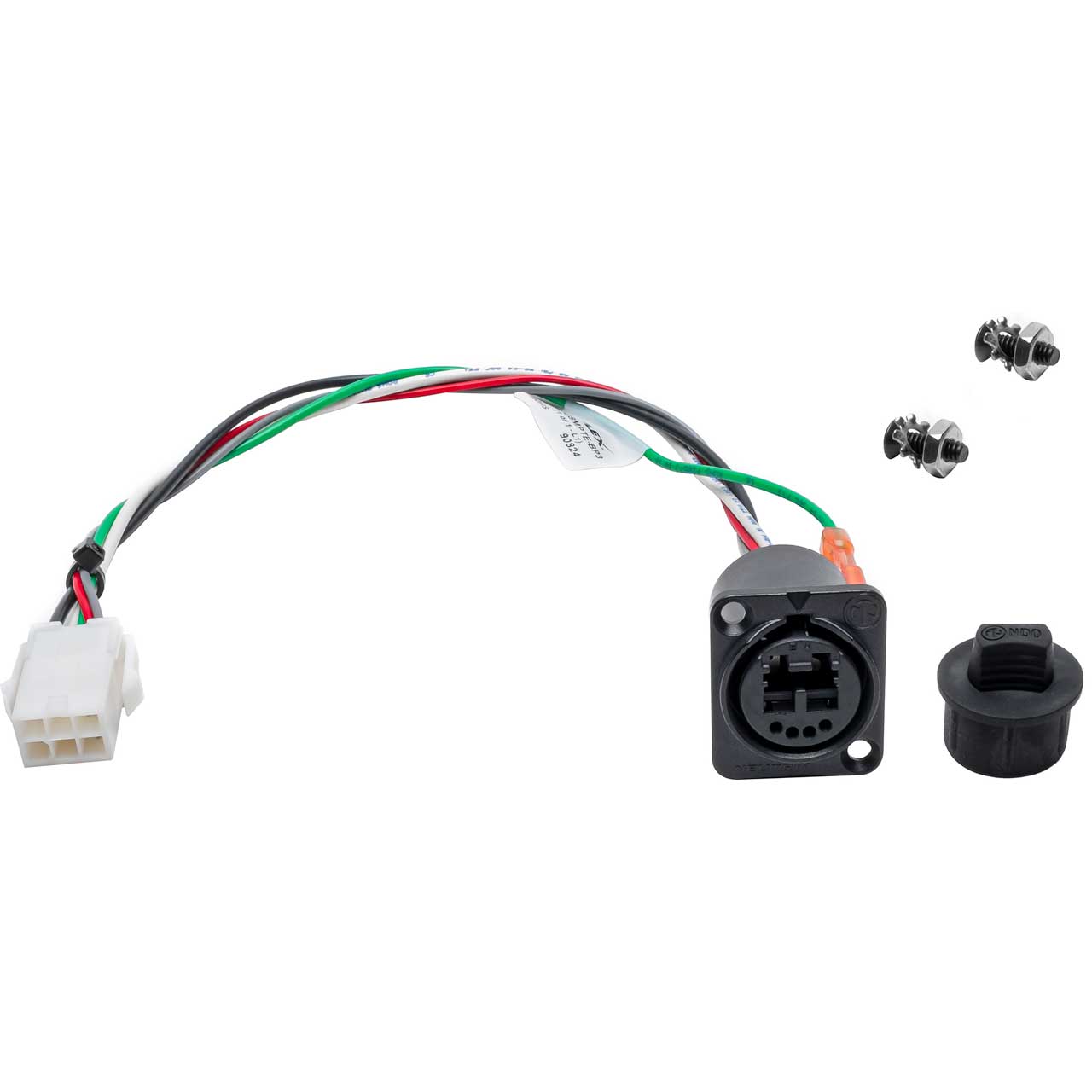

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$189.49

Our Price:

$171.95

Availability: In Stock
iAvailability Description Popup


HF-OCSMPTE-BP3 - Overview

If you need a simple, out-of-the-box SMPTE opticalCON pigtail solution, checkout the Camplex HF-OCSMPTE-BP3. This pre-terminated Neutrik opticalCON DUO SMPTE chassis connector is ready for immediate installation, no soldering or fiber splicing and polishing necessary. It includes copper conductors mated to a standard 6-pin AMP BP3 style connector. Save time and simplify your installs today!

  • Features:

    • Neutrik opticalCON Chassis with Protective Rubber Dustcap
    • Pre-wired Copper
    • "BP3" Style 6-Pin AMP Connector
    • Fiber Optic Assemblies 100% Tested for Attenuation and Back Reflection
    • No Fiber - Power Conductors Only

  • Specifications:

    • Neutrik NO2-4FDW-1-A opticalCON DUO Chassis Mount:
    • Contact resistance: < 7 mΩ
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 2 GΩ (initial)
    • Rated current per contact: 6 A
    • Rated voltage: < 50 V (1)
    • Ground contact: Faston 2.8 x 0.5
    • Insertion force: < 45 N
    • Withdrawal force: < 45 N
    • Lifetime (typ.): 5000 mating cycles
    • Locking force: 1000 N
    • Locking device: Push-Pull
    • Mounting direction: Front mounting
    • Chassis shape: D
    • Contacts: Bronze (CuSn6)
    • Flammability: UL 94 V-0
    • Temperature range: 40°F - 167°F (-40°C to +75 °C)
    • Insertion loss: < 0.4 dB / connection
    • Optical connector: LC-Duplex Feedthrough
