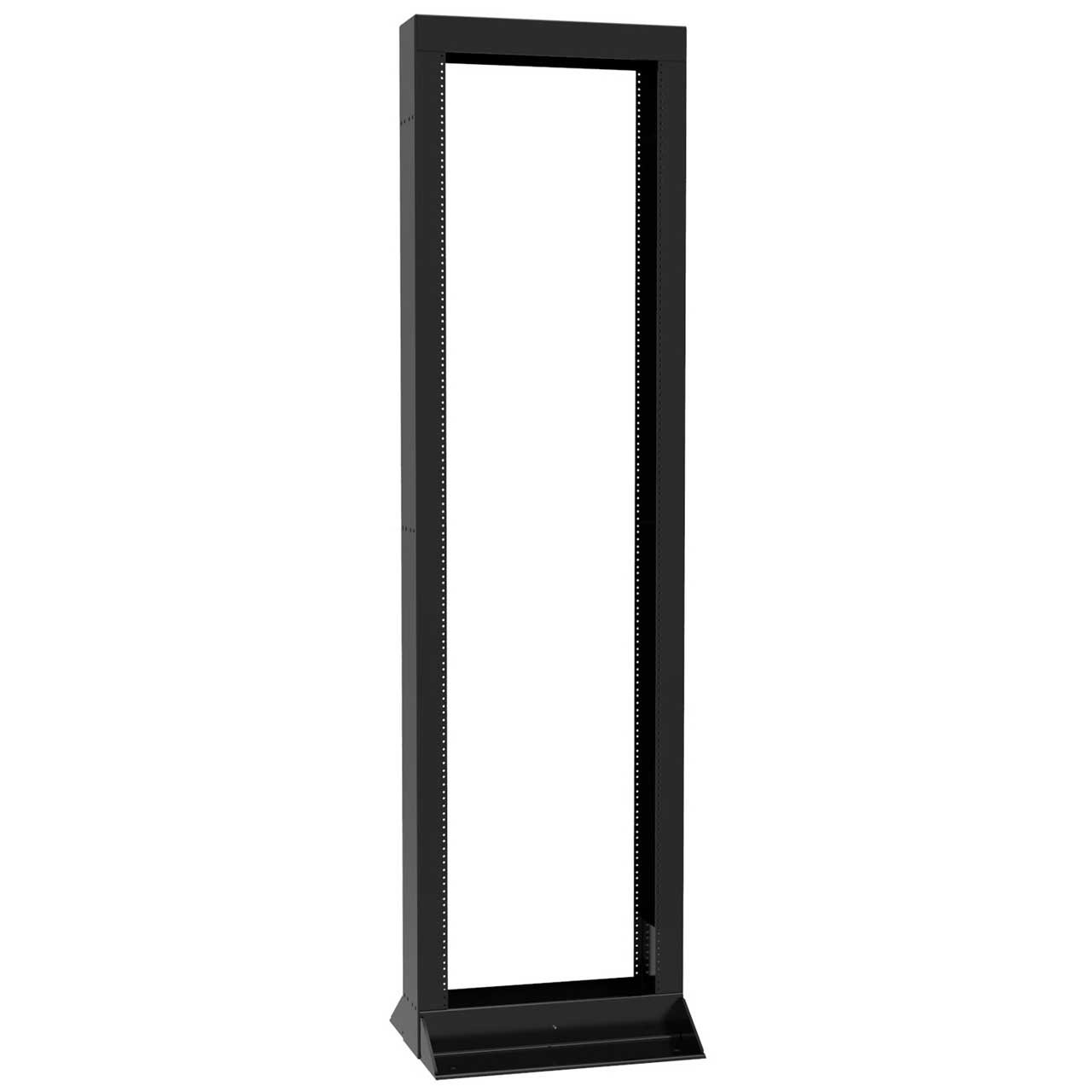

Hammond DRZ477 44RU 2-Post Seismic Zone-4 10-32 Double-tapped 2-post Rack

DRZ477 - Overview

• Features:

  • Rugged design was engineered to perform in the most critical seismic environments.
  • Increased overall width of 22.75 inches provides additional side-to-side load strength.
  • EIA compliant 10-32 front and rear tapped (6.00" deep) rails with 19" mounting.
  • Includes marked rack unit dividers to aid in equipment mounting.
  • Two (2) sets of side mounting holes on side of rack allows for Hammond cable managers to be mounted facing front and rear.
  • The side mounting holes can also be used to gang racks together.
  • Includes two (2) pairs of integrated 10-32 ground studs, spaced 5/8" apart. Stud pairs are located conveniently at both ends of the rack. The upper location is centered inside the upper channel and the lower location is centered on the front base of the rack. This upgrade ensures a secure and easy ground lug attachment.
  • Includes top bracket mounting holes that are compatible with top cable accessories.
  • Includes large base for freestanding support of equipment.
  • Finished in smooth black powder paint.


• Specifications:

  • Size H x W x D: 84 in x 22.75 in x 18 in (2,134 mm x 578 mm x 457 mm)
  • Shipping Weight: 130 lbs (58.97 kg)
  • Rack Units: 44
  • Rack Type: Open Rack
  • Paint Color: RAL9005 Black
  • Rail Type: Tapped 10-32


• Item Includes:

  • 1x Hammond DRZ477 44RU 2-Post Seismic Zone-4 10-32 Double-tapped 2-post Rack


• GTIN:

  0623980412221
