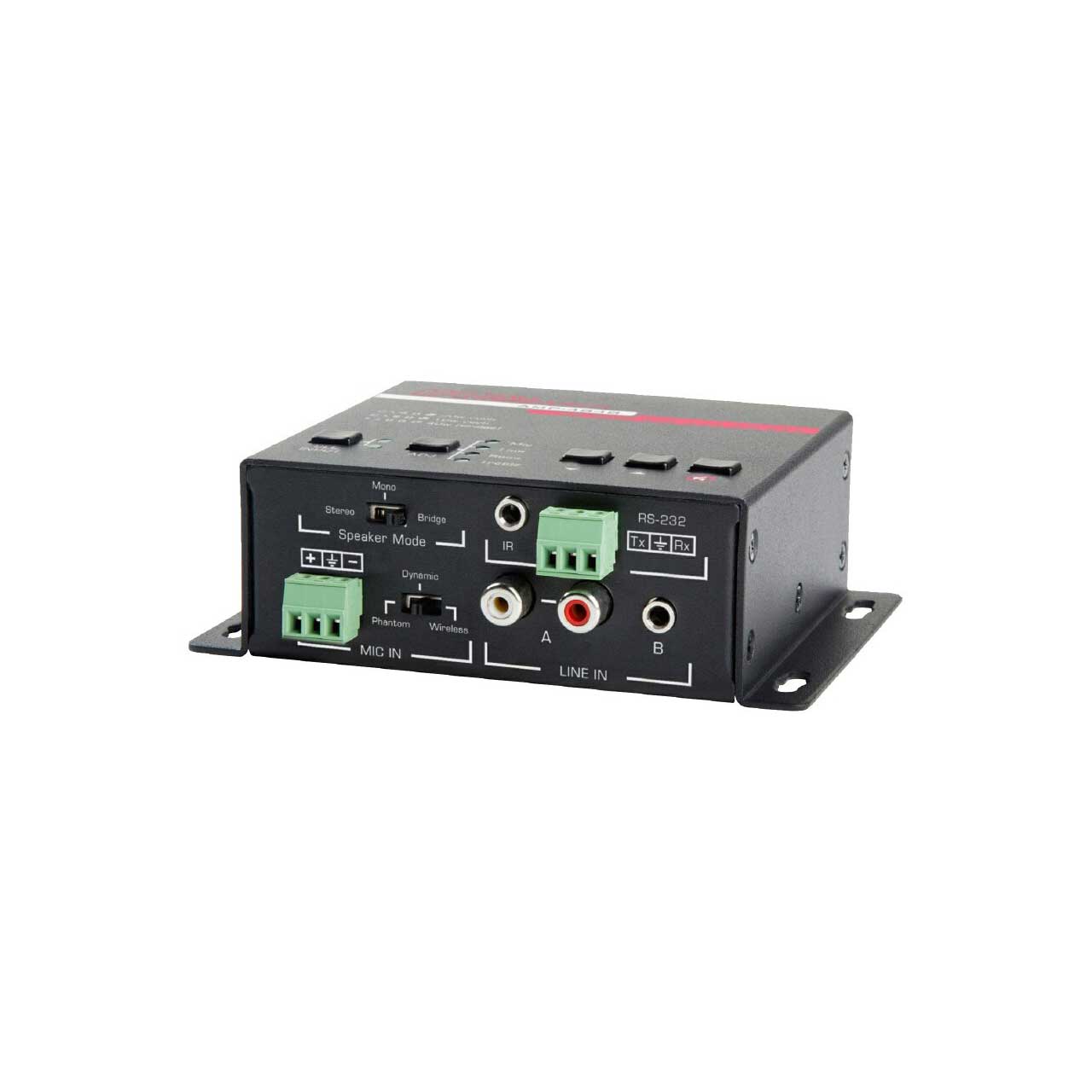

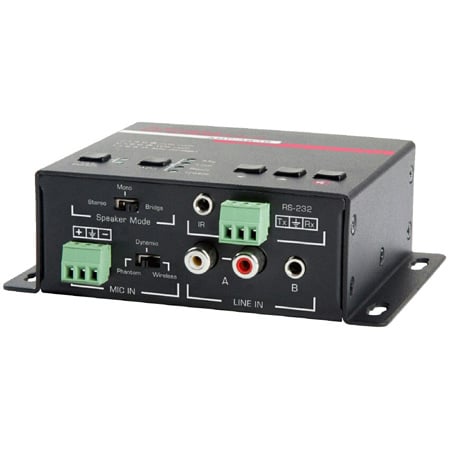

Hall Technologies AMP-4840 Audio Amplifier with Microphone Mixer and RS-232 Control - 40 Watt

AMP-4840 - Overview

• Features:

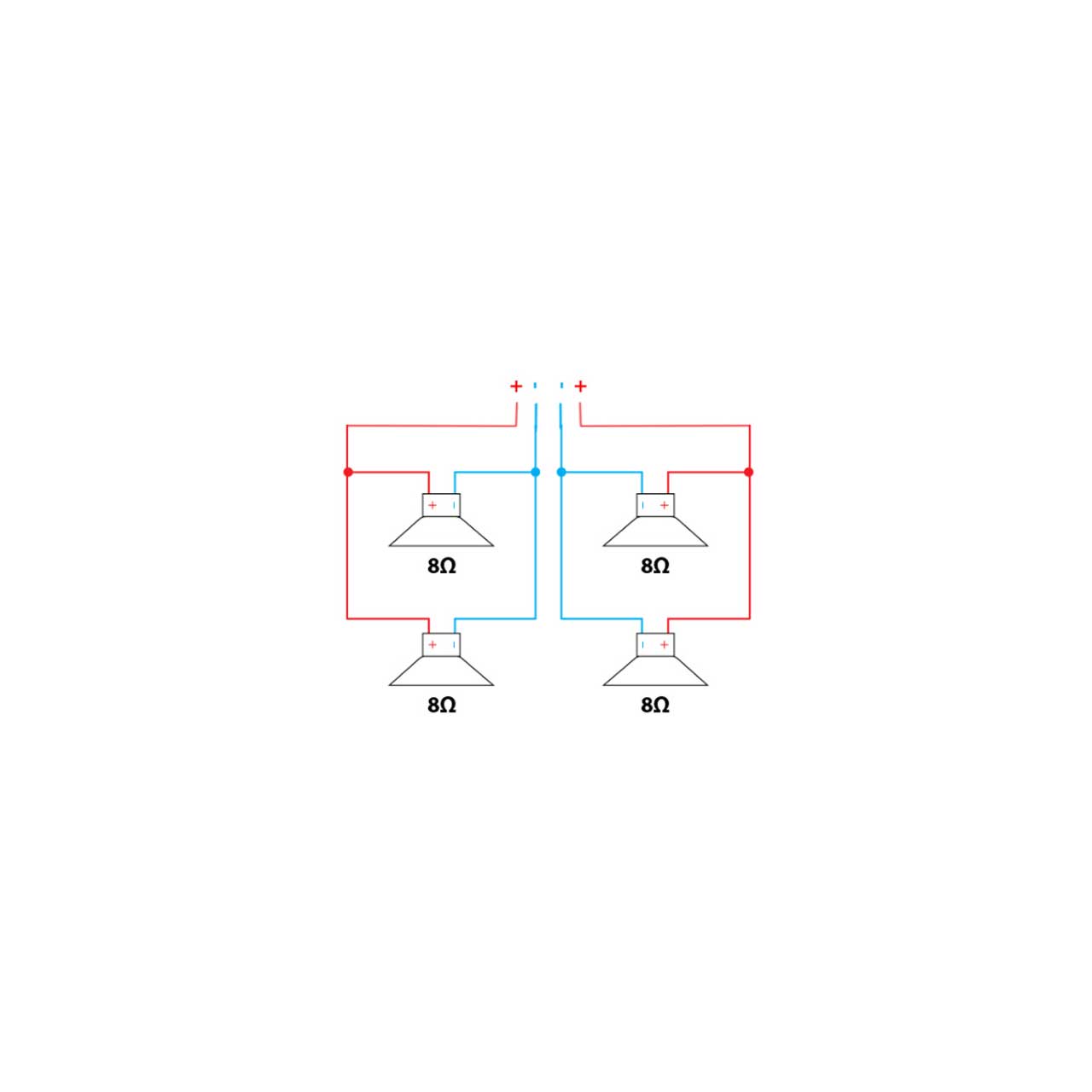

  • Drives: 2x 20w @ 4Ω or 2x 10w @ 8Ω or 1x 40w @ 8Ω in bridge mode

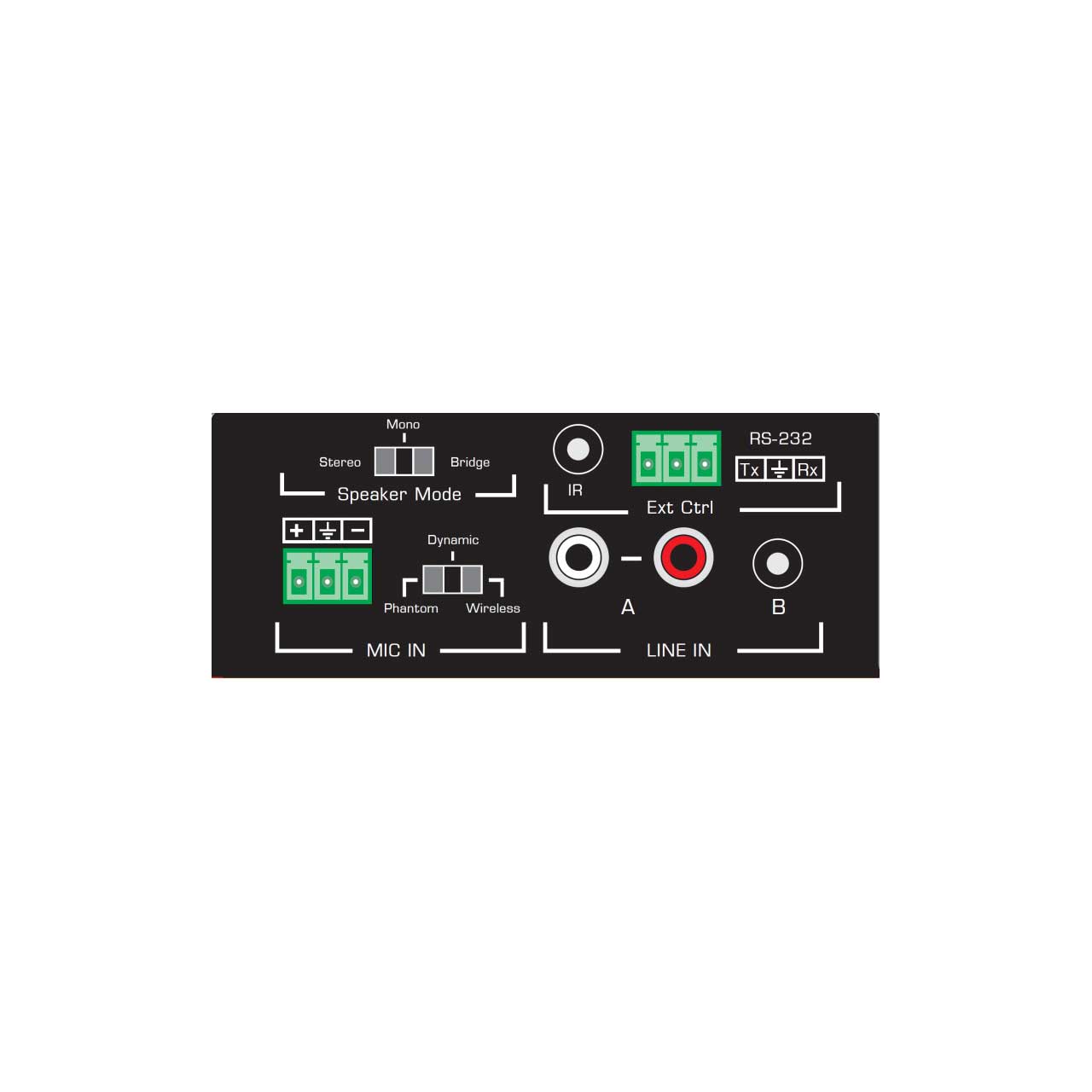

  • Two stereo audio inputs, switchable by button, IR remote & RS-232

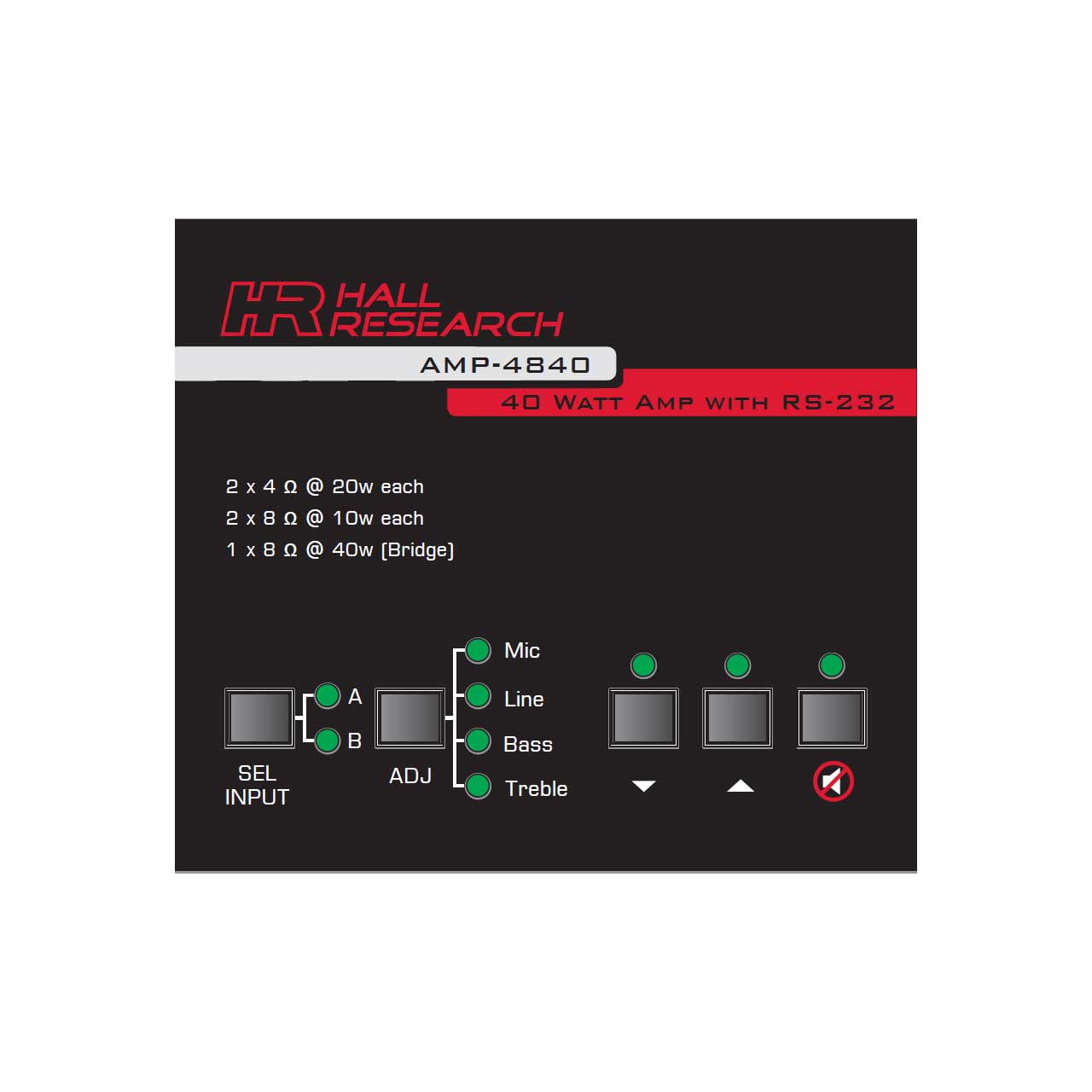

  • Volume / Bass / Treble controllable by buttons IR remote & RS-232
  • MIC port supports balanced or unbalanced signals
  • 3.5mm jack line audio output with controllable volume
  • Mono mix switch for summing left and right channels for driving mono outputs
  • Microphone input can be mixed with line input and each can be controlled separately
  • MIC input supports 48V phantom power, dynamic MIC and wireless MIC
  • Auto noise squelch. Detects audio on inputs and mutes the output when there is no input
  • Does not have fans


• Specifications:

  • Rated Output: 2 x 20 w @ 4 or 2 x 10 w @ 8
  • Gain: 1 x 40 w @ 8 - in bridge mode
  • Frequency Range: 32dB
  • Signal/Noise Ratio: 20Hz to 20KHz
  • Total Harmonic Distortion: 80dB (at max output)
  • Input Impedance: 1% (1KHz), 0.3% (20KHz) -- at nominal levels
  • Output Impedance: >10K-
  • Stereo Channel Separation: 3.5mm Loop Out: 50- stereo
  • CMRR:Speaker out: 4 ~ 8 Amplifier
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Humidity: 20 to 90% non-condensing
  • Power:Max Consumption: 40 watts
  • Idle Consumption: 4 watts
  • Input: 100 VAC to 240 VAC, 47-63 Hz
  • Output: 24 VDC / 5A
  • Dimension(W x D x H): 3.78 inch x 3.43 inch x 1.5 inch (96 mm x 87 mm x 38 mm)
  • Weight:Model: 0.66 lbs (0.3 kg)
  • Shipping: 2.16 lbs (0.98 kg)
  • Certifications:Unit: CE, FCC, RoHS; Power Supply: cULus


• Item Includes:

  • (1x) AMP-4840 device itself
  • (1x) AC Adapter (24 VDC) Power supply
  • (1x) User's Manual
  • The IR Remote can be ordered separately P/N: AMP-4840-REMOTE


• GTIN:

  0608415712275
