Icron 1850 USB 1.1 Rover 1850 Single port Cat 5e 85 meter extender

ITEM #: ICR-1850 MFG #: 1850

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Icron
Free Shipping with $49 Minimum Order

Our Price:

$83.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1850 - Overview

The Icron USB Rover® 1850 extends USB 1.1 connections beyond the desktop up to 85* meters without external power adapters, ideal for keyboards, mice, game controllers and interactive whiteboards - including all SMART Boards and Promethean ActivBoards.

USB Rover® products operate over standard solid core Cat 5e/6/7 cabling. The USB Rover 1850 uses technology ideal for extending USB peripherals and does not require additional software for either the computer or the target devices.

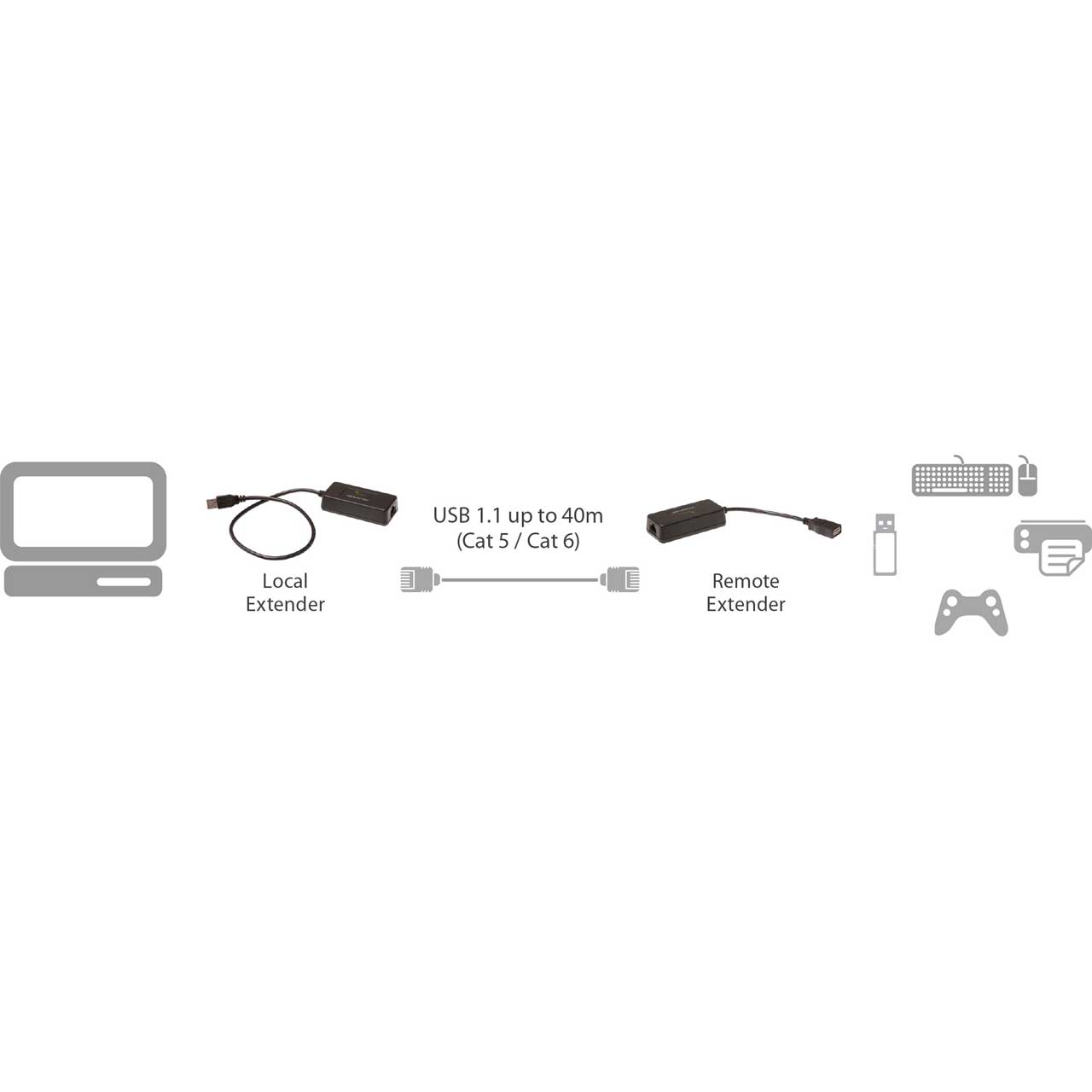

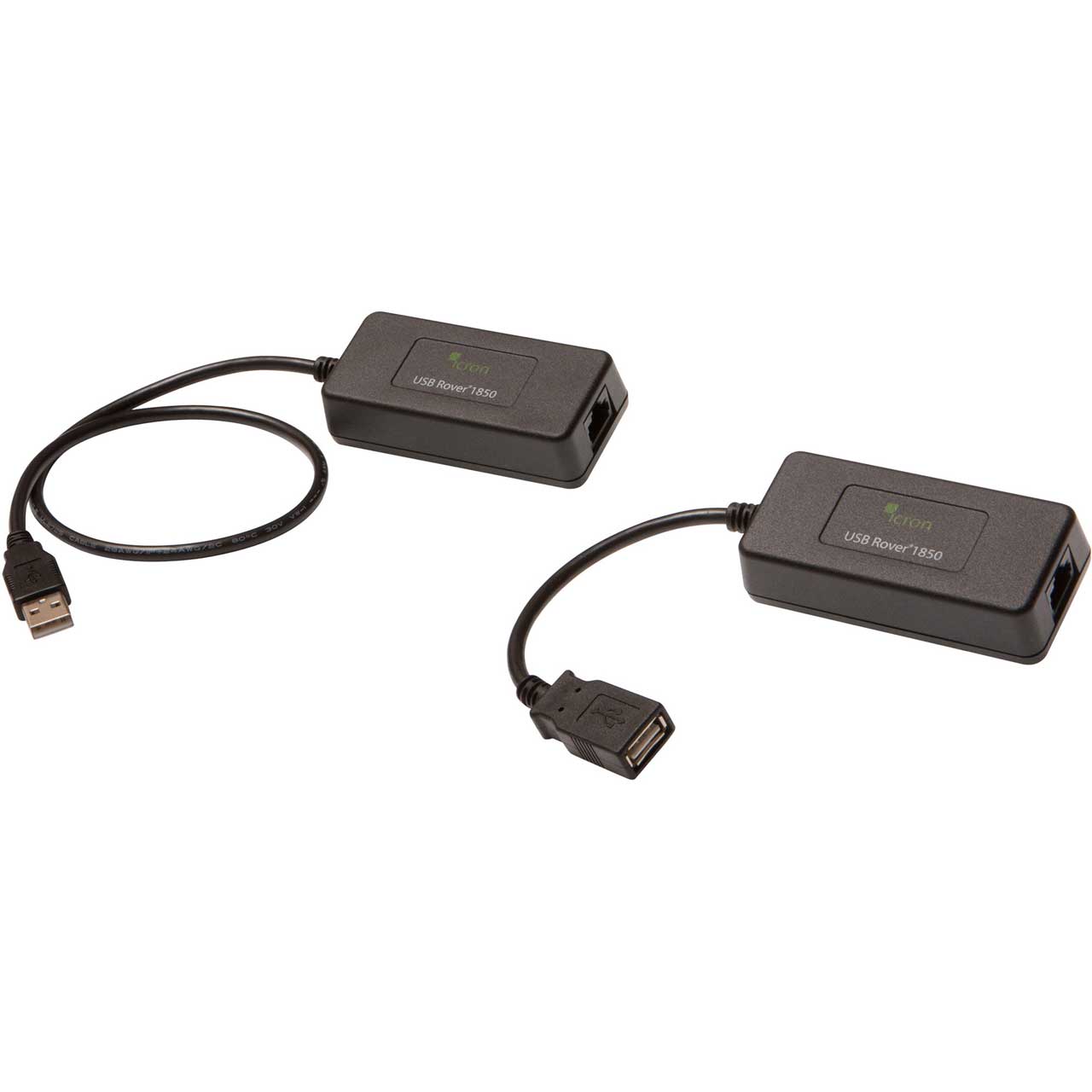

The USB Rover 1850 product is composed of two separate units: The Local Extender (LEX) and the Remote Extender (REX). Conventional USB cables are used to connect the LEX unit to the host computer, and the remote USB device to the REX unit. Cat 5e/6/7 cabling is used to connect the LEX and REX units over a distance of up to 85m (279 ft).

Applications:
Remote storage
Security and monitoring
Industrial Control
Keyboard and mouse

  • Features:

    • Remote extender supplies up to 400mA** to USB devices
    • Supports both full-speed (12Mbps) and low-speed (1.5Mbps) throughputs
    • Reliable operation with all USB 2.0 and 1.1 devices, including hubs
    • Robust ESD and EFT immunity for industrial environments
    • Includes the ExtremeUSB® suite of features:
      Transparent USB extension
      True plug and play; no software drivers required
      Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™


  • Specifications:

    • Range
    • Full-Speed and Low-Speed: Up to 40m (131 ft)
    • Low-Speed: Up to 85m (279 ft)*

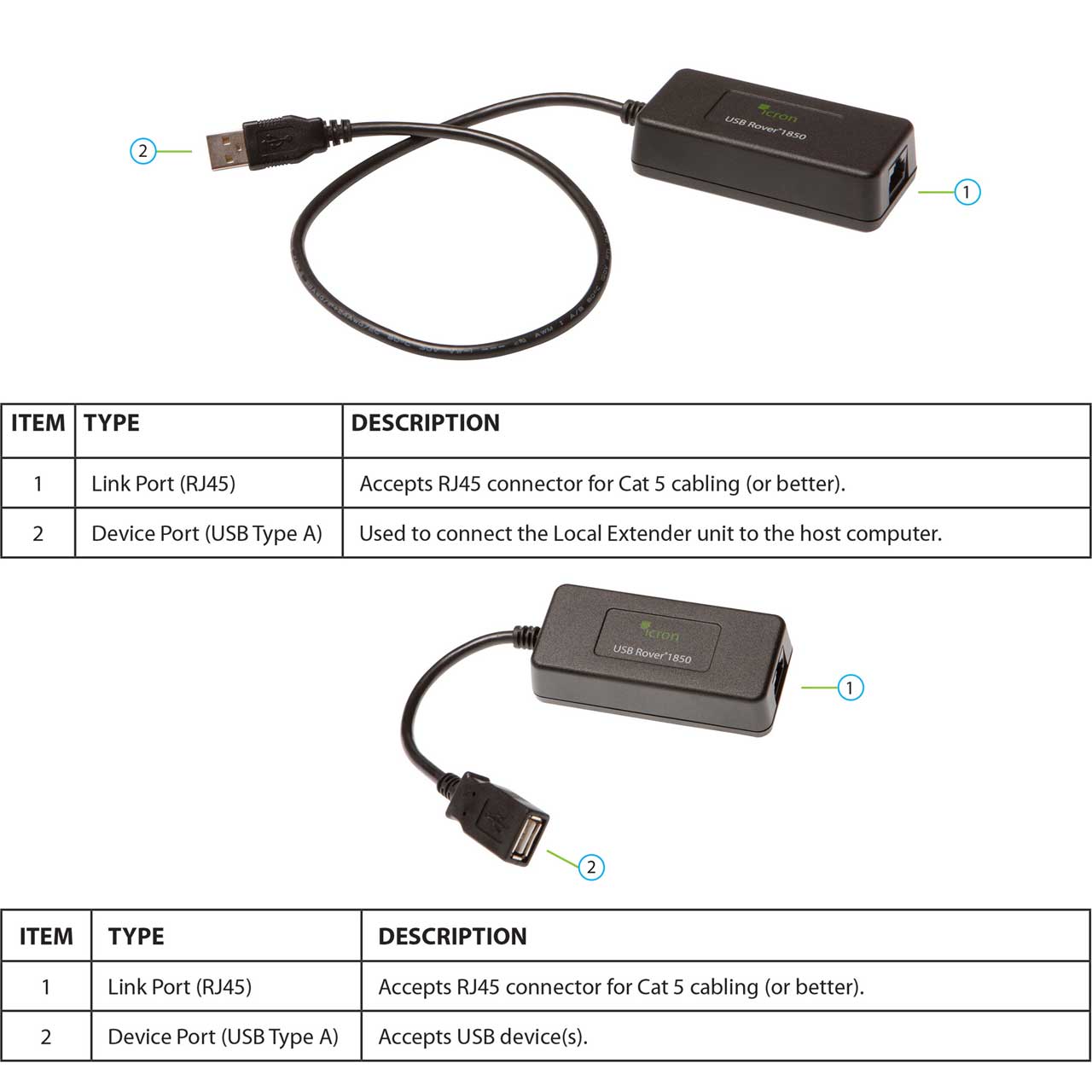

      LEX (Local Extender)
    • USB Connector: 1x USB Type A Plug
    • Pig Tail Length: 45.7cm (18")
    • Link Connector: 1x RJ45
    • Dimensions: 85 x 40 x 22mm (3.34 x 1.57 x 0.87")
    • Enclosure Material: Black ABS

      REX (Remote Extender)
    • USB Connector: 1x USB Type A Receptacle
    • Pig Tail Length: 15.2cm (6")
    • Link Connector: 1x RJ45
    • Maximum Current Available: 400mA when LEX is supplied with 700mA
    • Dimensions: 85 x 40 x 22mm (3.34 x 1.57 x 0.87")
    • Enclosure Material: Black ABS

      Environmental
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)

      Compliance
    • Emissions: FCC (Class A), CE (Class A)
    • Immunity: CE Criteria A
    • Environmental: RoHS2 (CE)
    • Safety: CPSIA, Flammability V-1


  • Item Includes:

    • Local Extender (LEX) module
    • Remote Extender (REX) module
    • Quick Start Guide


  • Warranty:

    • 3 Year Warranty
