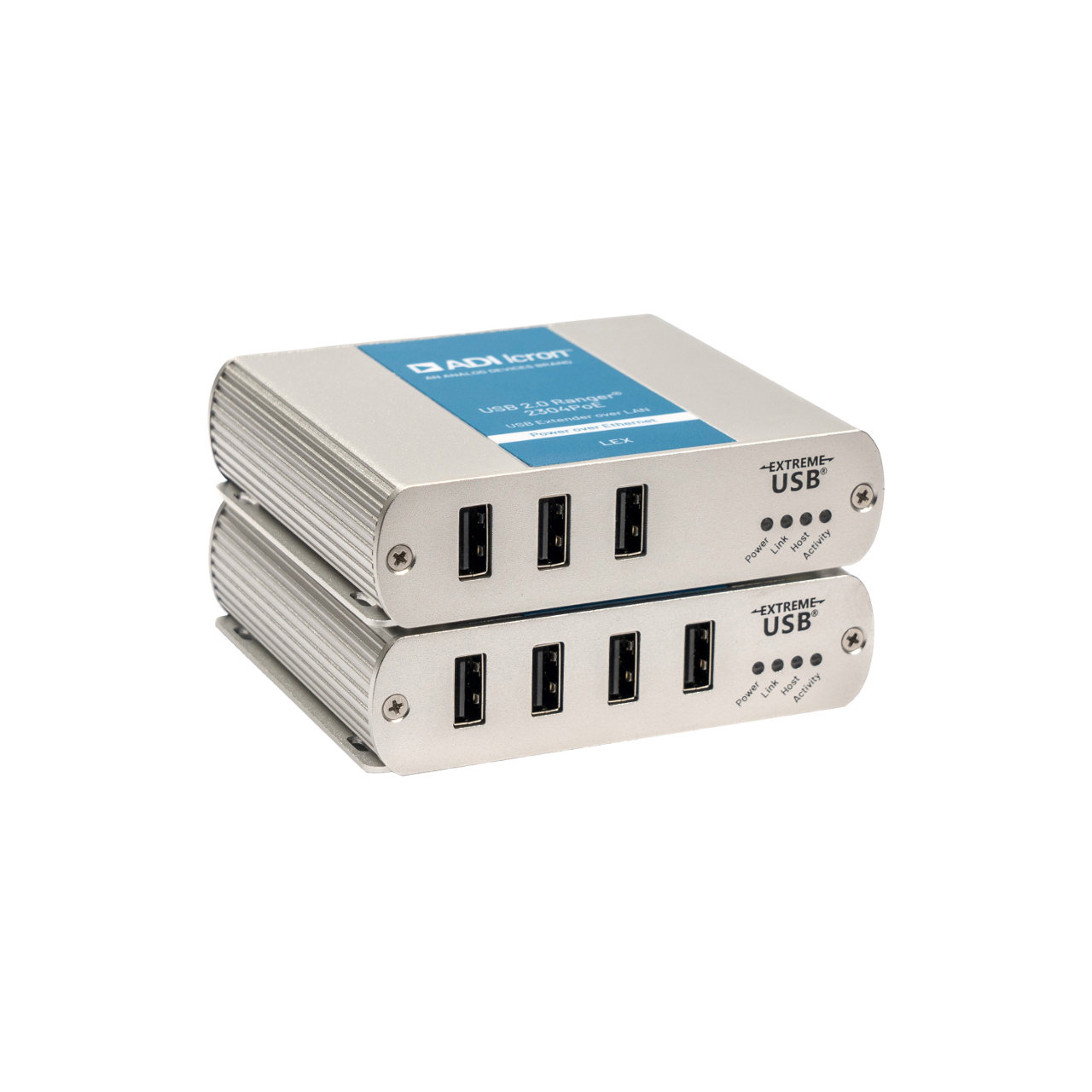

Icron 2304POE USB 2.0 Ranger 4-Port Power Over Ethernet LAN Extender System up to 328 Feet/100 Meters

2304POE - Overview

• Features:

  • Supports IEEE 802.3at, PoE+ (25.5W)
  • Extends USB through a PoE+ capable 100Mbps or 1000Mbps LAN
  • Optional power supply connection provided to facilitate backup power options.
  • Extends USB 2.0 and 1.1 (both low-speed and full-speed) devices
  • Operates with USB 3.0, 2.0 and 1.1 hosts
  • Supports all USB compliant peripherals (including isochronous devices, such as webcams or audio devices) up to 480Mbps
  • Uses a standard solid core CAT 5e/6/7 cable for easy installation or existing LAN infrastructure
  • Pre-paired networked configuration for simple installation
  • Number of devices can be increased using additional USB hubs
  • FCC Class A
  • Rugged metal enclosure
  • ExtremeUSB suite of features
    - Transparent USB extension
    - True plug and play; no software drivers required
    - Works with all major operating systems: Windows, macOS, Linux and Chrome OS


• Specifications:

  • Extender Units
  • USB Connectors: LEX (Local Extender): 3x USB Type A Receptacles, 1x USB Type B Receptacle REX (Remote Extender): 4x USB Type A Receptacles
  • Link Connector: 1x RJ45
  • Dimensions (WxDxH): 3.94" x 3.39" x 1.02" (100mm x 86mm x 26mm)
  • Enclosure Material: Silver Anodized Aluminum
  • Available Current: Supplies up to 1.5A at each port, 3.5A total
  • Power Supply: 100-240V AC Input, 24V 1A DC Output (Optional, sold separately)

    Range

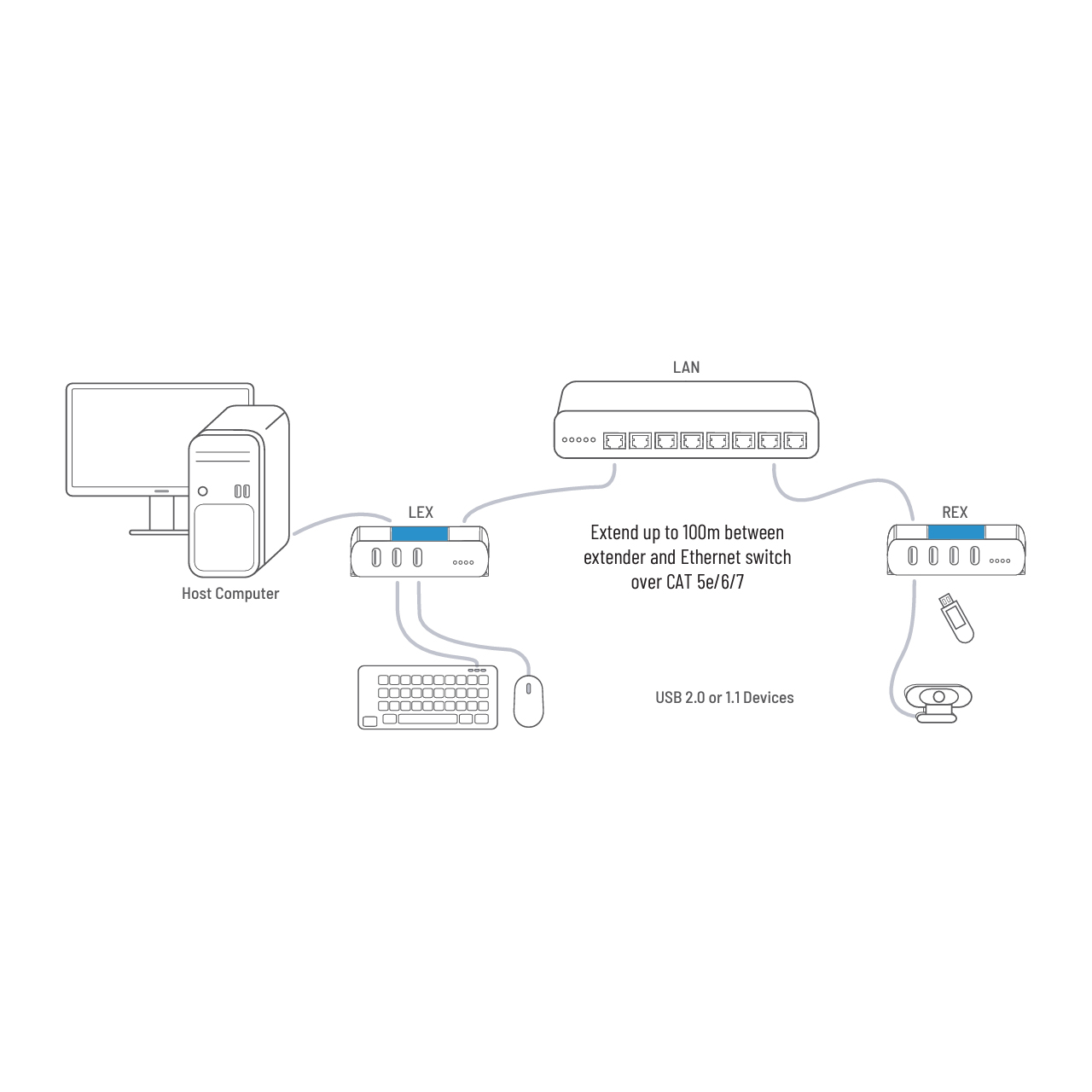

  • Direct Connect: Up to 100m (330 ft) over solid core CAT 5e/6/7
  • Network Connect: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7

    USB Device Support
  • Network and Direct Connect: Up to 480Mbps
  • Traffic Types: All USB 2.0 Traffic Types
  • Device Types: All USB 2.0 Device Types
  • Maximum Devices: Supports up to 30

    Networking
  • Standards: 1000BASE-T, IEEE 802.3at PoE+ (25.5W)
  • Data Traffic: Layer 2

    Environmental
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
  • Operating Temperature: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing


• Item Includes:

  • 1x Local Extender (LEX)
  • 1x Remote Extender (REX)
  • 1x 2-meter USB cable
  • 1x Quick Start Guide


• Warranty:

  • 2-Year Warranty
