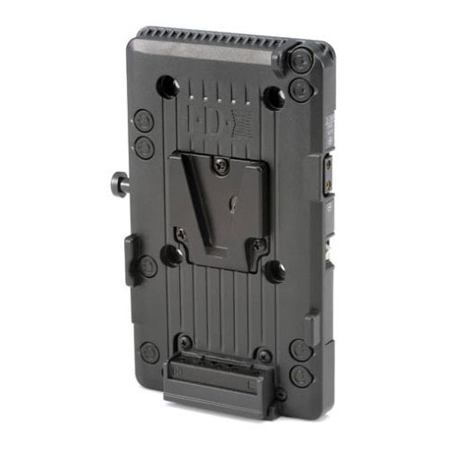

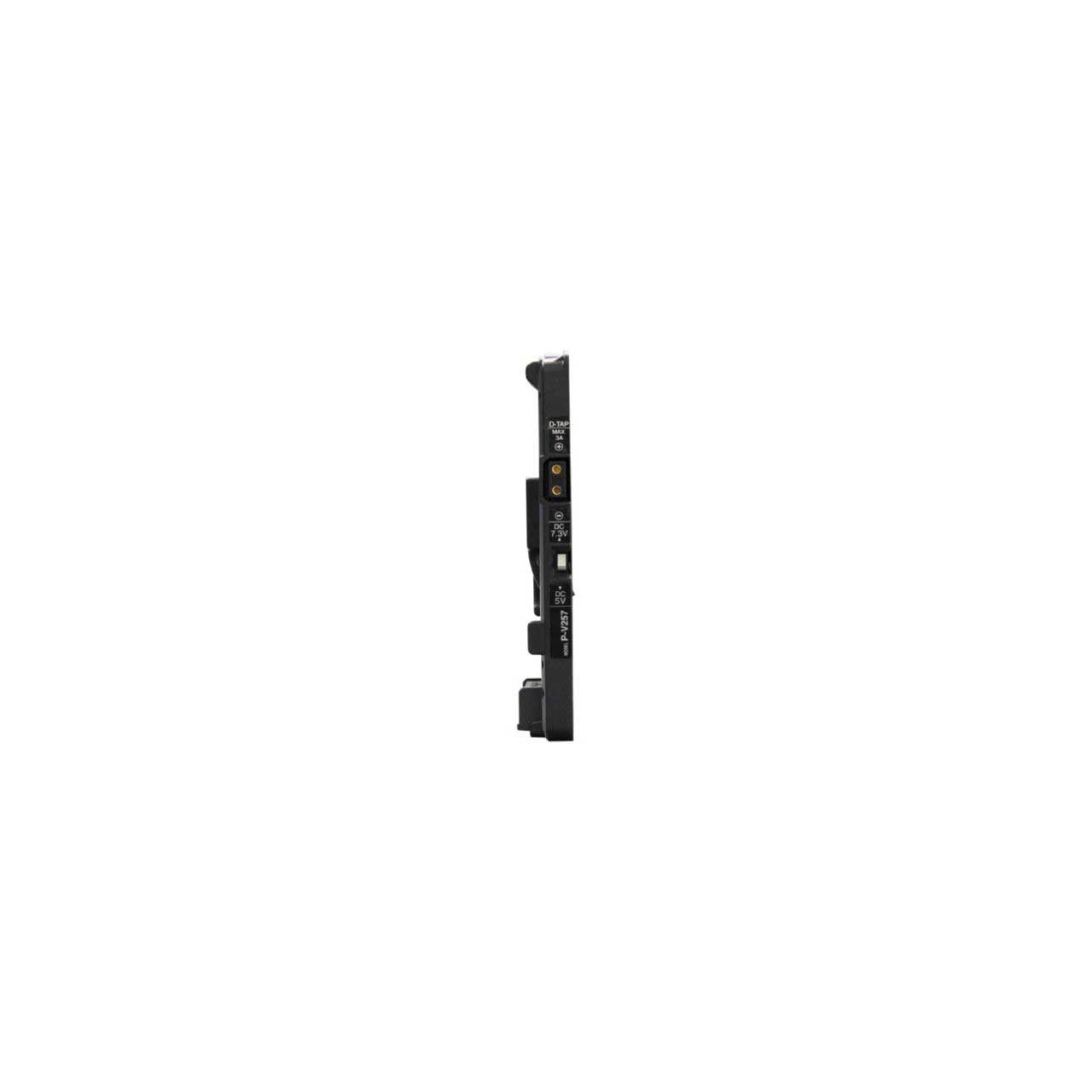

IDX P-V257 ENDURA V-Mount Adapter Plate with Regulated 5/7V D-Tap

P-V257 - Overview

• Features:

  • Allows direct mounting of IDX ENDURA batteries to the back of a wide range of professional 12V cinema cameras (i.e. select Sony, AJA, Panasonic, JVC & Ikegami cameras).
  • (1) 50W D-Tap Output (unregulated) available for powering cameras, onboard recorders, lights, monitors, ect.
  • (1) 50W D-Tap Output (regulated 5V/7.4V via switch) available for powering select cameras(can be combined with the following cables to power the following cameras, C-EOSC - use with Canon EOS Series 7D/5D Mark II, C-JVCC - use with JVC GY-HM Series, C-PANCAVC - use with Panasonic HMC Series & AG-AF100, C-PANCP2 - use with Panasonic HPX, HVX Series C-CANC - use with Canon XL, XH Series).
  • Able to be mounted onto the IDX A-CP(A), TA-CA2 or any other mounting plates on industry standard rail systems.
  • Multiple mounting holes for universal camera connection.
  • Digital battery capacity data from the ENDURA ELITE and E-HL9 can be transferred through the P-V2 to compatible viewfinders found in most cameras. For accuracy and detail, remaining capacity is shown in steps of 1%.
  • Precise tooling and high-grade components enhance a design that offers a secure lock onto the battery for an exact fit connecting the mount's power terminals.
  • Pre-wired power connectors fitted as standard, eliminating the need for manual screw connection.


• Specifications:

  • Maximum D-Tap Output 1: 21W, 5V or 7V regulated
  • Maximum D-Tap Output 2: 50W, 12~16.8V unregulated
  • Dimensions: 3.25(W) x 5.59(H) x 0.47(D) inches
  • Weight: 0.40 lbs approx.
  • Included Accessories: (4x) M3 x 8 screws


• GTIN:

  0825781012352
