Iogear GCS1108KIT1 8-Port DVI KVMP Switch Kit

PL1381 - Overview

• Features:

  • One USB console controls eight DVI computers
  • Superior video quality: 1920x1200 (Single Link DVI), DDC2
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux, Mac, Sun
  • Computer selection via front panel pushbuttons, hotkeys, and on-screen display (OSD)
  • Includes two USB 2.0 peripheral sharing ports
  • Independent switching of KVM and USB focus
  • Two-level (Administrator / User) password authorization for enhanced security protection
  • Cascadable to three levels - control up to 512 computers
  • IOGEAR's DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • Audio enabled - Full bass response provides a rich experience for 2.1 channel surround sound systems
  • Complete keyboard emulation for error-free booting
  • Console mouse port emulation / bypass feature supports most mouse drivers and multifunction mice
  • Mac / Sun keyboard support and emulation**
  • Auto Scan Mode for monitoring all computers
  • Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
  • Firmware upgradable
  • HDCP compatible
  • Console audio ports on front panel for easy access
  • *IOGEAR's DynaSync provides the EDID support for Windows 7


• Specifications:

  • CPU Connectors
  • Monitor 8 x DVI-I ports (female)
  • Microphone 8 x Microphone jack
  • Audio 8 x Stereo earphone jack
  • Keyboard & Mouse 8 x USB Type B sockets
  • Console Connectors
  • Mouse 1 x USB Type A socket
  • Keyboard 1 x USB Type A socket
  • Monitor 1 x VGA port (female) / 1 x DVI-I port (female)
  • Microphone 2 x Microphone jack (1 x front panel, 1 x rear panel)
  • Audio 2 x Stereo earphone jack (1 x front panel, 1 x rear panel)
  • LEDs
  • Selected 8 x Orange
  • On Line 8 x Orange
  • USB Peripherals 8 x Green
  • Power On 1 x Dark Green
  • Port Selection Front Panel Switches; Hotkey
  • Video Resolution DVI: 1920 x 1200; VGA: 2048 x 1536
  • Scan Interval 1-255 secs (Default: 5 secs)
  • Emulation
  • Keyboard USB
  • Mouse USB
  • Computer Connections
  • Direct 8
  • Daisy Chain or Cascading Up to 512 (via Cascade)
  • Operating Temperature 0 - 50 C
  • Storage Temperature -20 - 60 C
  • Humidity 0 - 80% RH
  • Peripheral Sharing 2 x USB 2.0
  • Housing
  • Case Metal
    Unit Package Dimensions
  • Height 10"
  • Depth 9"
  • Length 22"

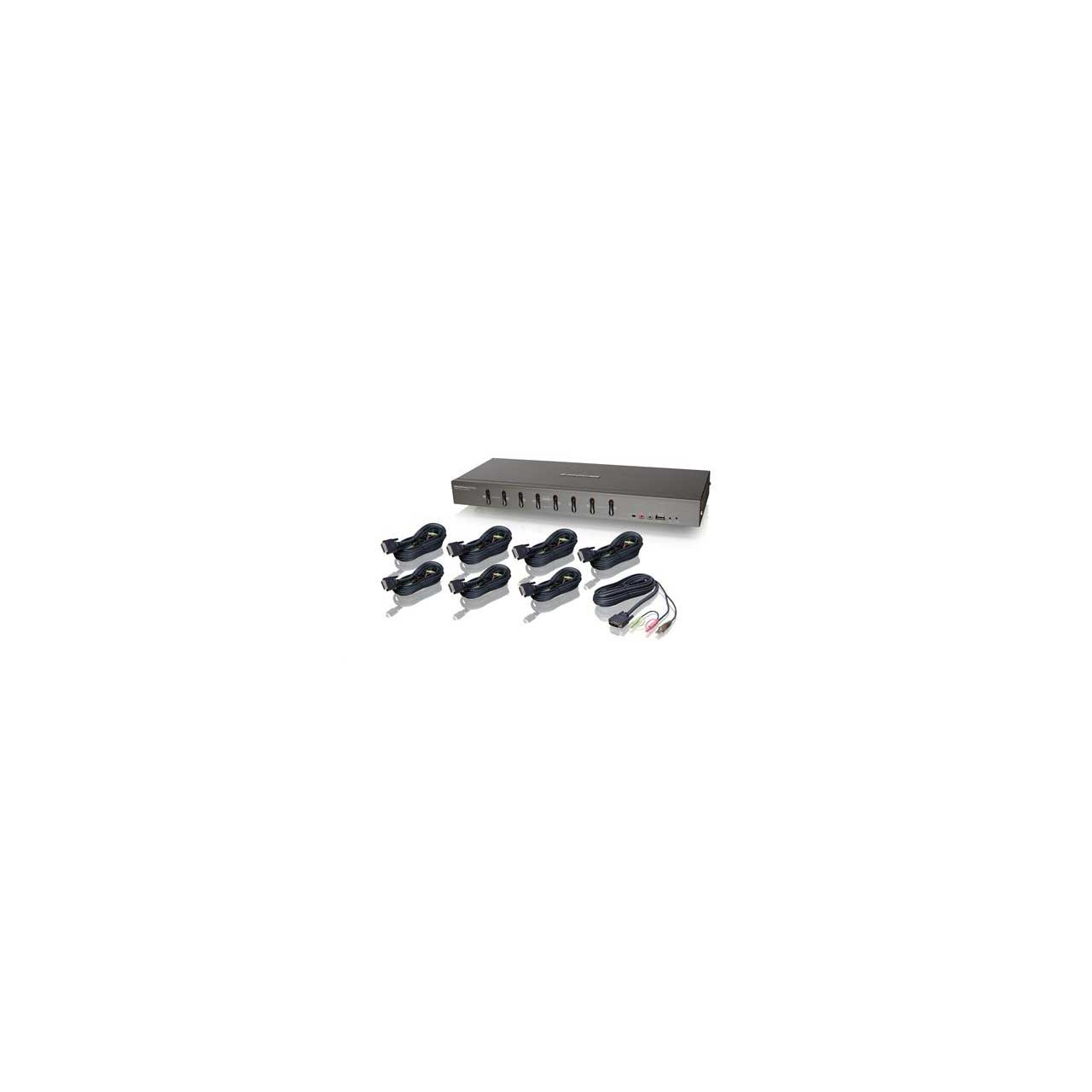

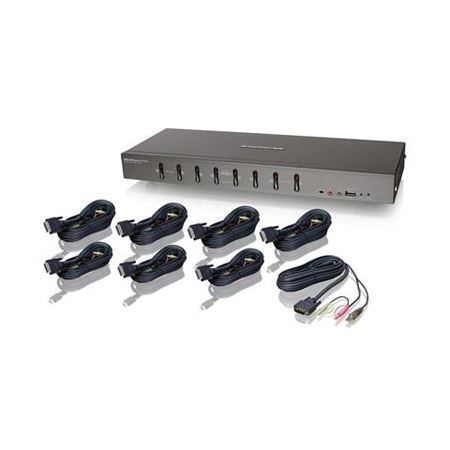

• Item Includes:

  • 1 x GCS1108 8-port USB DVI KVMP Switch
  • 4 x 6ft Single Link DVI-D USB KVM Cable
  • 4 x 10ft Single Link DVI-D USB KVM Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Foot Pad Set (4 pcs)
  • 1 x User Manual
  • 1 x Rack Mounting Kit


• GTIN:

  0881317510594
