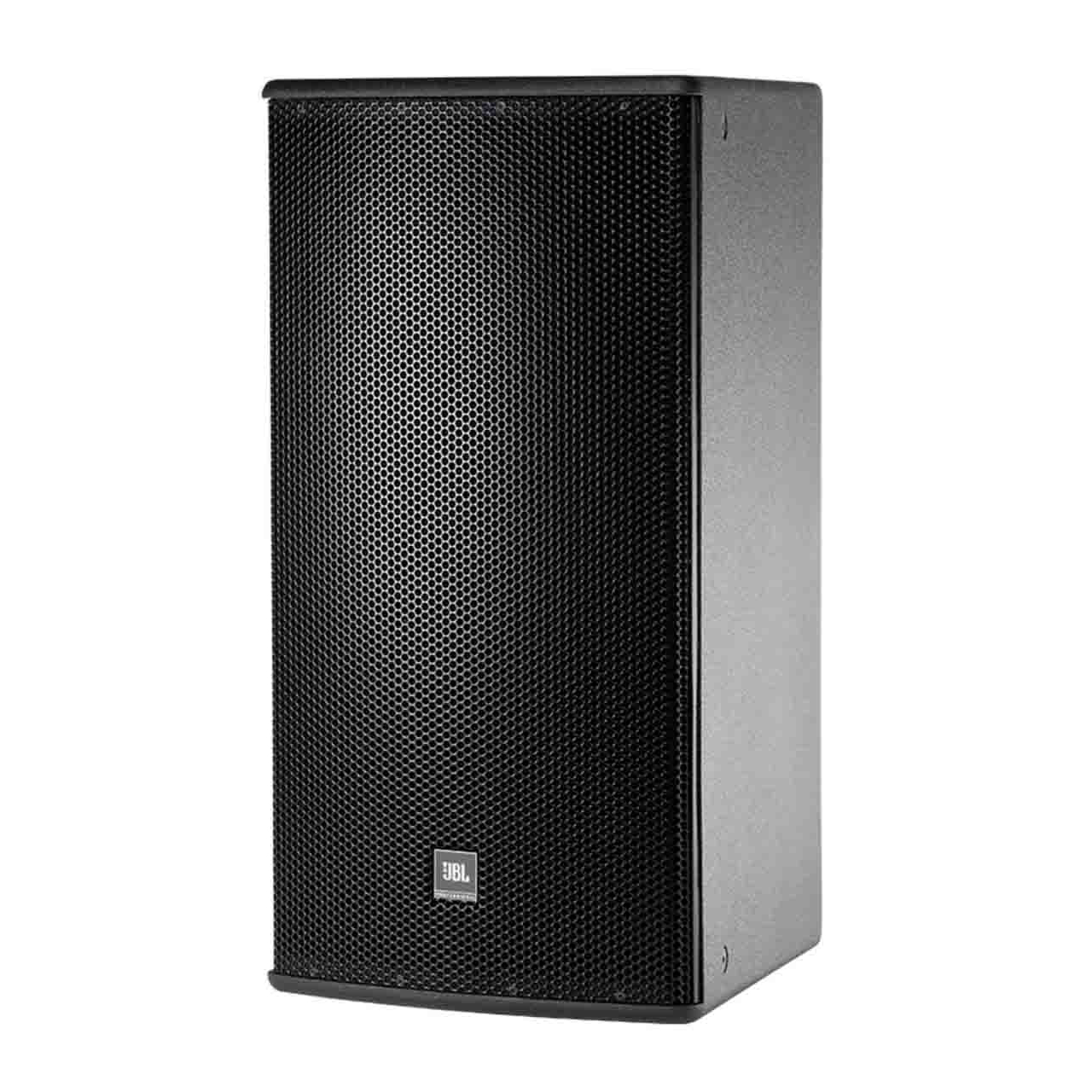

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
JBL Professional
Free Shipping with $49 Minimum Order

Our Price:

$3,690.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

AM7215/95 - Overview

High Power 15" 2-Way Loudspeaker with 90° x 50° Rotatable Horn

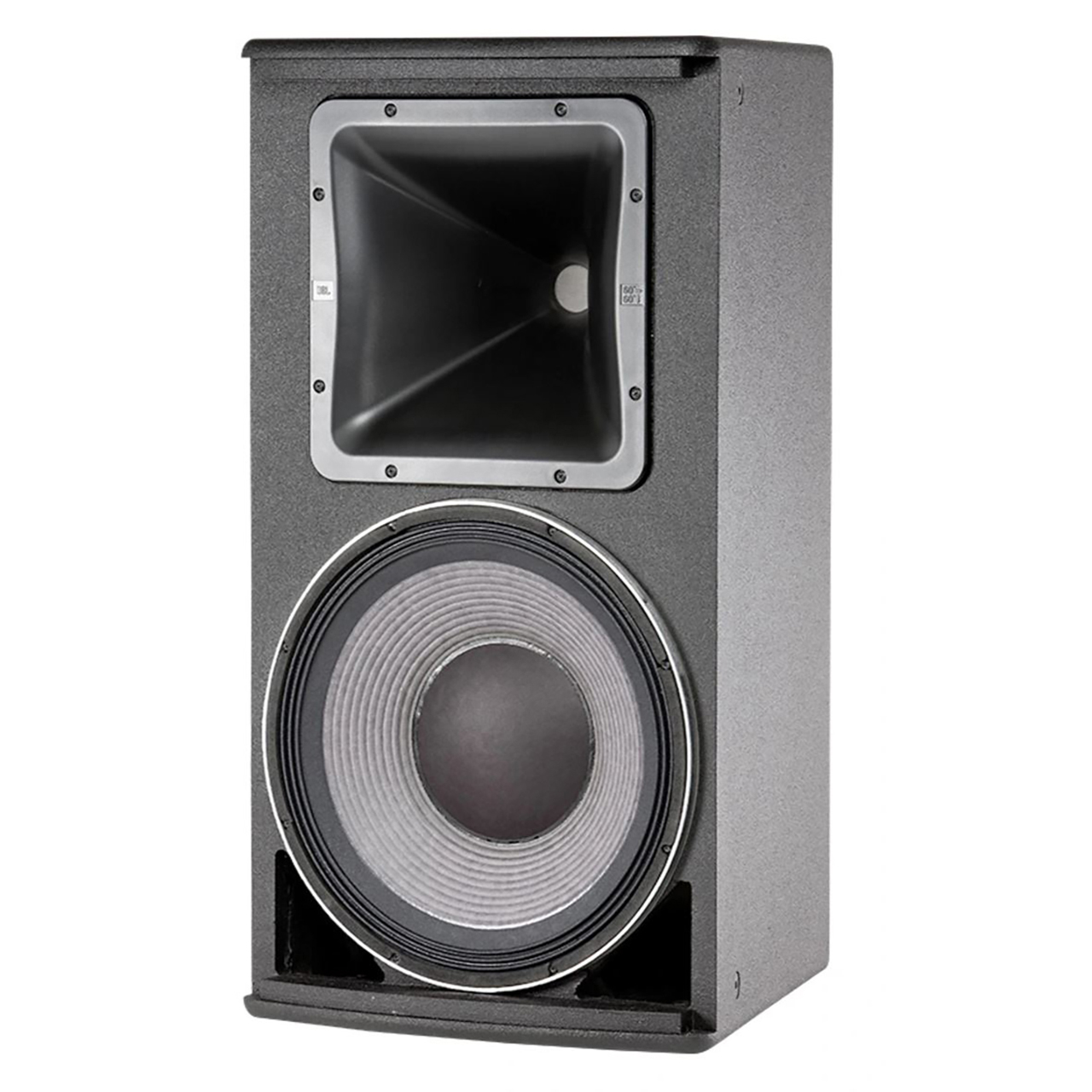

The JBL AM7215-95 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 15" (380mm) low-frequency driver and 2432H high-frequency 1.5" (38mm) exit, 3" (75mm) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Applications
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues

  • Features:

    • 90° x 50° Coverage
    • 2265H Differential Drive® Low- Frequency Driver
    • 2432H High-Frequency Compression Driver
    • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
    • Rotatable waveguide for vertical or horizontal orientation
    • Bi-Amp/Passive Switchable
    • Available in Black, White and WRC/WRX finishes


  • Specifications:

    • Frequency Range (-10dB): 34Hz - 20kHz
    • Frequency Response (±3dB): 40Hz - 20kHz
    • Coverage:
      - /64: 60° x 40°
      - /66: 60° x 60°
      - /95: 90° x 50°
      - /26: 120° x 60°
    • LF Driver: 1x JBL 2265H 15" (380mm) Differential Drive® driver with 3" (75mm) dual voice coil
    • HF Driver: JBL 2432H, 1.5" (38mm) exit compression driver, 3" (75mm) voice coil
    • System Type: 15" Two - Way, High Power, Full - Range
    • Dimensions (HxWxD): 30.8" x 16.5" x 19.8" (781m x 420mm x 503mm)
    • Net Weight (each): 60lbs (27.2kg)
    • Crossover Modes: Bi-amp/Passive switchable
    • Passive Crossover Frequency: 1.8kHz
    • Transducer Power Rating (AES):
      - LF: 1000W (4000W peak), 2 hrs; 750W (3000W peak), 100 hrs
      - HF: 100W (400W peak), 2 hrs
    • System Power Rating: Passive mode: 600W (2400W peak), 100 hrs
    • Maximum SPL (1m):
      - Bi-Amp Mode: LF: 128dB-SPL cont avg (134dB peak); HF: 135dB-SPL cont avg (141dB peak)
      - Passive Mode: 124dB-SPL cont avg (130dB peak)
    • System Sensitivity (1w @ 1m): Passive mode: 96dB SPL
    • Nominal Impedance: 8Ω
    • System Power Rating: Passive mode: 600W (2400W peak), 100 hrs (IEC rated)
    • Nominal LF Driver Impedance: 8Ω
    • Nominal HF Driver Impedance: 8Ω
    • Enclosure: Trapezoidal with 15° side angles, 5/8" (16mm) exterior grade 11-ply Finnish birch plywood
    • Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
    • Environmental: Mil-Std 810; IP-x3 per IEC529
