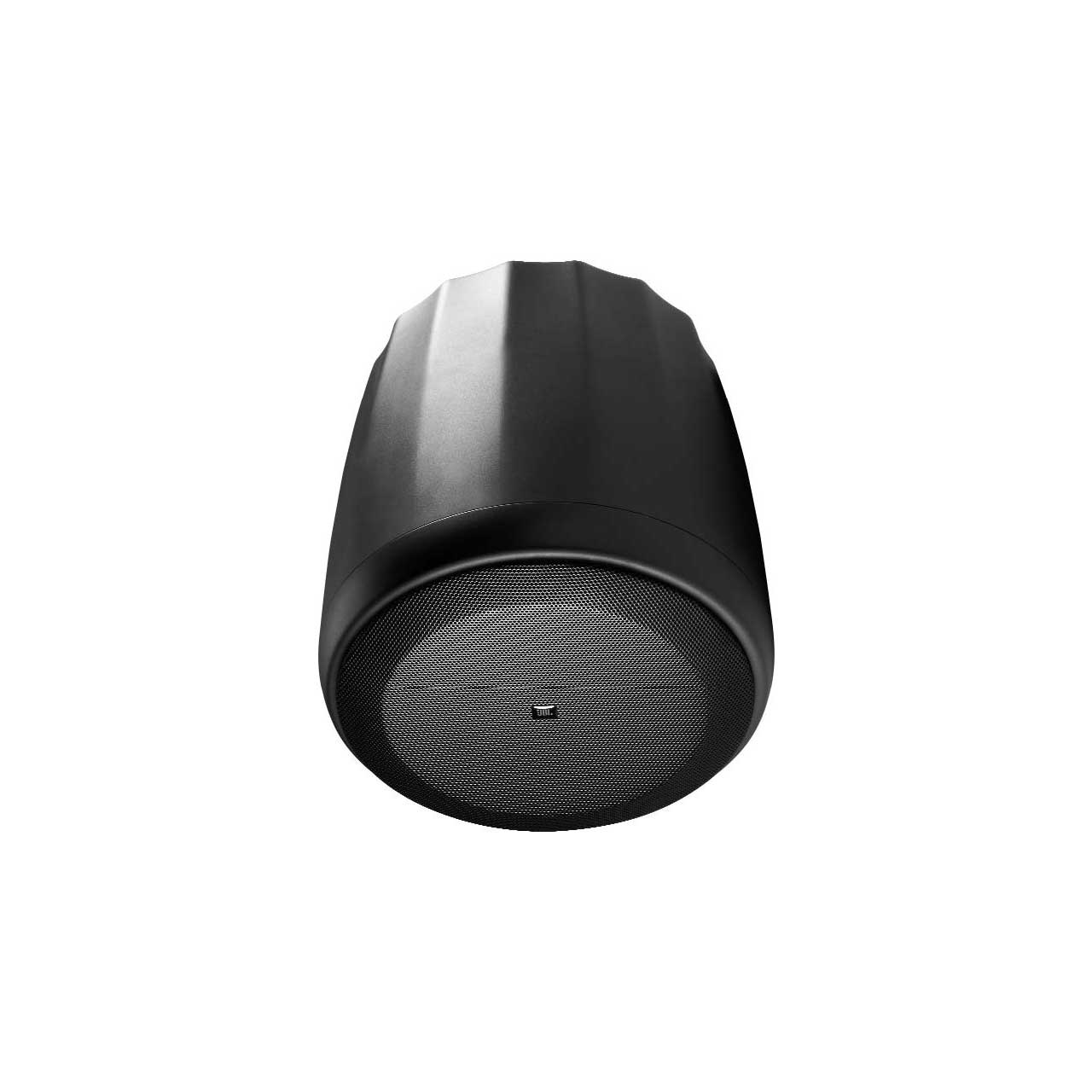

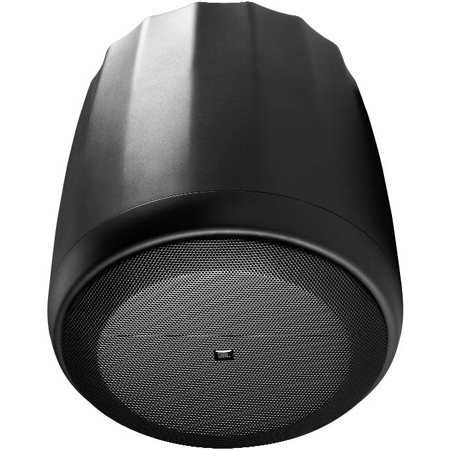

JBL C67HC/T Narrow-Coverage High Ceiling Pendant Loudspeaker w/RBI- Black (PAIR)

C67HC/T - Overview

• Features:

  • RBI Radiation Boundary Integrator Technology
  • Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
  • 6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
  • High 93 dB sensitivity
  • 75 Watts, 8 ohms and 60W multi-tap transformer
  • Black or white


• Specifications:

  • Frequency Response (-10 dB) 75 Hz - 17 kHz
  • Frequency Range (±3 dB) 110 Hz - 16 kHz
  • Power Capacity 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
  • 150 Watts Continuous Program Power
  • Nominal Sensitivity 93 dB
  • Nominal Coverage Angle 75° (+15°/-20°)
  • Directivity (Q) 10.4
  • Directivity Index (DI) 9.8 dB
  • Rated Maximum SPL @ 1m 112 dB continuous pink noise, 118 dB peak
  • Rated Impedance 8 ohms
  • Transformer Taps 70V: 60W, 30W, 15W & 7.5W
  • 100V: 60W, 30W, 15W
  • Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
  • LF Driver 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround,
  • 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former HF Driver 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
  • Enclosure Material High impact polystyrene
  • Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable
  • for painting)
  • Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating.
  • Termination Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
  • Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and GrippleT brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
  • Safety Agency Ratings Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Grippler-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
  • Dimensions 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
  • Net Weight (ea) 5.9 kg (13 lbs)
  • Shipping Weight (pair) 14.1 kg (31 lbs)
  • Included Accessories Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
  • Optional Accessories MTC-PC60HC top panel / terminal cover
  • Colors Available in black or white (-WH). Paintable.


• GTIN:

  0050036903875
