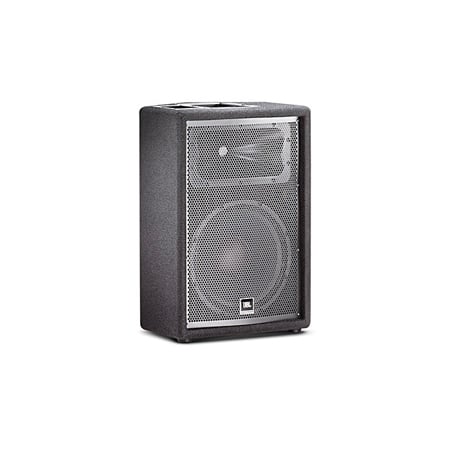

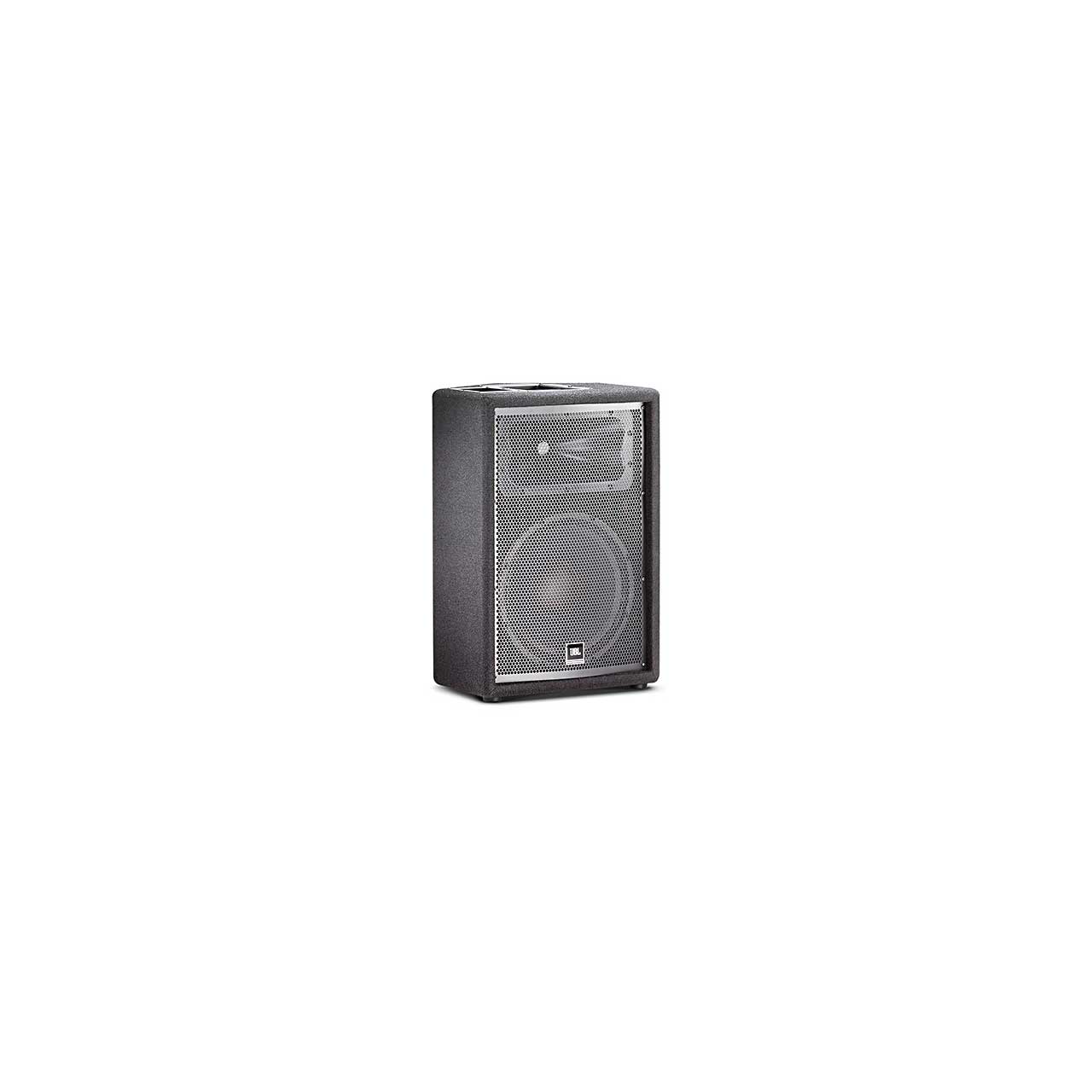

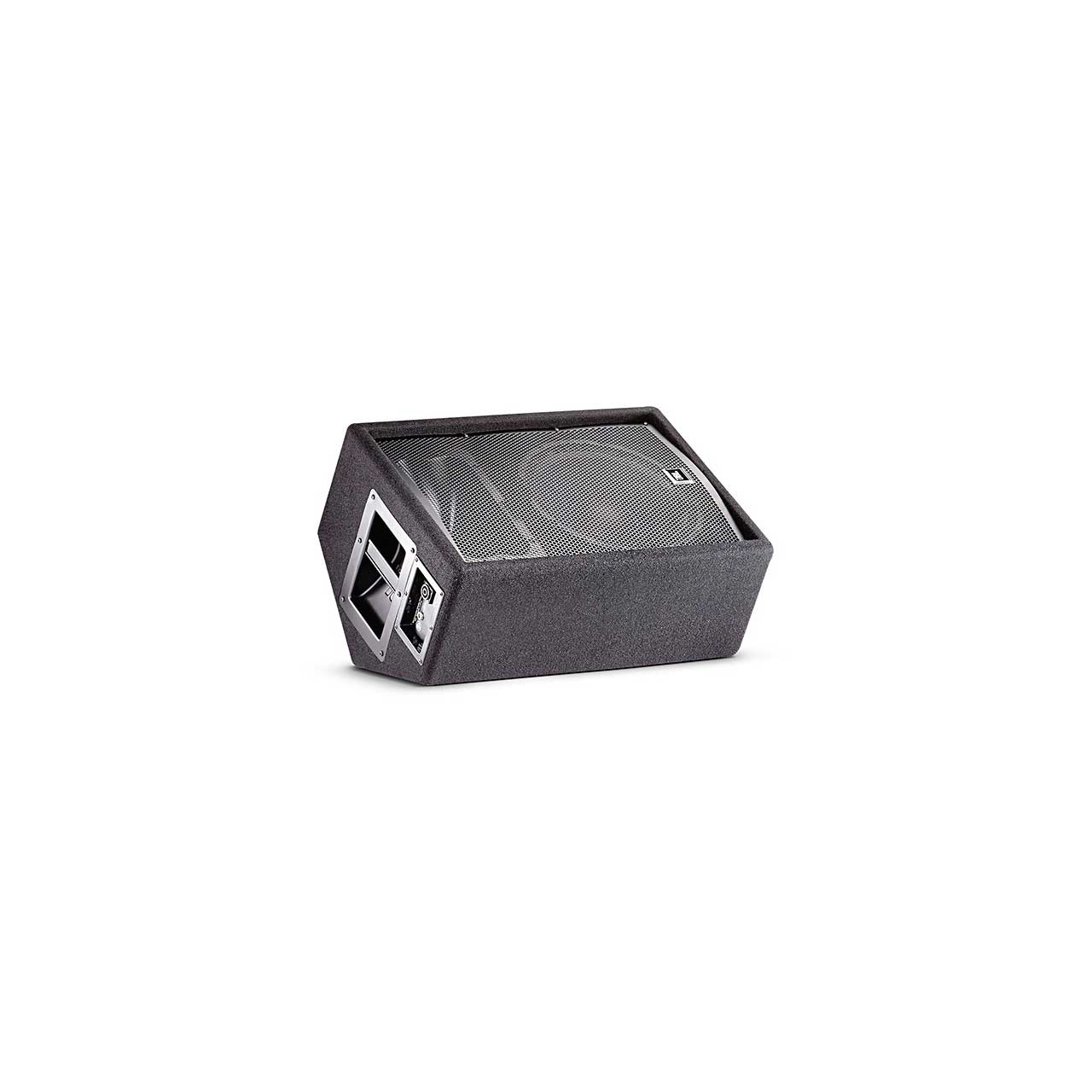

JBL JRX212 12 Inch Two-Way Stage Monitor Loudspeaker System

JRX212 - Overview

• Features:

  • JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard protects the high frequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.


• Specifications:

  • Power Rating 250 W / 1000 W
  • Frequency Range (-10 dB) 60 Hz - 20 kHz
  • Frequency Response (±3 dB) 80 Hz - 18 kHz
  • Sensitivity (@1m) 98 dB SPL (1w/1m)
  • Nominal Impedance 8 ohms
  • Recommended Amplifier Power 250 W to 500 W into 8 ohms
  • Maximum SPL 128 dB
  • Nominal Dispersion 90§ x 50§
  • Crossover Frequency 2.1 kHz
  • Dimensions
  • (H x W x D) 584 mm x 399 mm x 325 mm
  • (23 in x 15.7 in x 12.8 in)
  • Weight 19.5 kg (43 lb)
  • High Frequency Driver JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition Waveguide
  • Low Frequency Driver JBL M112-8

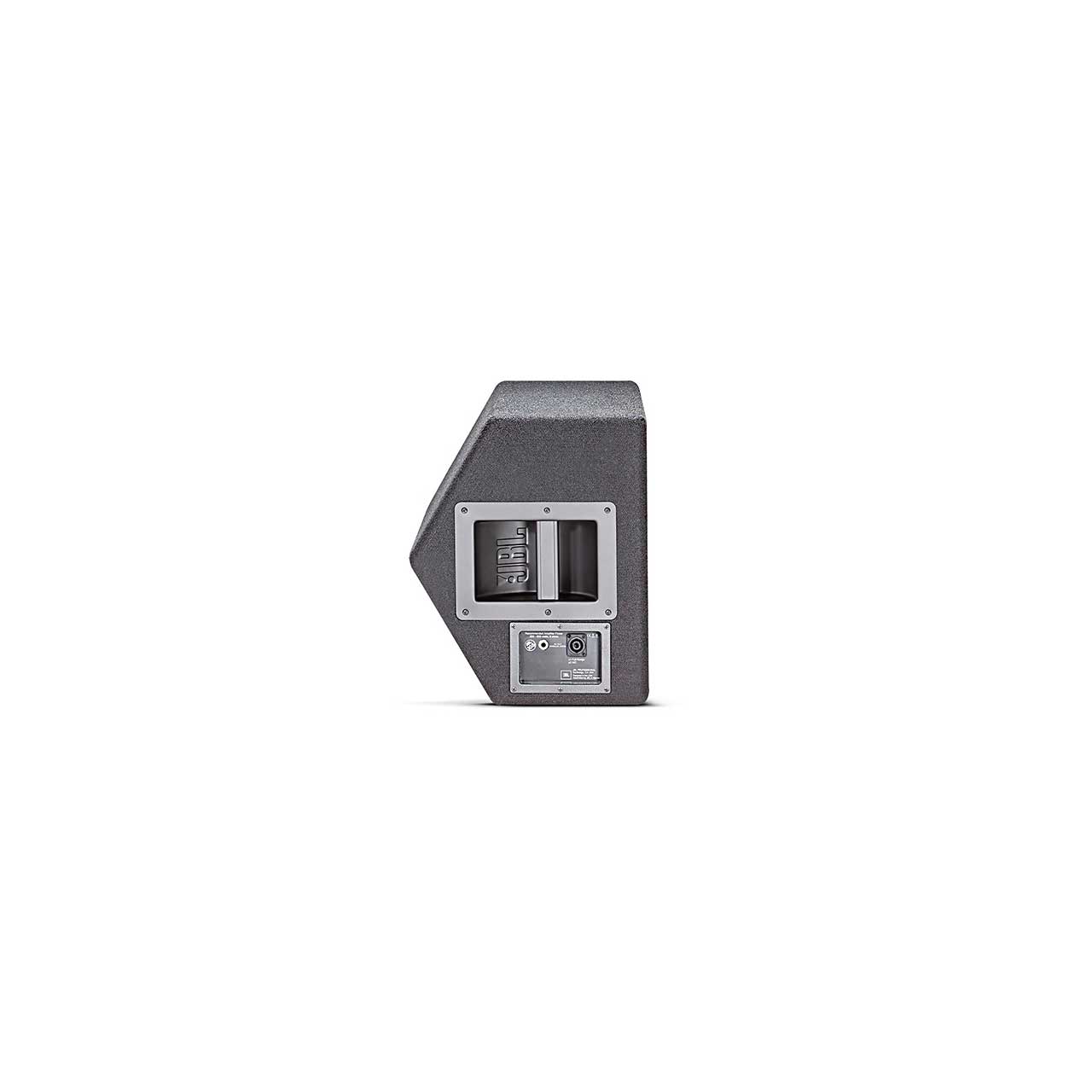

  • Input Connectors Neutrik Speakon NL-4 (x1); .25 in
  • TS phone jack (x1); parallel


• GTIN:

  0050036904490
