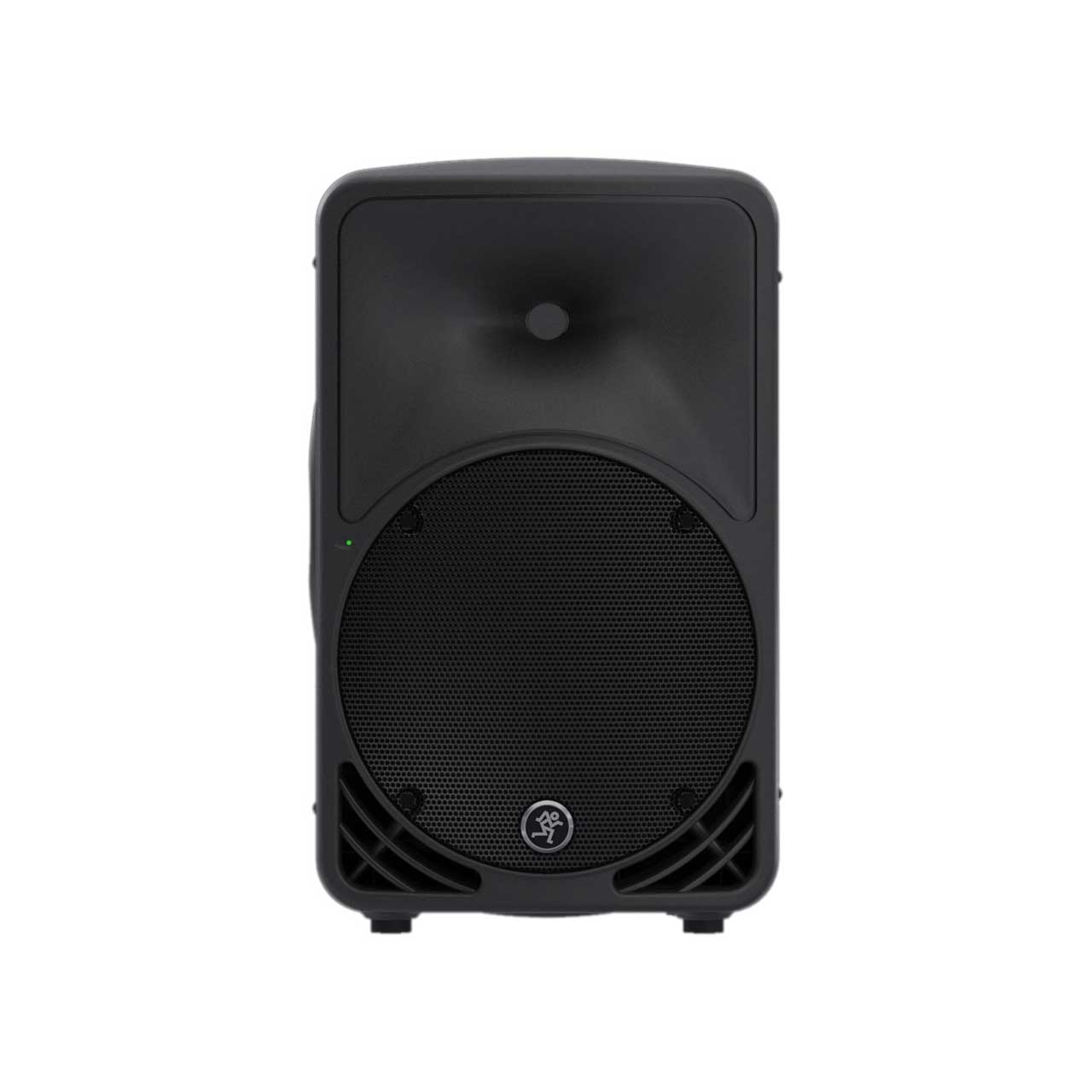

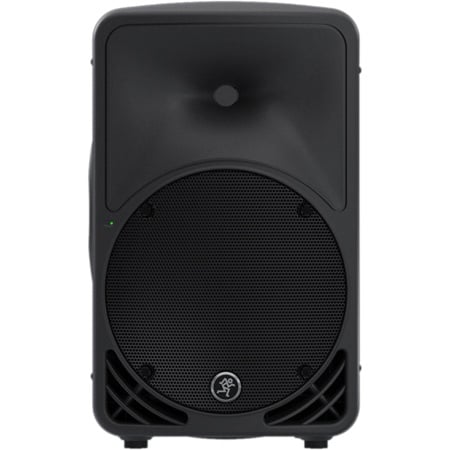

Mackie SRM350V3 10 Inch 2-Way Compact Powered Loudspeaker

SRM350V3 - Overview

• Features:

  • 1000W system power paired with custom transducers deliver gig-level volumes with room to spare with a 10" high-output LF driver and 1.4" titanium dome compression driver
  • High-Definition Audio Processing for professional sound with unmatched clarity
  • Quick one-button Speaker Mode selection for application-specific voicing (PA, DJ, Monitor and Soloist)
  • Effortlessly eliminate nasty feedback with one-button automatic Feedback Destroyer

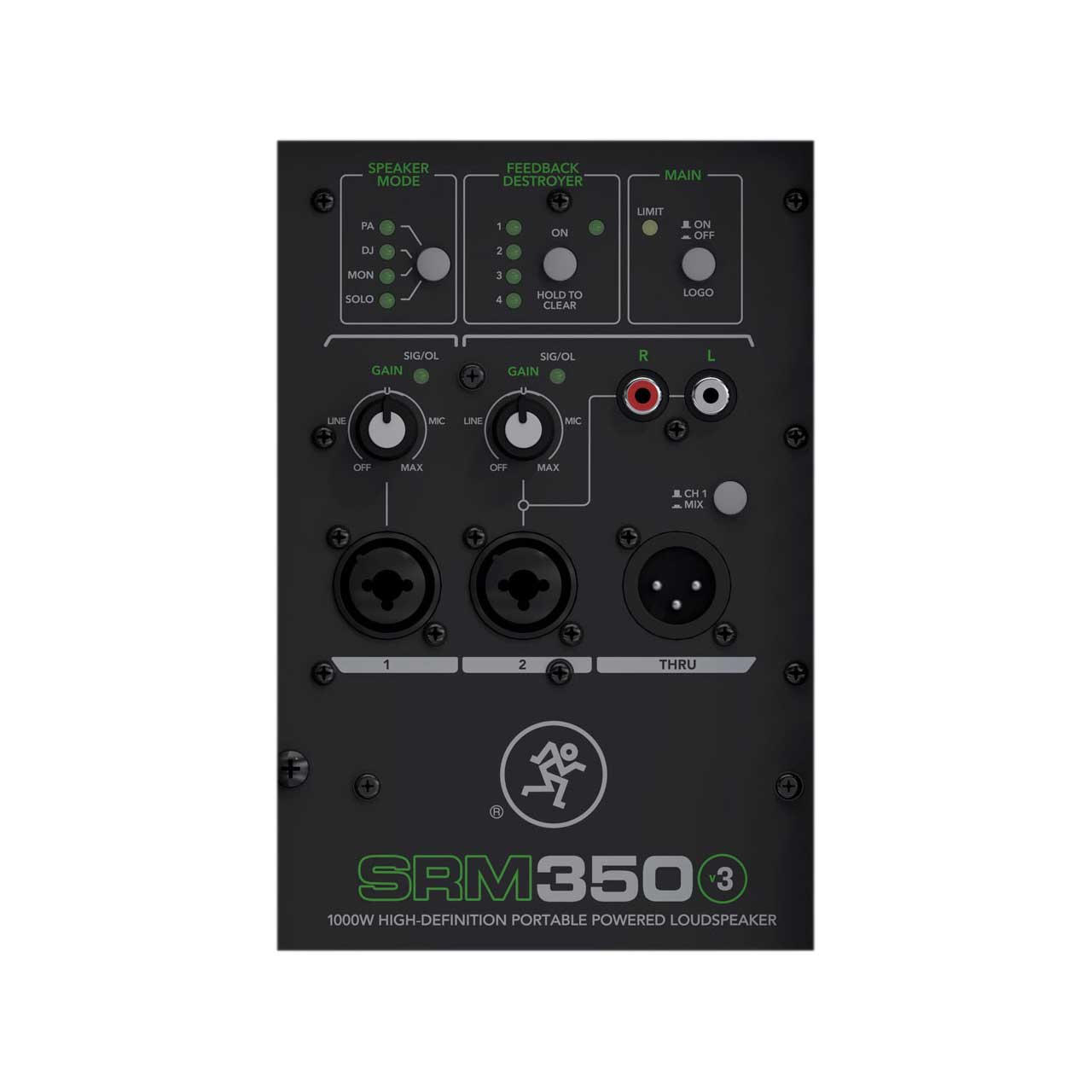

  • Integrated 2-channel mixer featuring dual Wide-Z™ inputs
  • Smart Protect™ DSP kicks in to protect your investment when things get pushed a little too hard

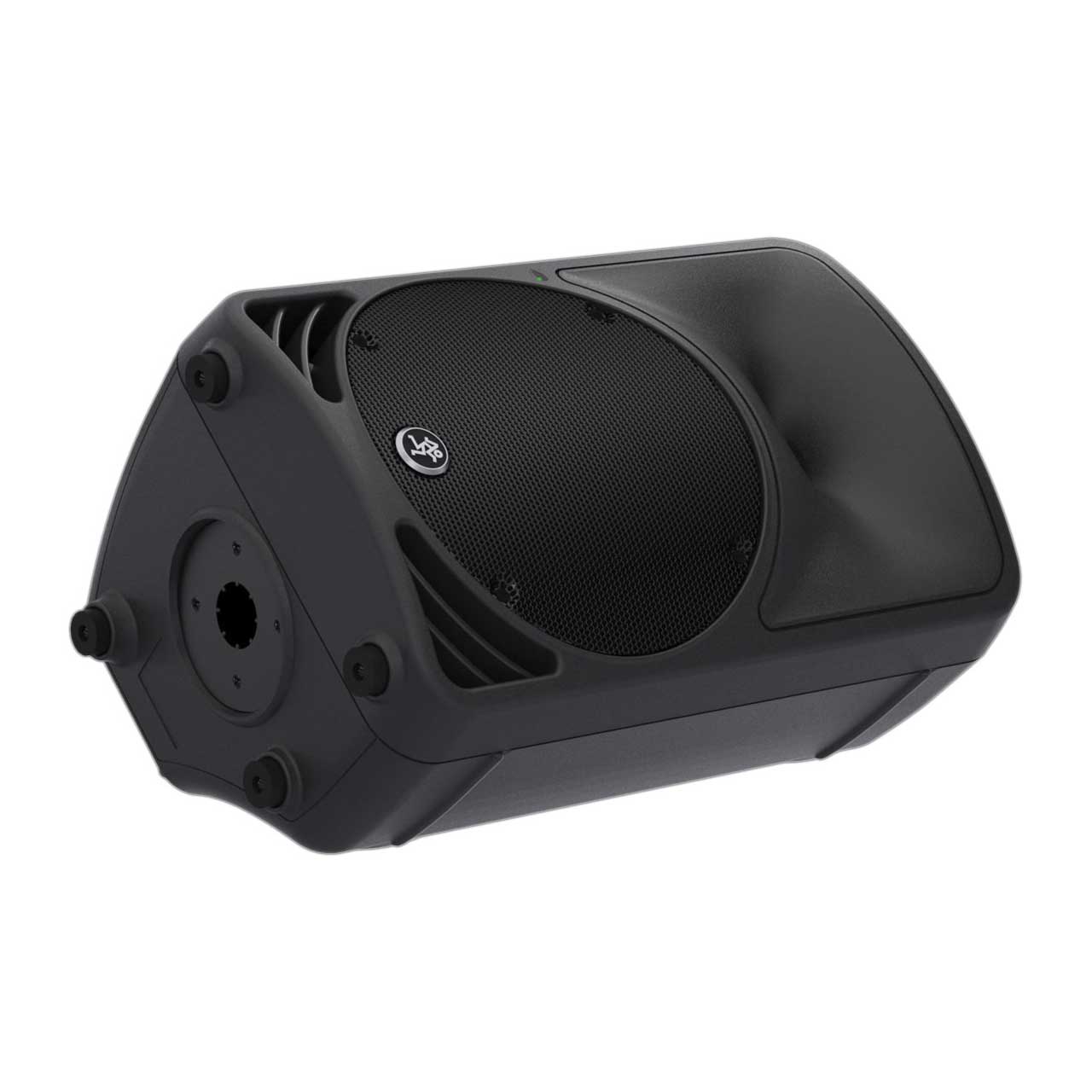

  • Monitor-specific angle and voicing mode perfect for cutting through on stage
  • Flyable for permanent install
  • Proven highly-durable, portable design

    **NOTE** Floor mount, pole mount or fly via optional bracket.


• Specifications:

  • Acoustic Performance
  • Frequency Response (-3dB): 55Hz - 20kHz
  • Frequency Response (-10dB): 50Hz - 23kHz
  • Max peak SPL: 126dB
  • Crossover Point: 3kHz
  • Dispersion (HxV): 90° x 80°

    High-Frequency Section
  • Compression Driver: 1.4"
  • Diaphragm Material: Titanium
  • Magnet Material: Ferrite

    Low-Frequency Section
  • Woofer Diameter: 10"
  • Cone Material: Paper
  • Magnet Material: Ferrite

    Power Amplifier
  • System Rated Power: 500W RMS, 1000W Peak
  • HI/LO Freq. Rated Power: 100W/400W RMS, 200W/800W Peak
  • HI/LO Freq. Rated THD: <1%
  • HI/LO Freq. Cooling: Convection
  • HI/LO Freq. Design: Class AB/Class D

    Channel 1 Input/Output
  • Mic-Line: 8kΩ balanced
  • 1/4" TRS, Wide-Z™: 1MΩ unbalanced

    Channel 2 Input/Output
  • Mic-Line: 8kΩ balanced
  • 1/4" TRS, Wide-Z™: 1MΩ unbalanced
  • RCA: 25Ω unbalanced
  • Thru: Male XLR balanced

    Power
  • Detachable Line Cord: 100 - 120V AC, 50 - 60Hz, 160W
  • AC Connector: 3-pin IEC 250V AC, 10A male
  • Power Supply Type: Switchmode
  • Operating Temperature: 32°F - 104°F

    Safety Features
  • Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection
  • Display LEDs: Defeatable front power, Input signal/OL, Speaker Mode, Feedback Destroyer ON/OFF and Active Filters, System Limiter

    Construction Features
  • Cabinet: Polypropylene
  • Finish: Black, textured finish
  • Grille: Perforated metal with weather-resistant coating
  • Monitor Angle: 50°

    Physical
  • Dimensions (HxWxD): 20.8" x 13.1" x 12.3"
  • Weight: 23lbs


• Warranty:

  • 3-year inclusive of electronics, 2-year drivers (where applicable), nontransferable


• GTIN:

  0663961044157
