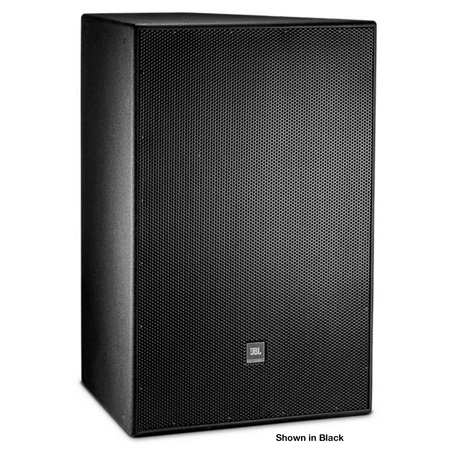

JBL PD6212-95-WH 12 Inch Two-Way Horn-Loaded Loudspeaker - White

PD6212-95-WH - Overview

• Features:

  • 300 mm (12 in) horn-loaded LF and largeformat HF driver - high sensitivity design with high continuous SPL capability
  • Large PT™ Progressive Transition™ waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response
  • Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation
  • Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes


• Specifications:

  • Frequency Range: 80 Hz to 18 kHz (-10 dB)
  • Frequency ResponseL 90 Hz to 16 kHz ( ± 3 dB)
  • Coverage Pattern: /43: 40° x 30°; /64: 60° x 40°; /66: 60° x 60°; /95: 90° x 50°
  • Crossover Modes: Bi-amp / Passive switchable
  • Passive Crossover: 6th order (36 dB/oct) Linkwitz-Riley HP & LP, 850 Hz
  • Transducer Power Rating (AES): LF: 400 W (1600 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs; HF: 75 W (300 W peak), 2 hrs
  • Long-Term System Power Rating (IEC): Passive Mode: 300 W (1200 W peak), 100 hrs
  • Maximum SPL: LF: 137 dB-SPL; HF: 135 dB SPL (141 dB peak)
  • Passive Mode: 134 dB SPL (140 dB peak)
  • System Sensitivity: Passive Mode: 109 dB-SPL
  • Low Frequency Driver: M222-8A 300 mm (12 in) driver with 75 mm (3 in) voice coil
  • High Frequency Driver: 2453H, 38 mm (1.5 in) exit compression driver with 100 mm (4 in) voice coil
  • Nominal Impedance: 8 ohms
  • Enclosure: Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
  • Suspension Attachment: 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware
  • Finish: Black DuraFlex™ finish. White (-WH) available upon request.
  • Optional Weather Resistant Versions: WRC for outdoor placement where the loudspeaker will be sheltered from direct exposure to the elements.
  • Grille: Powder coated 14 gauge perforated steel, zinc-phosphate dipped, foam
  • Input Connectors: Neutrik Speakon® NL4, plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
  • Dimensions (H x W x D in vertical orientation): 991 x 673 x 897 mm (39 in x 26 in x 35 in)
  • Net Weight: 79.5 kg (175 lb)
