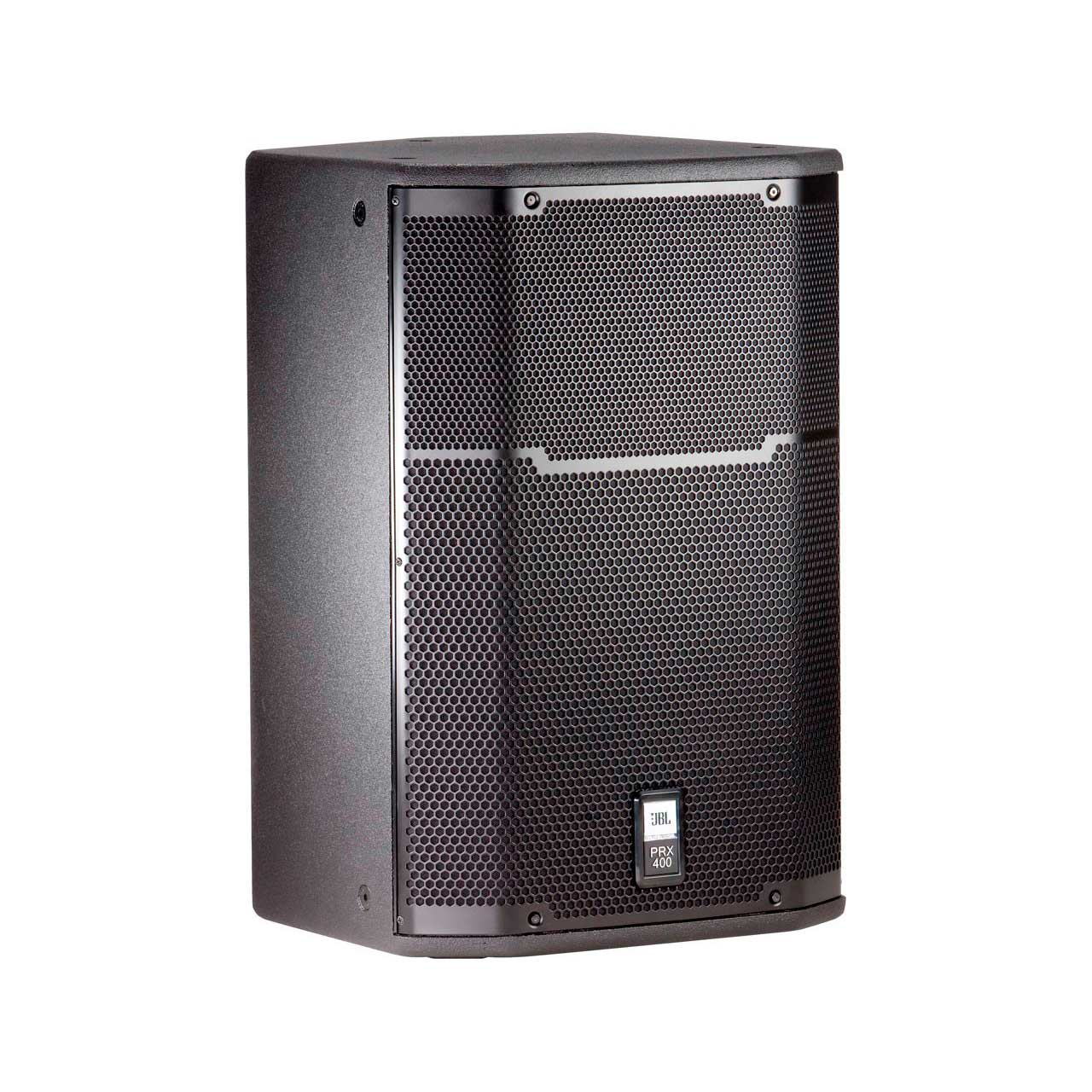

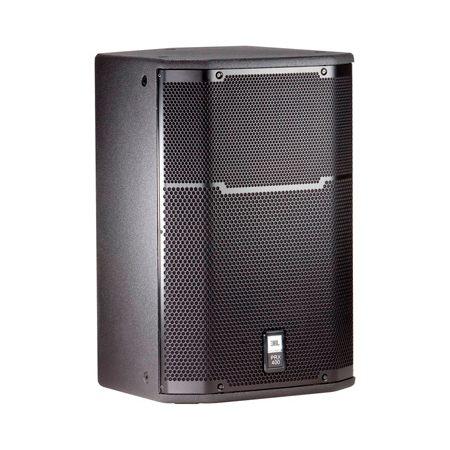

JBL PRX415M 15 Inch Two-Way Stage & Utility Monitor (Each)

ITEM #: JBL-PRX415M MFG #: PRX415M

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$914.76

Our Price:

$759.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


PRX415M - Overview

15" Two-Way Stage Utility/Monitor

JBL PRX415M 15" two-way stage monitor or front- of- house passive speaker system; 1200 Watt peak power handling , 129dB Maximum SPL , 8 ohms. DuraFlex-covered 18mm plywood enclosure, 16 gauge cloth-backed steel grille, dual 36 mm pole sockets, non-skid rubber feet. 12 M10 suspension points. Net Weight 21kg (46 lbs.)

Applications:
Reinforcement of music and speech in entertainment, live or pre-recorded applications
Live performance stage monitoring
High-performance satellite speaker for use with subwoofers

The PRX415M is high-power, light-weight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The PRX415M is comprised of a 380 mm (15 in) woofer which handles 300 watts (continuous) power. For the high frequencies, the 2414H-C 25 mm (1 in) polymer diaphragm compression driver is mounted to a 90° x 50° horn. For use on a tripod or over a subwoofer, JBL's dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage.

  • Features:

    • 15" high-power woofer
    • 1" polymer diaphragm compression driver
    • 90° x 50° coverage
    • Dual-angle pole socket for applications requiring tripod
    • mounting.
    • Heavy Duty 16-gauge protective screen-backed steel grille
    • Tough DuraFlex enclosure finish

  • Specifications:

    • Frequency Range (-10 dB)1: 55 Hz - 19 kHz
    • Frequency Response (±3 dB)1: 66 Hz - 16 kHz
    • Coverage Pattern: 90° x 50° nominal
    • Crossover Mode: Passive
    • Crossover Frequency: 2.2 kHz
    • Power Rating: 300 W/ 600 W/ 1200 W, 2 hrs (Continuous/Program/Peak)
    • Maximum SPL: 122 dB SPL continuous (128 dB SPL peak)
    • System Sensitivity (1w @ 1m): 98 dB SPL
    • LF Driver: 1 x JBL M115-8A 380 mm (15 in) Differential Driver woofer
    • HF Driver: 1 x JBL 2414H-C 25 mm (1 in) polymer diaphragm, compression driver
    • Nominal Impedance: 8 ohms
    • Enclosure: Asymmetrical, 18 mm, birch/poplar plywood
    • Suspension / Mounting: Dual angle (0° or -10°) 35 mm pole socket. Twelve M10 Suspension points
    • Transport: Glass filled nylon handle with rubber grip
    • Finish: Black DuraFlexT finish
    • Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing.
    • Input Connectors: Neutrikr Speakonr NL-2 / 1/4" combination (x2)
    • Dimensions (H x W x D): 650 mm x 429 mm x 457 mm (25.6 in x 16.9 in x 18 in)
    • Net Weight: 21.0 kg (46 lb)

  • GTIN:

    0050036904049
