JBL VTX-M22 Dual 12 Inch Professional Stage Monitor

ITEM #: JBL-VTX-M22 MFG #: VTX-M22

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the JBL-VTX-M22

VTX-M22 - Overview

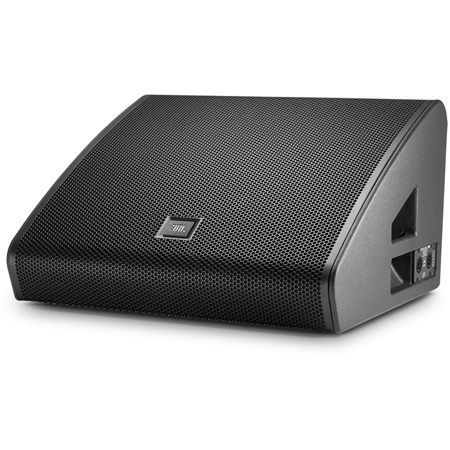

The JBL VTX-M22 Series dual 12" professional stage monitor features a high performance differential drive woofer and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. The option of Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option for the application, with no compromise in output power or performance. Drawing on JBL’s unique history of sharing technological innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which provides a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium, tour-ready features are enclosed in a modern, low profile design that is lightweight, ergonomic, and show-ready for even the most high profile concerts or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.

  • Features:

    • Elegant, low profile, compact design suitable for touring and high profile broadcast applications
    • State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
    • 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
    • Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment

  • Specifications:

    • Frequency Range (-10 dB): 45 Hz - 19.5 kHz
    • Coverage Pattern (-6 dB): Horizontal: 60; Vertical: 60
    • System Input Power Rating1: Passive: 1500 W Continuous (IEC / 100 hour); Active: LF: 1500 W Continuous (IEC / 100 hour); HF: 100 W Continuous (IEC / 100 hour)
    • Maximum Peak Output2: 138 dB (Preset: VTX M22 FR)
    • System Latency3: 3.33ms
    • System Processing: Crown Audio I-Tech HD Series; Crown Audio I-Tech 4x3500HD
    • System Impedance: Passive: 4 ohms; Active: LF: 4 ohms, HF: 8 ohms
    • Low Frequency Transducer: 2 x 2262H, 304 mm (12 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™

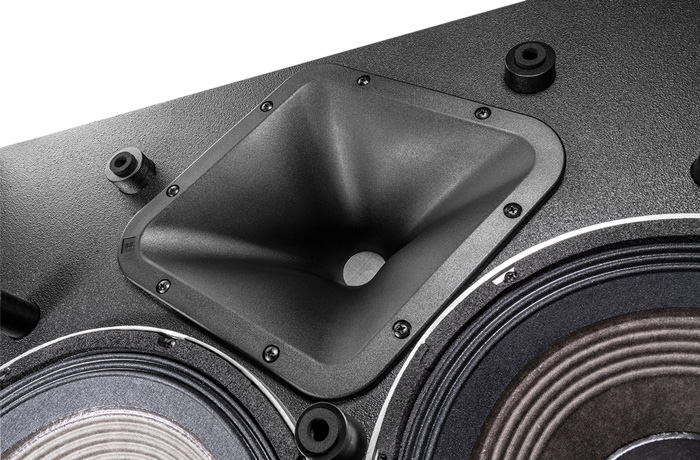

    • High Frequency Transducer 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
    • Monitor Angle: 30 degrees
    • Construction: mm, 11-ply Finnish birch plywood

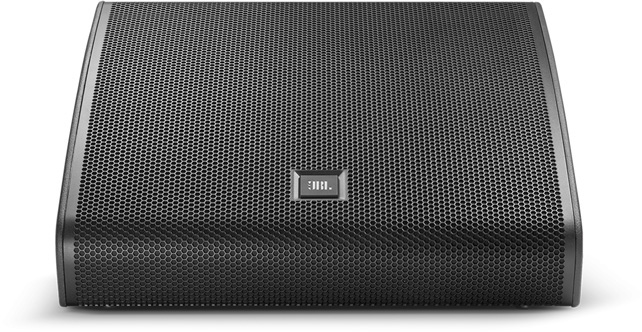

    • Grille: Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
    • Input Connectors: Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± ; Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
    • Dimensions (H x W x D) 380.1 mm x 670.8 mm x 555.0 mm (15.0 in x 26.4 in x 21.8 in)
    • Net Weight: 27 kg (60 lbs)

  • GTIN:

    0691991012969
