JVC RM-LP250S Single Camera IP Based Remote Control Panel for CONNECTED CAM with Joystick

ITEM #: JVC-RM-LP250S MFG #: RM-LP250S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$4,200.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup

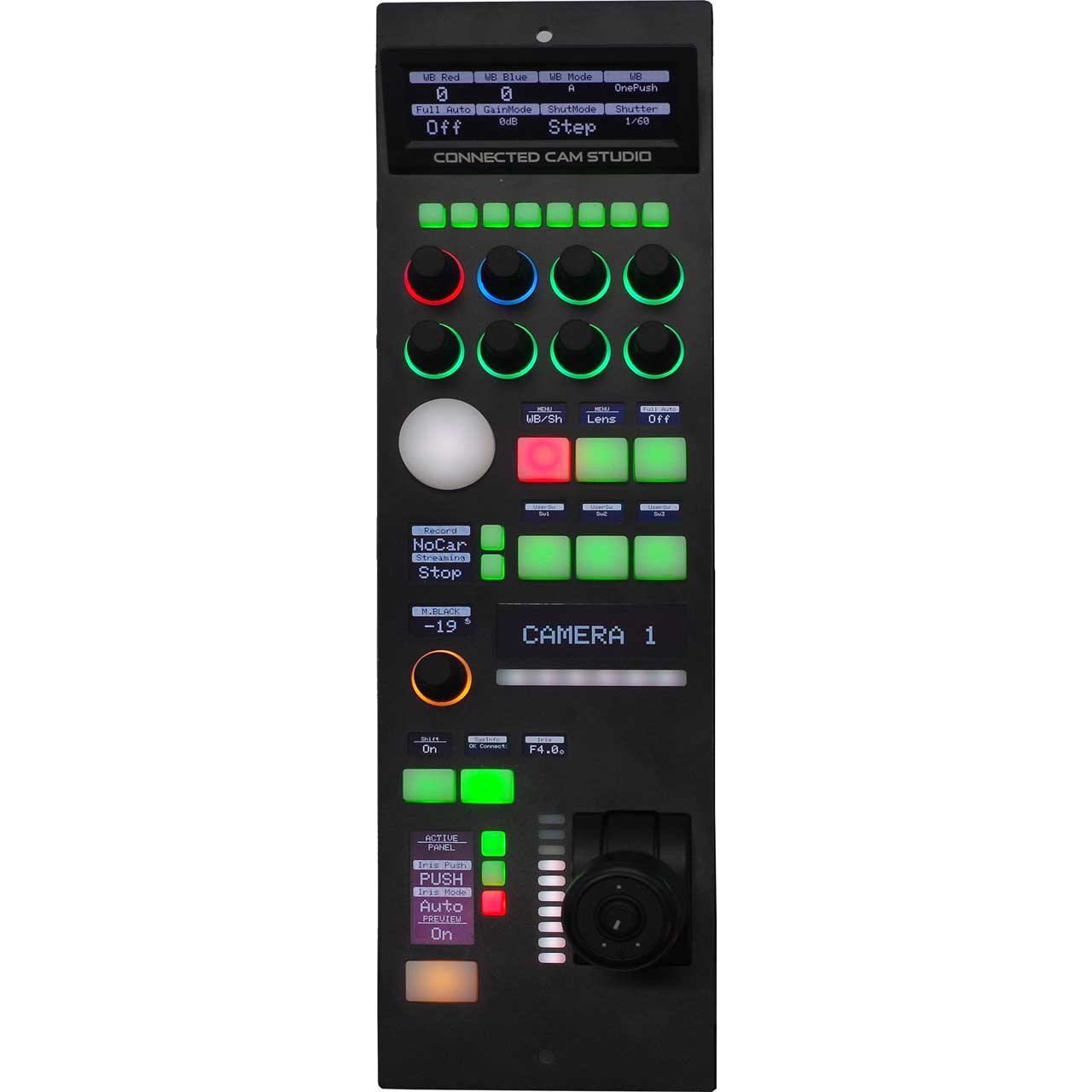

RM-LP250S - Overview

The RM-LP250S is a single-camera IP based remote control panel for JVC's CONNECTED CAM (GY-HC500 & GY-HC900) models. It features versatile dial and joystick control iris functions and connects using ethernet (RJ-45). Featuring a super crisp OLED window with large display tiles as well as 8 user buttons and 8 High-quality encoders with RGB backlight for function identification. There's also recording and streaming buttons, four-way buttons with OLED Legends for dynamic labeling and most of the buttons are able to assign the function by webUI! Your in control with a programmable pressure and direction sensitive elastomer joypad and a master black knob with Dedicated OLED display.

  • Features:

    • IP Remote Control for a single JVC CONNECTED CAM camera*
    • Iris control
    • Zoom + focus control (if lens supports it)
    • Master Black control
    • Gain Settings
    • AE Levels
    • Shutter mode and speed
    • WB Mode, WB One Push and WB Paint
    • Detail
    • Tally
    • Character Output Mix
    • Menu and Menu Navigation

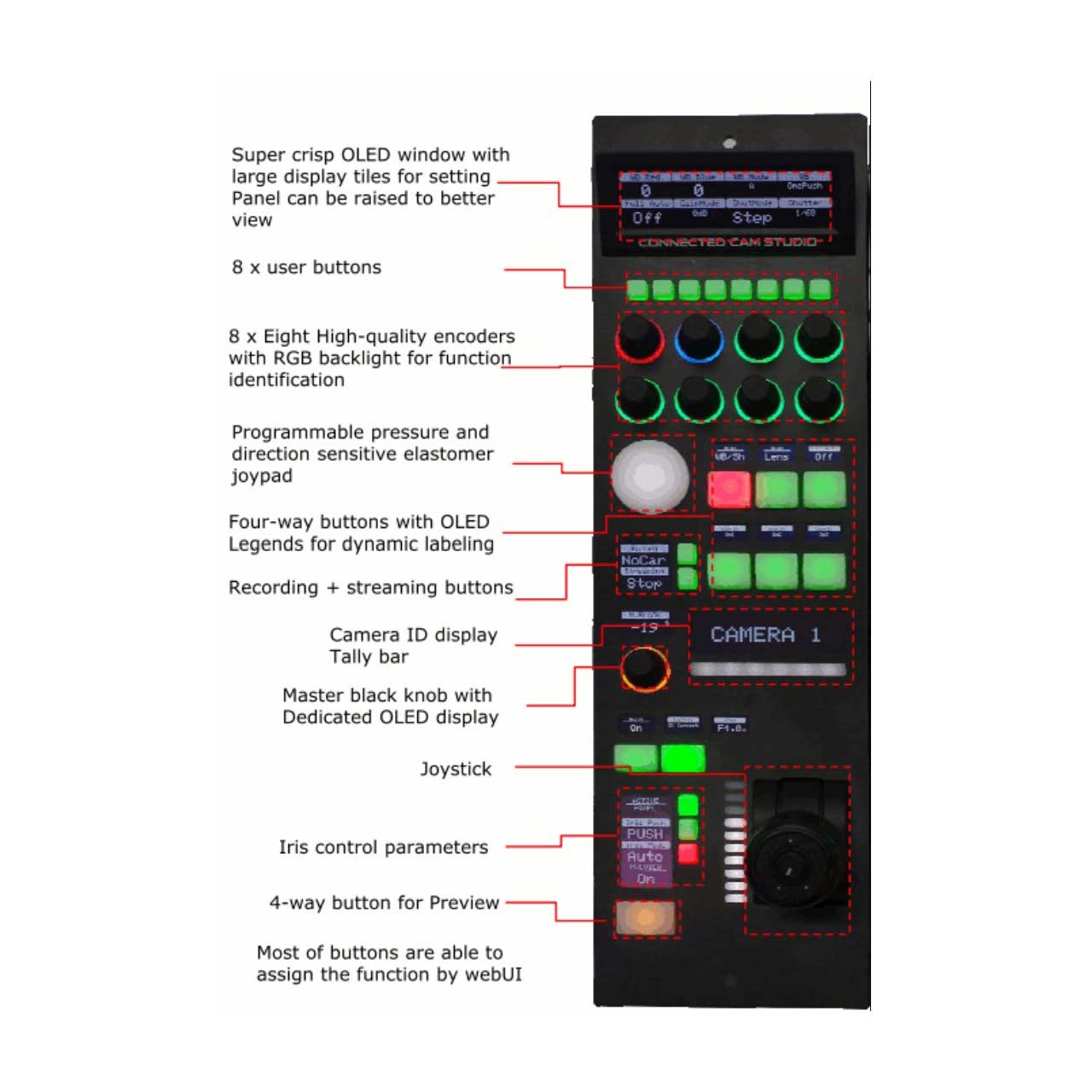

    • Super crisp window with large display tiles for settings
    • High-quality encoders with RGB backlight for function identification
    • Camera ID display with OLED technology
    • RGB tally bar
    • Preview button for GPI or control of video router
    • Four-way buttons with OLED legends for dynamic labelling and functionality
    • Pressure and direction sensitive joystick pad
    • Master black knob with dedicated OLED display
    • Classic iris joystick with display and LED bar
    • Industry standard form factor (4"/102mm wide)
    • Sits console style on table top or mountable in OB van rack

  • Specifications:

    • Camera Control: RM-LP250S can connect x1 camera recorders
    • Interface:
      - RJ-45
      - DB9 (EXT I/O) connector
      - Firmware Upgrade via USB2.0
    • Network Interface:
      - The controller have a 100 Mbps network interface
      - Network switch must have Auto-MDI/MDIX
      - Network switch must support 100 Mbps
    • Power: DC 12V, PoE (48V IEEE 802.3af )
    • Power Consumption: 6W
    • Dimensions (WxDxH): 4.02" x 13.98" x 4.69" (102.2mm x 355mm x 119mm)
    • Weight: 2.87lbs (1.3kg)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Operating Humidity: 30%RH - 80%RH
    • Storage Temperature: -4°F - 122°F (-20°C - 50°C)

  • Item Includes:

    • 1x RM-LP250S Remote Control
    • 1x Power Adaptor including power plug
    • 1x 2m CAT.5E Ethernet cable
    • 1x 1m USB 2.0 Type A/Type Micro B cable

  • GTIN:

    5714074002055
