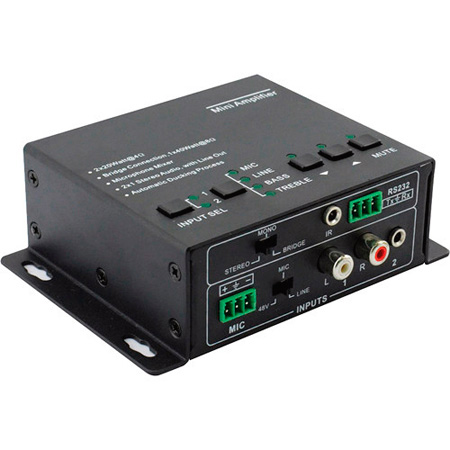

KanexPro AP2DBL Mini 2-input Audio Amplifier with Mic Mixer

ITEM #: KAN-AP2DBL MFG #: AP2DBL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KAN-AP2DBL

AP2DBL - Overview

The KanexPro Mini Audio Amplifier is a quarter-rack width digital amplifier (Class D) with equalizer control and Mic mixer. It’s a simple yet powerful device delivering 2x20 Watts@4Ohm default output with built-in volume/ bass feature. It also supports dual mono-output with 2 stereo audio selectable inputs. The Microphone mixer includes independent volume control with balance switching. Supports balanced/ unbalanced signals.

This Mini Audio Amplifier is mainly used during lectures, house of worship centers and various musical events where mic mixing together with equalizing audio is critical.

Note: The unit includes IR remote & sensor.

  • Features:

    • Fast switching audio amplifier
    • 2x20 Watt@4Ohm as the default amplifier output
    • Bridge connection supported by switching the amplifier to be 1x40Watt@8Ohm
    • Supports Dual-mono output
    • Built-in Microphone mixer (separately controllable)
    • Line audio output, with volume controllable.
    • MIC input supports 48V phantom power
    • MIC port with balanced switching suppress
    • Supports balanced/ unbalanced signals
    • Supports Ducking power technology
    • Ultra low inrush current
    • Two stereo audio inputs, switchable by button, remote or RS232.
    • Volume/Bass/Treble controllable by buttons or RS232
    • Optional control by IR remote
    • Convection cooled, antistatic case design
    • LED indicator, for power and operating status
    • IR remote & sensor included
    • Internal Universal power adaptable (100-240 volt AC, 50/60Hz)


  • Specifications:

    • Audio Input:
    • Input 2 stereo audio
    • 1 MIC

    • Audio Output:
    • 1 amplifier
    • 1 stereo audio

    • Input Connector:
    • 2 RCA
    • 1 x 3.5mm jack
    • 1 captive screw

    • Output Connector:
    • 1 captive screw
    • 1 x 3.5mm jack

    • Input Impedance for Inputs 1&2: >10KΩ
    • Output Impedance: 50Ω/stereo, 4-8Ω/Amplifier

    • Audio General:
    • Frequency Response:
    • Input: 20Hz - 20KHz
    • Output: CMRR >70dB@20Hz-20KHz

    • Signal to Noise Ratio: 80dB at maximum output
    • Bandwidth: 20Hz - 25KHz

    • Stereo Channel Separation:
    • Input: >75dB@20Hz to 20KHz
    • Output: THD + Noise 1%(1KHz), 0.3%(20KHz) at nominal level

    • Voltage Gain: 32dB
    • Mic Input Impedance: 48V: 35 Kilo Ohms
    • Mic: 10 Kilo Ohms
    • Line: 75 Kilo Ohms
    • Mic Audio Detection Delay: < 1ms
    • Common Mode Rejection Ratio: >70dB (20Hz- 20KHz)
    • Power Output: 2x20 Watts (4 Ohms)

    • Control:
    • RS-232 Serial
    • 9-pin female D connector
    • Pin Configurations: 2 = TX, 3 = RX, 5 = GND
    • IR: Optional IR remote control
    • TCP/IP control through TCPRS2 (Optional)
    • Power consumption: 3.6 Watts
    • Dimensions: 1.5"x3.78"x3.45" (HWD)
    • Weight: 0.67 lbs (0.3Kg)


  • GTIN:

    0814556015087
