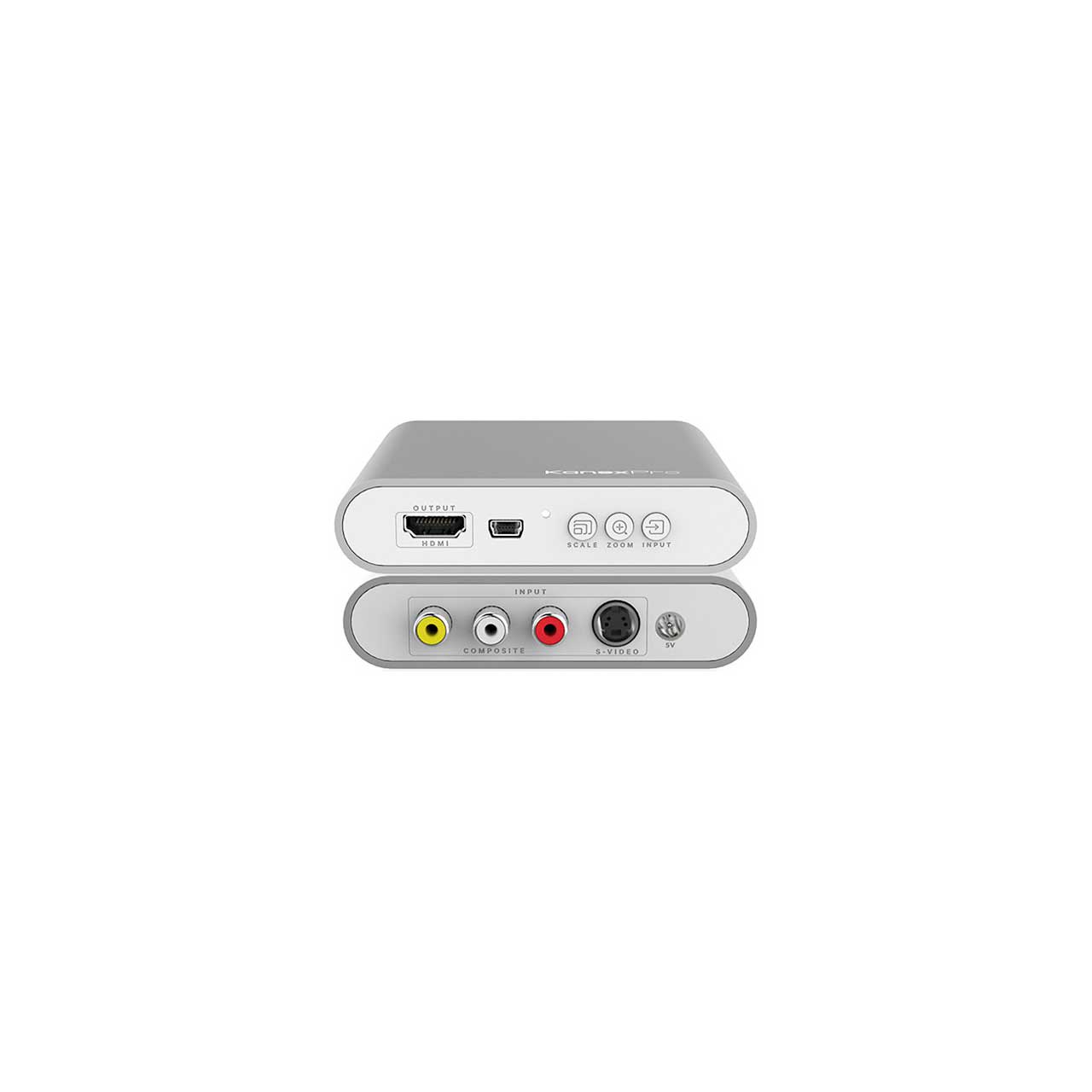

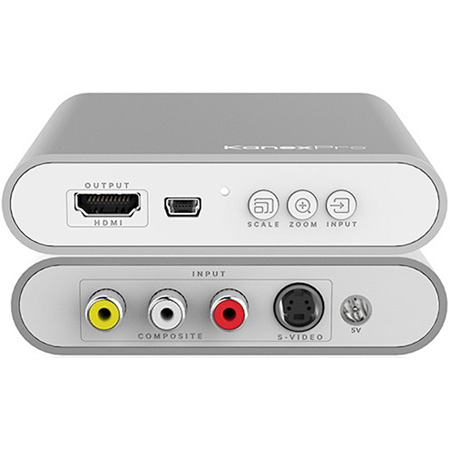

KanexPro CON-AV-HD4K Composite/ S-Video to 4K HDMI Converter

Name: KanexPro CON-AV-HD4K Composite/ S-Video to 4K HDMI Converter
Brand: KanexPro
SKU: KAN-CON-AV-HD4K
Price: 104.95 USD
Availability: InStock

ITEM #: KAN-CON-AV-HD4K MFG #: CON-AV-HD4K

KanexPro

Our Price:

$104.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CON-AV-HD4K - Overview

The KanexPro CON-AV-HD4K is a universal scaler converter designed to up-scale one Composite (RCA) or S-video input to HDMI 4Kx2K@60Hz output. The CON-AV-HD4K is capable of converting analog to digital formats with multiple adjustments and range to achieve the most ideal video image using the front panel buttons for scaling & zoom. It is portable and simple plug and play device making it the most ideal converters for scaling analog to 4K digital signal conversion.

Perfect for older AV devices that need to be transformed to 4K UHD display for viewing purposes only.

Features:
- Scale & Convert S-Video / Composite Video to UltraHD 4K display
- Built-in scaler to upscale video resolutions up to 4K@60Hz
- Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, and PAL/N input format
- Advanced signal processing with great precision, colors & details
- Selective Source button to switch between analog sources
- Selective Resolution and Zoom button to get the best optimal resolution
- Easy firmware update via Micro-USB
Specifications:
- Input ports: 1 x RCA (Yellow, White, Red). 1x S-Video, 1 x Mini- USB
- Output ports: 1 x HDMI
- C-Video /S-VIDEO input resolution: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, and PAL/N standard TV formats
- HDMI Output resolution: 4Kx2K@60Hz, 4Kx2K@30Hz, 1080p@60Hz, & 720p@60Hz
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20 ~ 90% RH (Non-condensing)
- Power Consumption (Max): 3W
- ESD Protection: ± 8kV (air-gap discharge)
- Human Body Model: ± 4kV (contact discharge)
- Dimensions: 3.66 inch x (D) 3.33 inch x (W) x 1.1 inch (H)
- Weight: 0.66 lbs
Item Includes:
- 5V DC external power supply
GTIN:
0813982020443
