KanexPro EXT-PROCTRL Flexible Matrix System Controller powered by SDVoE with PoE and RS-232

ITEM #: KAN-EXT-PROCTRL MFG #: EXT-PROCTRL

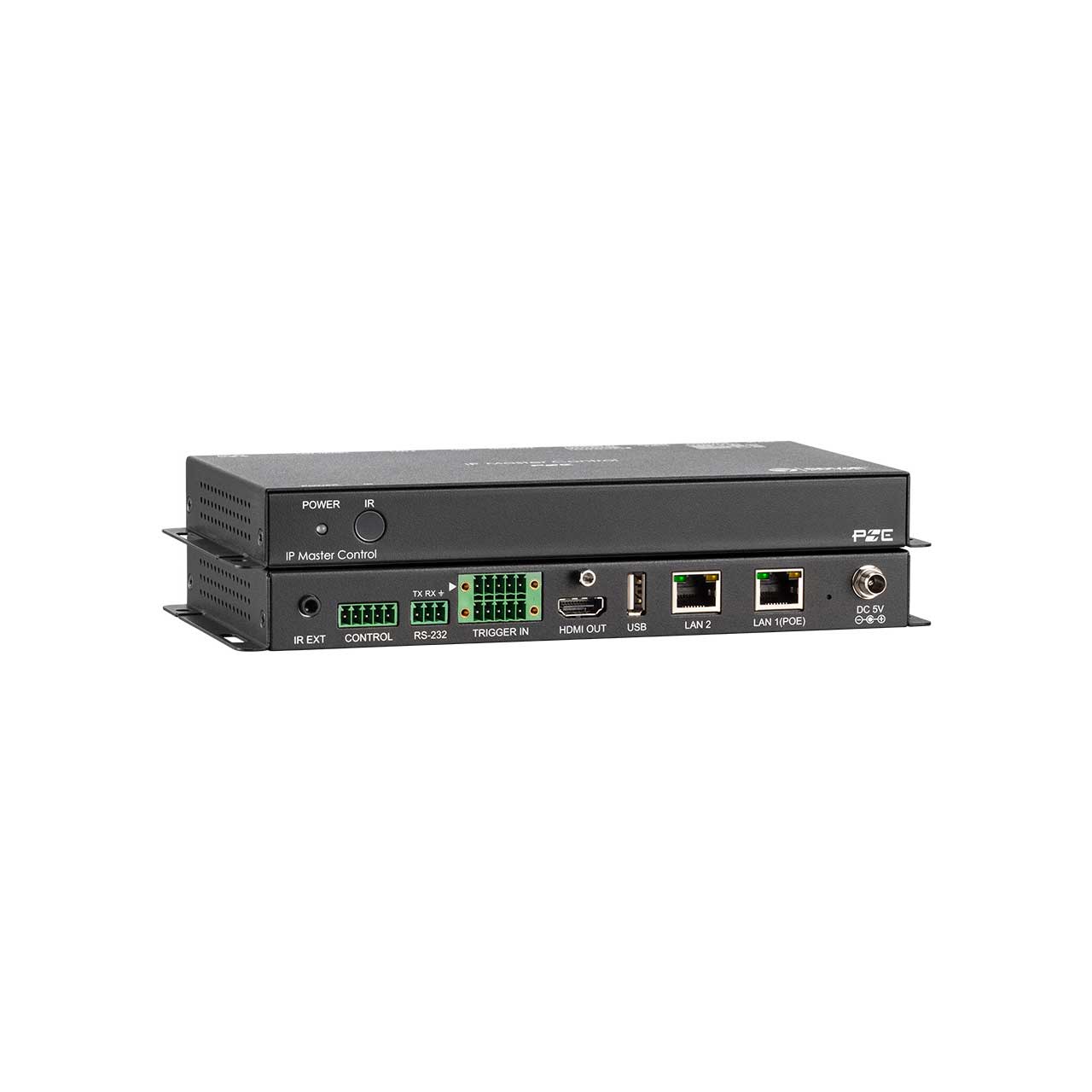

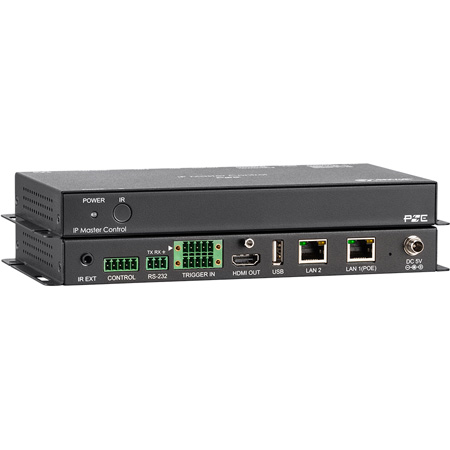

Primary Image

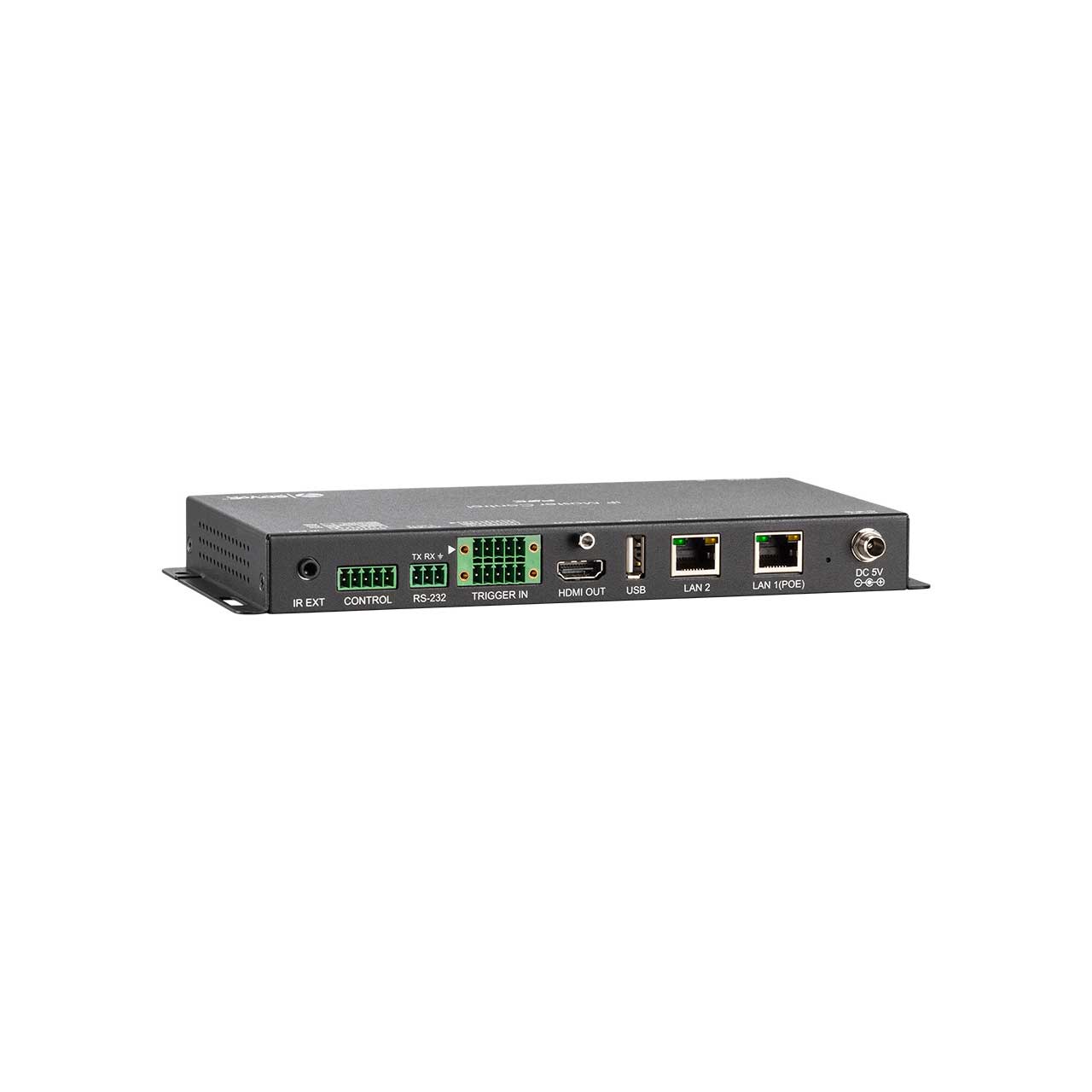

  • Product Image Thumbnail 1 of 3

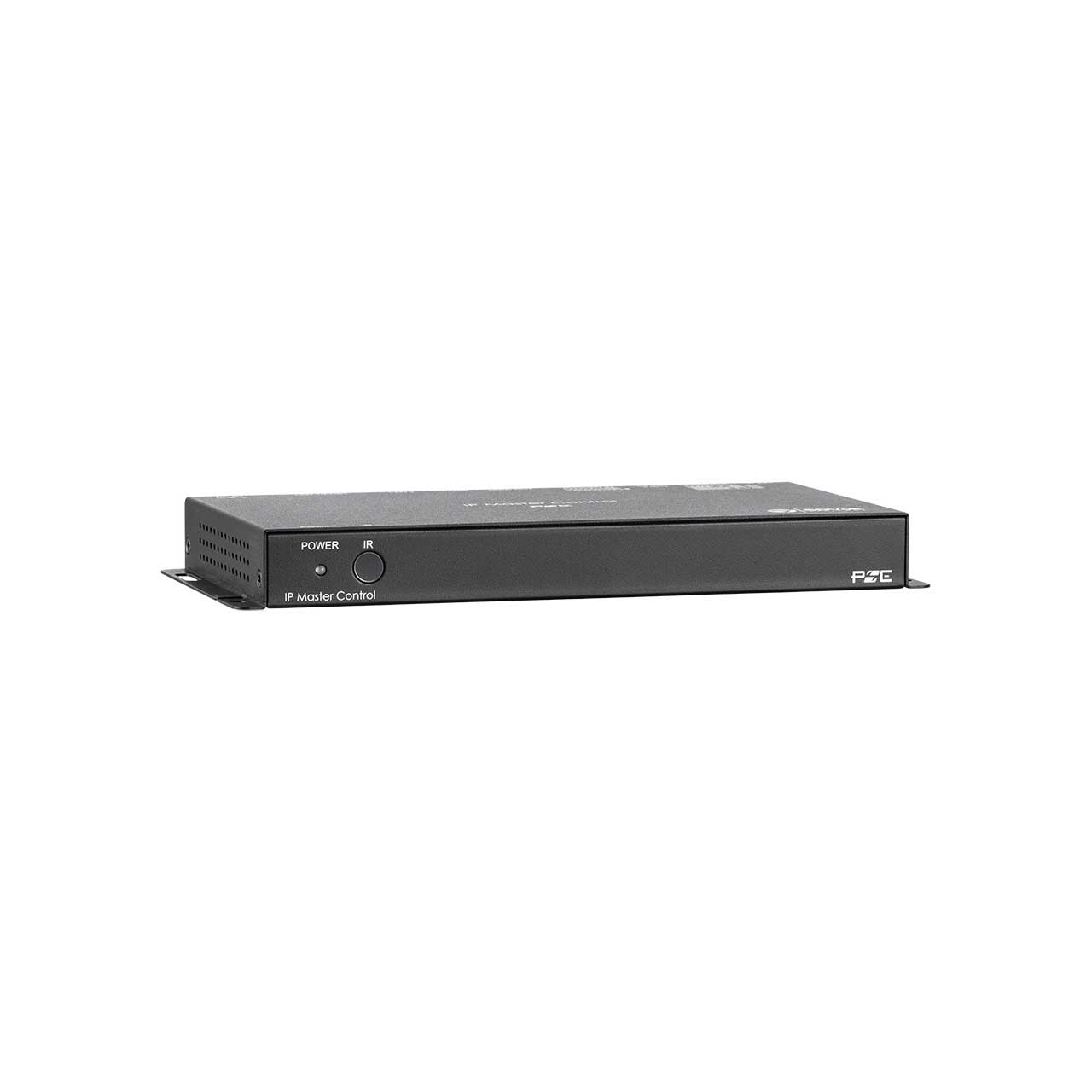

  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KAN-EXT-PROCTRL

EXT-PROCTRL - Overview

The KanexPro EXT-PROCTRL SDVoE powered Modular Matrix system is the most versatile flexible video distribution solution. The system is composed of transceiver devices that can be configured as either video transmitters or receivers with a simple click of a mouse. The whole system is controlled and configured by a single control module which makes setup a snap. Add the system to a 10G network and enjoy UHD 4K Lossless video with zero latency.

  • Features:

    • Enables the management and configuration of multiple compatible SDVoE extenders through a single WebGUI
    • Provides control over the independent routing of video, audio and control signals between all local compatible transmitters and receivers
    • Control over matrix, video wall, and multiviewer modes using WebGUI macros
    • WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection,etc.
    • Can generate serial commands to directly control an external serial-controllable device
    • Can be powered by Ethernet switches supporting the IEEE 802.3af 2003 PoE standard (Optional)
    • Trigger Control Keypad support for easy, single-button, macro activation (Optional)
    • Standard control is available via WebGUI (remote or local), RS-232, Telnet, and IR Remote
    • KanexPro 3 year warranty


  • Specifications:

    • Technical
    • HDMI Compliance: HDMI 2.0, 1.4b
    • HDCP Compliance: HDCP 2.0, 1.4
    • Video Bandwidth: 18 Gbps
    • Ethernet Bandwidth: 10 Gbps
    • Video Resolutions: 720x400@70/85 ~ 4096x2160p@50/60Hz
    • Output Video Type: SDVoE
    • Baud Rate: 57600 (Default), up to 115200bps
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
    • Color Depth: 8-bit
    • HDMI Audio Formats: LPCM 8CH, 32, 44.1, 48KHz
    • L/R Audio Formats: Analog Stereo 2CH
    • ESD Protection: Human body model +- 8kV (air-gap discharge) & +- 4kV (contact discharge)

      Controller
      Inputs
    • 1x HDMI Type A (19-pin female)
    • 1x L/R Audio In (3.81mm Phoenix Connector)
    • 1x RS-232 (3.81mm Phoenix Connector)

      Outputs
    • 1x HDMI Type A (19-pin female)
    • 1x L/R Audio Out [3.81mm Phoenix connector)
    • 1x Debug (3.81mm Phoenix connector)
    • 1x LAN (RJ45 connector)

      Mechanical
    • Housing: Metal Enclosure, Steel
    • Color: Black
    • Dimensions: 231mm [W] x 116mm [D] x 25mm [H]
    • Weight: 0.55 lbs
    • Power Supply: 15V/2.6A DC (Locking)
    • Maximum Power Consumption: 2.99 watts
    • Operation Temperature: 32 - 104°F
    • Storage temperature: -4 - 140°F
    • Relative Humidity: 20 - 90% RH (no condensation)


  • GTIN:

    0813982022447
