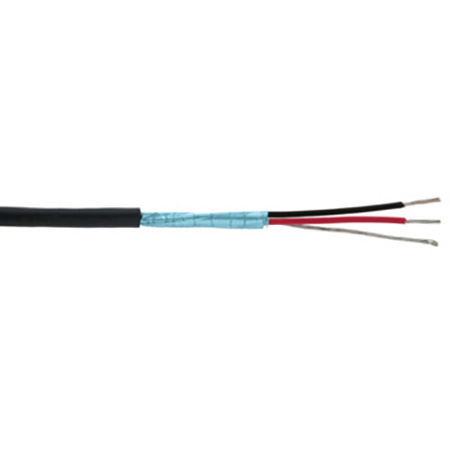

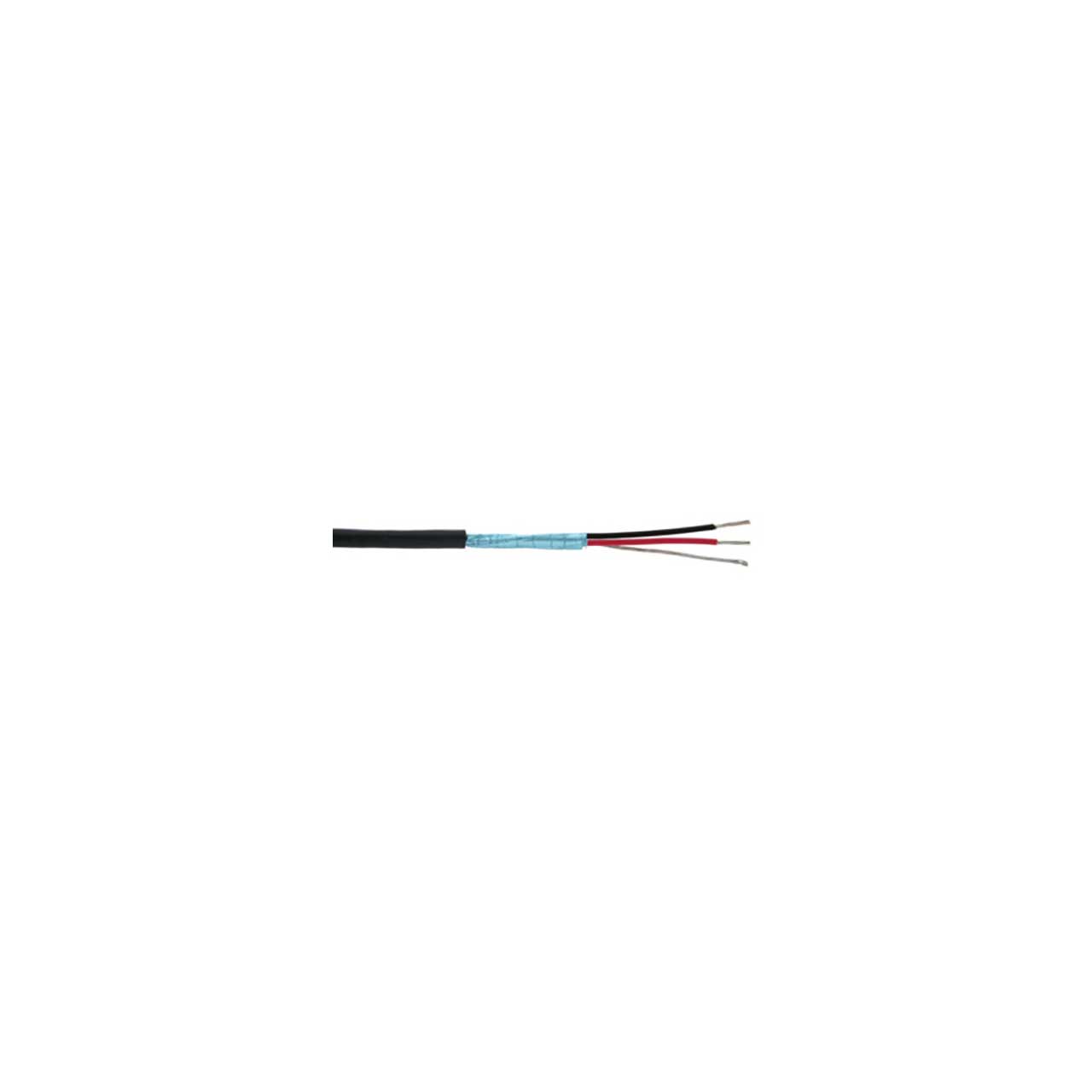

Kramer BC-1T-300M Balanced Mono Audio or Control Cable - 20 AWG - 985 Foot/300 Meters

BC-1T-300M - Overview

Bulk Mono Audio/Control Cable

• Features:

  • Quality Construction - Conductors and drain wire are stranded 20AWG tinned copper
  • Rugged and Flexible Jacket - With sequential markings every meter
  • Easy Stripping - Exceptionally easy to strip because the foil shield is bonded to the inside of the jacket
  • Length - Available in reels of 300m (985ft)


• Specifications:

  • CONDUCTORS
  • Material: Tinned Copper
  • Size: 2x20AWG
  • Diameter: 0.916mm


  • INSULATION
  • Material: PP
  • Diameter: 1.8±0.09mm
  • Average Thickness: 0.442mm
  • Color: As color code


  • DRAIN WIRE
  • Size: 20AWG
  • Material: Tinned Copper


  • SCREENING
  • Material: AL-foil/mylar
  • Overlap: 25% min


  • JACKET
  • Material: PVC
  • Diameter: 5.4 ± 0.19mm
  • Color: Black


  • ELECTRICAL
  • Temperature rating: 75°C
  • Insulation resistance: DC-500V 100MΩ/KM MIN. at 20°C
  • Conductor resistance: 20AWG-34.6Ω/KM MAX. at 20°C
  • Impedance: 40~100Ω


  • STANDARDS COMPLIANCE
  • UL: CM
  • RoHS: 2011/65/ EU


• Item Includes:

  • Kramer BC-1T-300M Balanced Mono Audio or Control Cable - 20 AWG - 985 Foot/300 Meters


• Warranty:

  • Lifetime Warranty


• GTIN:

  7291063046057
