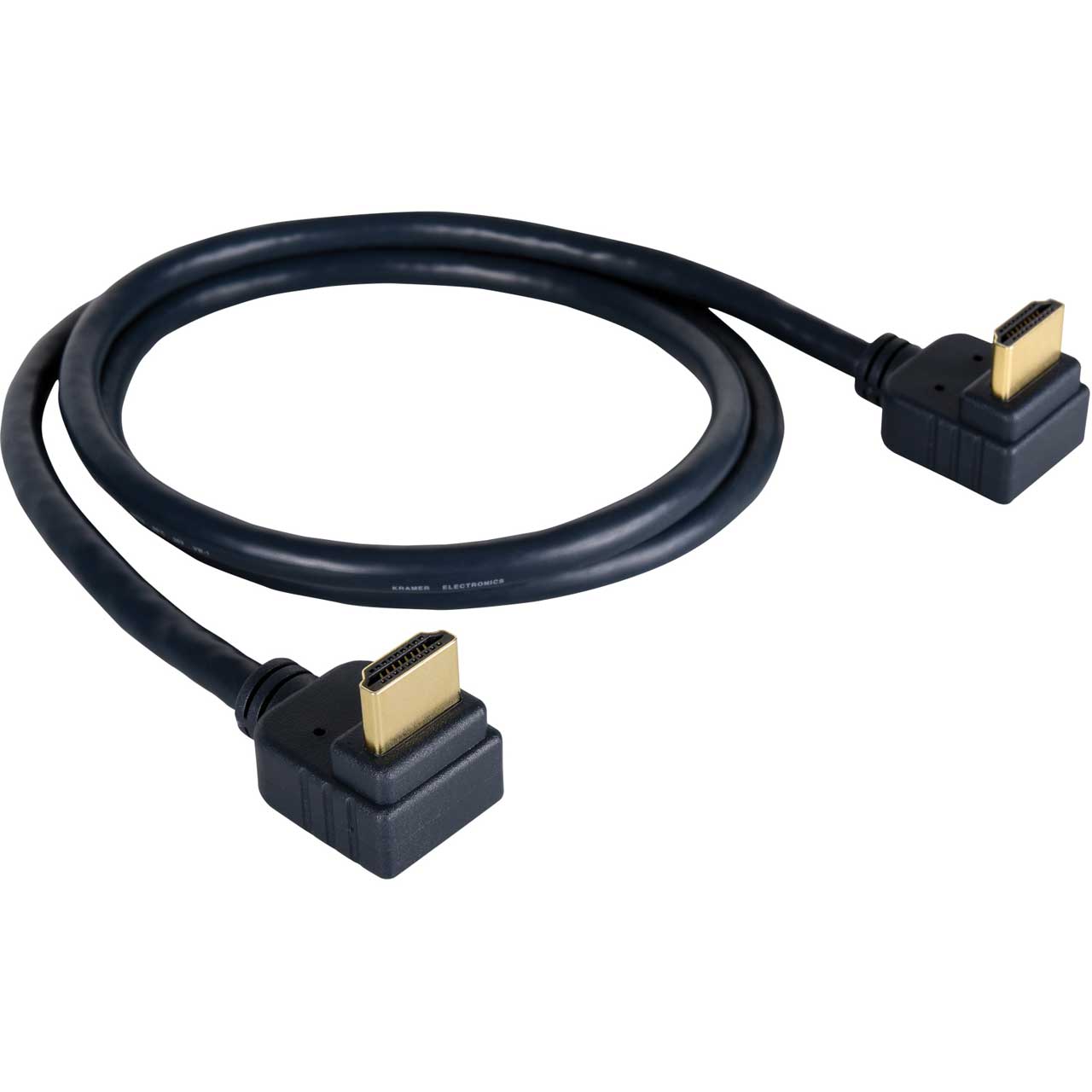

Kramer C-HM/RA2-3 High-Speed HDMI Right Angle Male to HDMI Right Angle Male Cable with Ethernet - 3 Foot

C-HM-RA2-3 - Overview

Minimizes Installation Depth

• Features:

  • Max. Resolution - 4K@60Hz (4:4:4).
  • High-Quality Connectors - 24K gold-plated connectors resist corrosion, and offer the best possible connectivity.
  • Minimizes Installation Depth - The right angle design makes it the perfect cable for connecting a flat panel display to a Kramer low profile wall-plate extender when the extender is installed behind the display.
  • Supports HDCP 2.2, HDR, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, and CEC.


• Specifications:

  • VIDEO
  • Max Resolution: 4K@60Hz (4:4:4)
  • Max Data Rate: 18 Gbps
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR,HDCP 2.2, EDID and CEC

    AUDIO
  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS-HD Master Audio™, DVD Audio, SA-CD

    PHYSICAL
  • HDMI Source: On a male HDMI type A, 24K gold-plated K-Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold-plated K-Lock connector

    CONDUCTORS
  • Material: Tinned Copper/Bare Copper
  • Size: 30AWG (7/0.100)

    SCREENING
  • Type: Triple shielding

    JACKET
  • Material: PVC
  • Color: Gray
  • Diameter: 7 ±0.15mm

    MECHANICAL
  • Cable Bending Radius: 60mm

    ELECTRICAL
  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance: 381Ω/km MAX. at 20°C (68°F)

    STANDARDS COMPLIANCE
  • Safety: Flammability Rating - VW-1
  • Environmental: RoHS 2.0


• Item Includes:

  • C-HM/RA2-3 High-Speed HDMI Right Angle Male to HDMI Right Angle Male cable with Ethernet - 3 Foot


• Warranty:

  • Standard One (1) Year Warranty


• GTIN:

  7291063090791
