CP-AOCH/60-66 - Overview

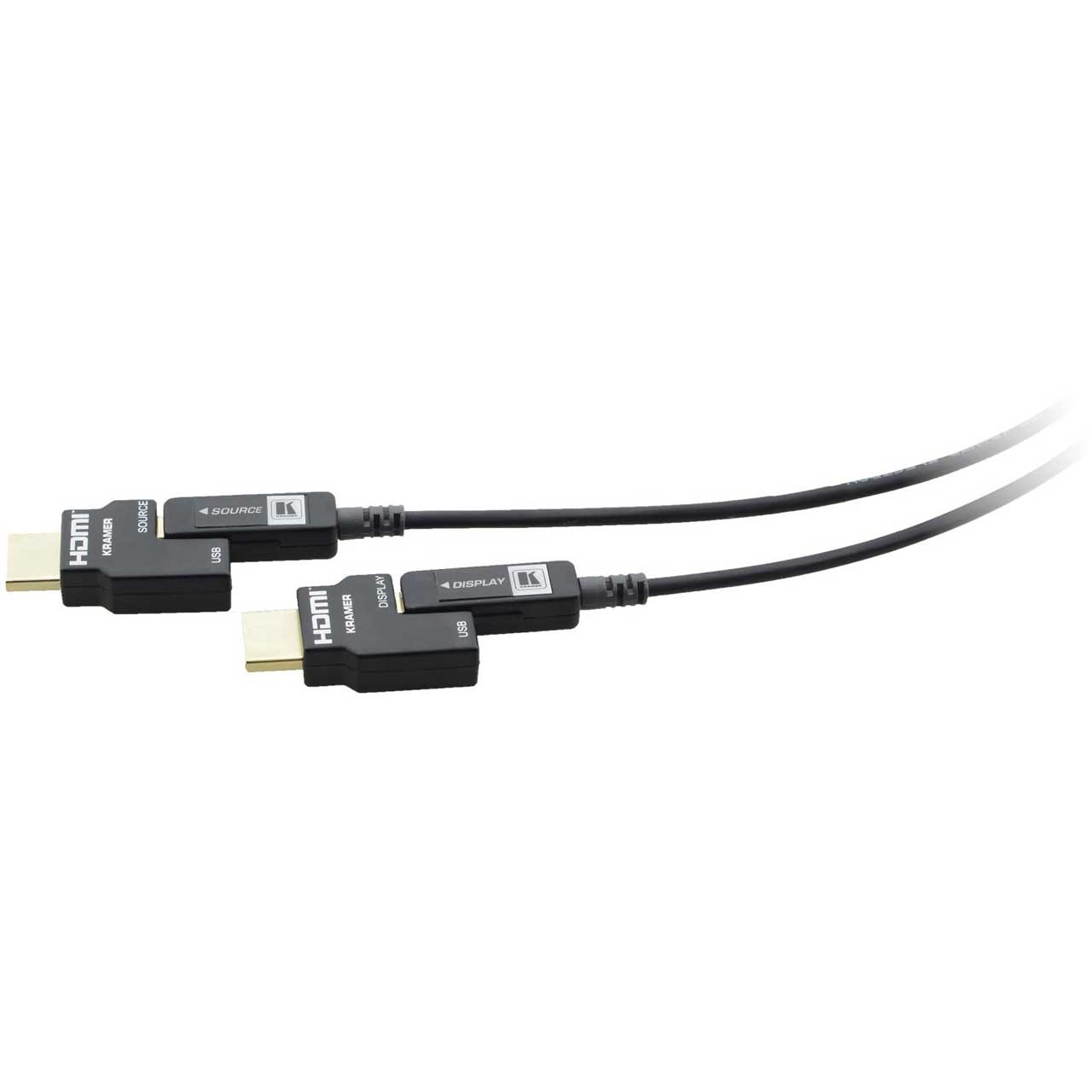

Removable HDMI Connectors with Pull-Through Capsule

The Kramer CP-AOCH/60 is an innovative active optical HDMI cable for 4K@60Hz (4:4:4) signal resolution up to 100 meters (328 ft). This hybrid-fiber cable features micro-HDMI ends with detachable HDMI connectors, making it easy to run through a conduit or other tight spaces. Detachable DVI connectors can be purchased separately. CP-AOCH/60 cables are thinner, lighter and more flexible than copper or even standard optical cables. They offer transparent EDID, HDCP and HDR support with no signal attenuation and reduced risk of EMI and RFI interference. CP-AOCH/60 cables are an ideal solution for maximizing signal integrity in critical AV installations.

Cable Installation Note: These cables are recommended for point-to-point application use only. Not to be used with wall plates, additional patch cables, or coupling devices.

  • Features:

    • Video Resolution - Up to 4K@60Hz (4:4:4).
    • High Data Transfer Rate - Up to 18Gbps.
    • Embedded Audio - PCM 8-channel, Dolby Digital True HD and DTS-HD Master Audio.
    • HDMI Support - HDCP 2.2, HDR (High Dynamic Range), EDID and CEC.
    • High-Quality Connectors - 24K gold-plated, corrosion-resistant and best possible connectivity.
    • Reduced EMI & RFI.
    • Thin Construction - 3.4mm (0.13") diameter.
    • Small Bending Radius - Only 6mm (0.24").
    • Jacket Construction - Low smoke & halogen free.
    • RoHS 2011/65/EU Compliant.
    • Varied Selection of Lengths - Available in versions from 10 to 100m (33 to 328ft).


  • Specifications:

    • AUDIO & VIDEO SPECIFICATIONS
    • Video Resolution Up to 4K@60Hz 4:4:4 across all lengths
    • Data Rate (max) Up to 18 Gbps
    • Supported Color Spaces RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601
    • Embedded Audio Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD
    • HDMI Support HDCP 2.2, HDR, EDID and CEC

    • PHYSICAL SPECIFICATIONS
    • Connector-1 (source end) Male HDMI type-A 24K gold plated (pluggable) / Male HDMI type D
    • Connector-2 (display end) Male HDMI type-A 24K gold plated (pluggable) / Male HDMI type D
    • Cable Structure Hybrid Optical Fiber Cable
    • Fiber Optic A Multi-mode Fiber
    • Conductors B 6x28AWG (7/0.127mm)
    • Outer Sheath Material C Plenum
    • Outer Sheath Color Black
    • Outer Sheath Diameter 3.4mm
    • Cable Bending Radius 6mm
    • Connector Max. Pulling Strength 22lbs/10kg
    • Max. Compression Load Resistance 500N (50kg, 110lbs)

    • POWER SPECIFICATIONS
    • Power Supply Connect the supplied USB cable to an external USB power source
    • Power Consumption 0.75W max

    • REGULATORY
    • Plenum (compliance) CMP-OF
    • RoHS 2011/65/ EU


  • Item Includes:

    • Active Optical UHD HDMI Cable
    • HDMI type-D to A adapter (2)
    • HDMI-A end locking screw (2)
    • USB-A to MicroB cable (1)
    • Pulling capsule (1)


  • Warranty:

    • Standard one (1) year warranty


  • GTIN:

    7291063080686
