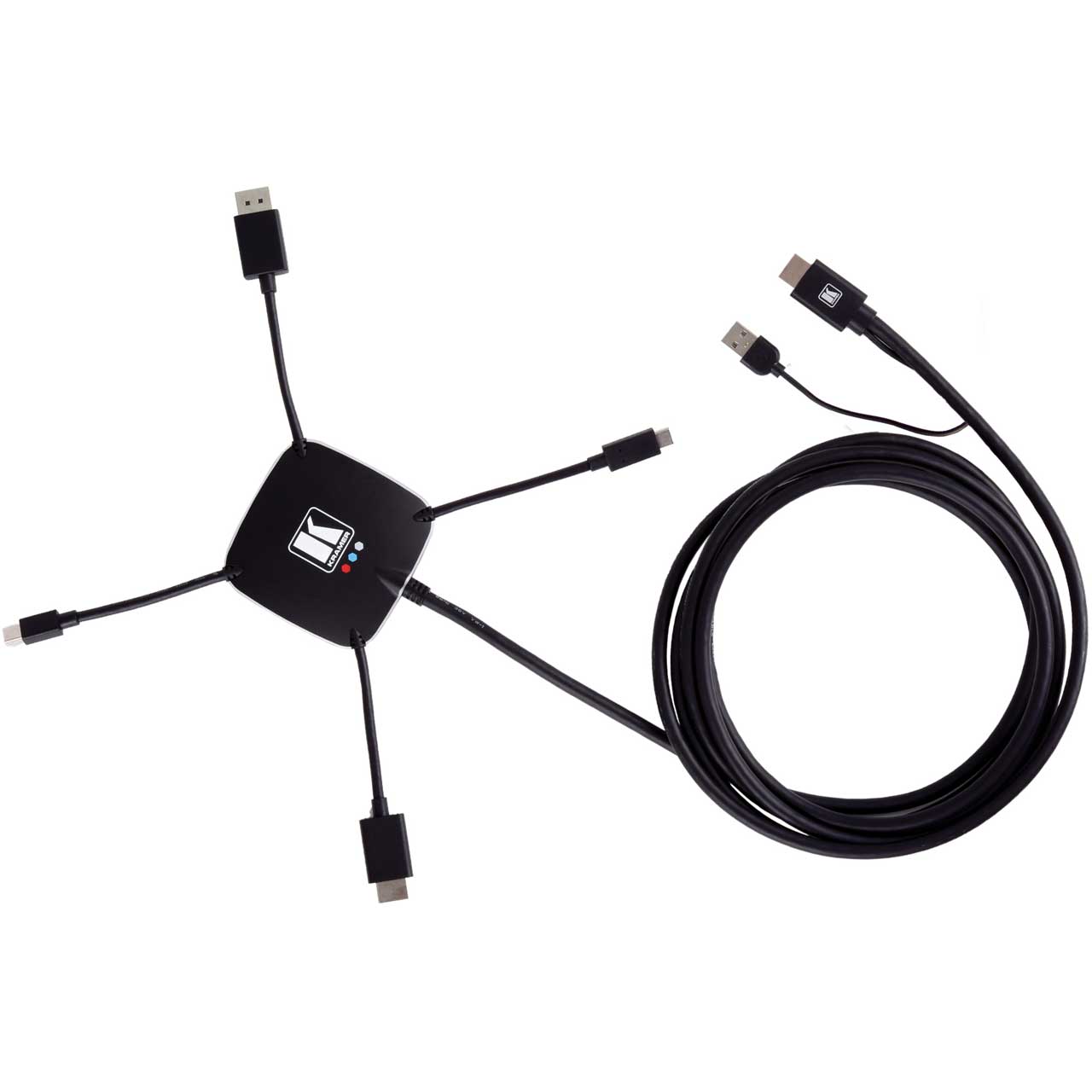

Kramer Active Multi-Format Input Male to HDMI Output Male Adapter Cable

K-SPIDER - Overview

Plug and Play Installation - No software required

• Features:

  • High-Performance Adapter Cable - Supports full 4K@60Hz digital video connectivity.
  • Active Adapter - Retimes the signal to ensure full resolution signal quality.
  • Simplifies Equipment Requirements - Replaces multiple separate cables, adapters, and dongles with a single multi-head cable.
  • Plug and Play Installation - No software required.
  • 3 Meter Output Cable.


• Specifications:

  • INPUTS
  • HDMI: On a male HDMI connector over 6.5cm (2.5") pigtail
  • USB-C: On a male USB type-C port over 6.5cm (2.5") pigtail
  • DisplayPort: On a male DisplayPort connector over 6.5cm (2.5") pigtail
  • Mini DP: On a male mini DisplayPort connector over 6.5cm (2.5") pigtail


  • OUTPUTS
  • HDMI: On a male HDMI connector over 3.05m (10ft) 30AWG HDMI cable


  • PORTS
  • USB: On a male USB-A connector over 20cm (7.9") pigtail


  • VIDEO
  • Max Resolution: Up to 4K@60Hz
  • Compliance: CEC, DDC and HDCP 2.2


  • POWER
  • Optional Auxiliary Power Through USB Connector: Use external 5V/1A power adapter or higher


  • ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10% to 90%, RHL non-condensing


  • REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
  • Safety: FCC, UL, CE
  • Environmental: RoHs, WEEE


  • ENCLOSURE
  • Type: ABS Shell


• Item Includes:

  • Active Multi-Format Input Male to HDMI Output Male Adapter Cable with USB power cord


• Warranty:

  • Standard One (1) Year Warranty


• GTIN:

  7291063092023
