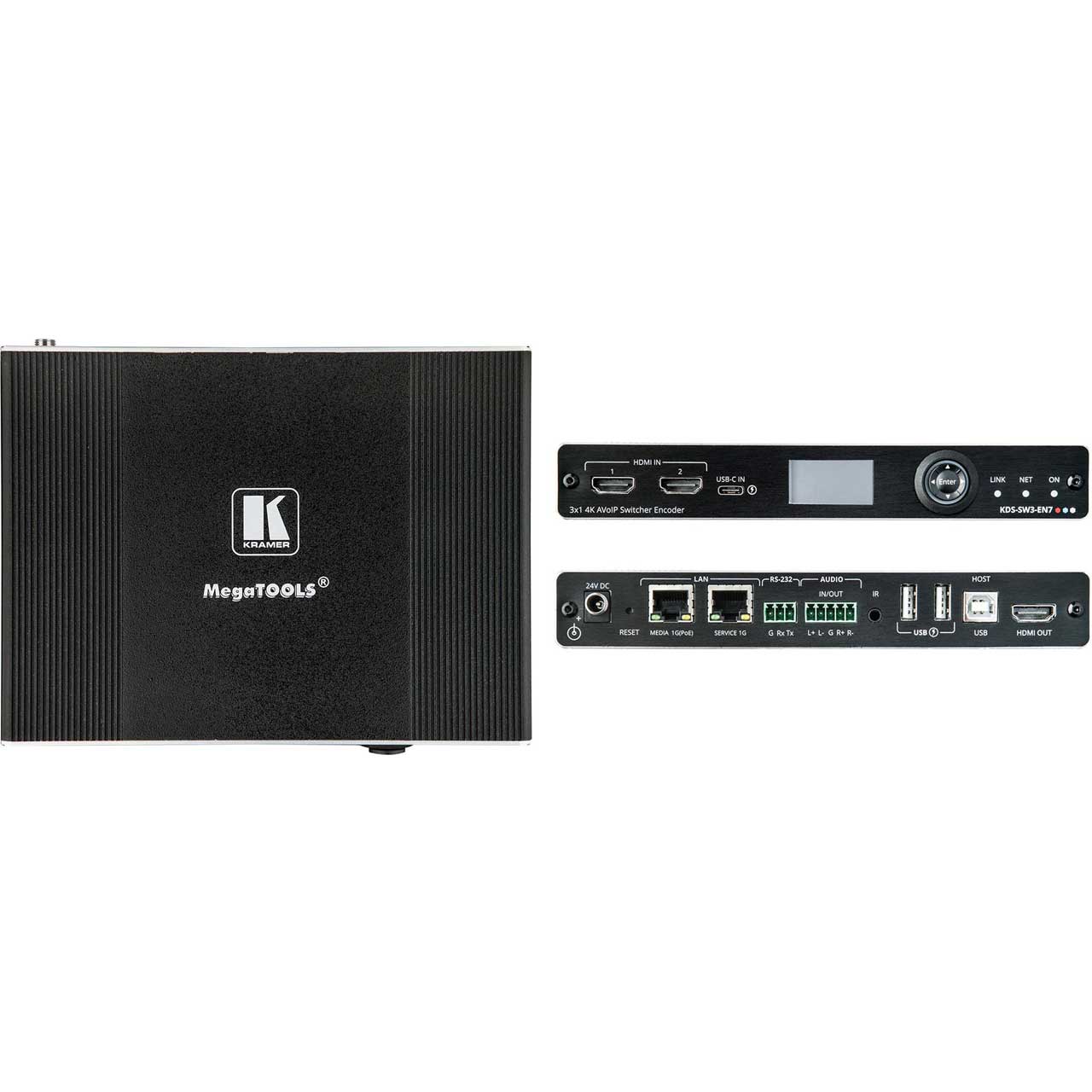

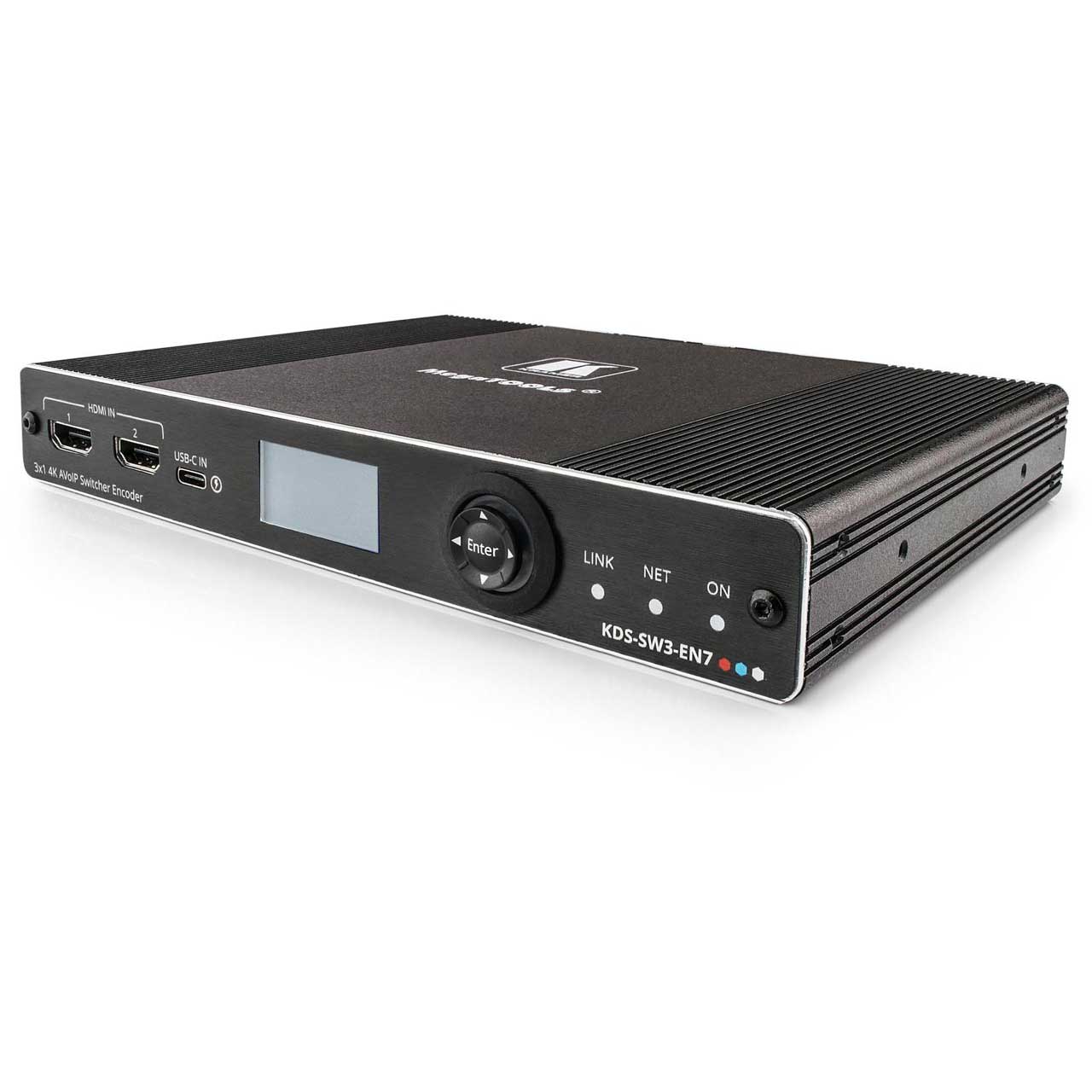

Kramer KDS-SW3-EN7 High-Performance & Highly-Scalable AVoIP Auto-Switch KVM Encoder with Dante over 1G Network

KDS-SW3-EN7 - Overview

• Features:

  • 2 HDMI and 1 USB-C with charging capabilities for laptop
  • Easy-to-use KM/KVM - Searchable OSD Menu for KM and fully configurable KVM roaming
  • Large scale video wall - up to 16x16
  • Instantaneous switching time - 1 second
  • Highly scalable - 999 channels build in support
  • State of the art management device
  • Rich set of management capabilities - Standard P3K Open API , LCD screen for configuration
  • Enterprise IT-grade security - 802.1x and HTTPS/TLS
  • Security certification - OWASP Top 10 certificate
  • Separate ETH ports for optimal security and experience
  • New HW architecture that enables robust FW update
  • Cost-effective from day one
  • Full product range for any site, any application
  • Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, etc.


• Specifications:

  • Inputs
  • 2 HDMI: On female HDMI connectors
  • 1 USB-C: On a female USB-C connector

    Outputs
  • 1 HDMI: On a female HDMI connector

    Ports
  • 2 Ethernet: On R-J45 connectors
  • 1 Balanced Audio: On a 5-pin terminal block connector
  • 1 RS-232: On a 3-pin terminal block connector
  • 1 IR: On a 3.5mm TRS connector
  • 1 USB Host: On a USB-B connector
  • 2 USB Device: On USB-A connectors

    Video
  • Compression Standard: JPEG based, private stream
  • Max Resolution: 4K60 4:2:0 or 4K30 4:4:4
  • HDR 10: Up to 4K30 4:2:2 12 bit

    User Interface
  • Indicators: LINK, NET and ON LEDs, front panel LCD Display
  • Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

    Power
  • Options: PoE on LAN(PoE) port
  • Consumption: 6W
  • 24V DC

    Environmental Conditions
  • Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
  • Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
  • Humidity: 10% to 90%, non-condensing

    General
  • Product:
    Dimensions (WxDxH): 7.4 x 5.7 x 1" (18.9 x 14.5 x 2.76cm)
    Weight: 1.4Lbs (0.67kg) approx
  • Shipping:
    Dimensions (WxDxH): 12.2 x 7.04 x 2.9" (31.2 x 17.9 x 7.6cm)
    Weight: 2.05Lbs (0.93kg) approx


• GTIN:

  7291063096496
