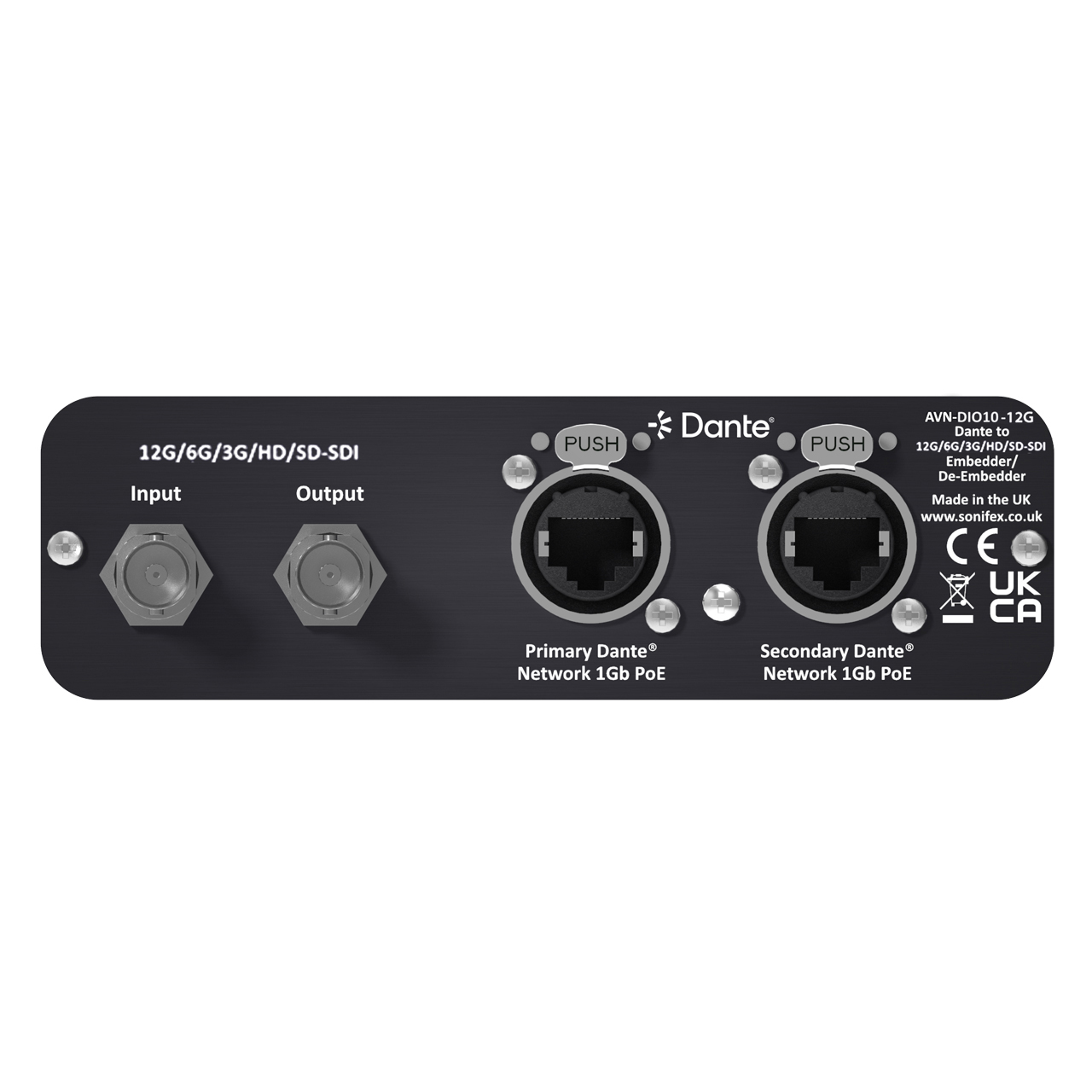

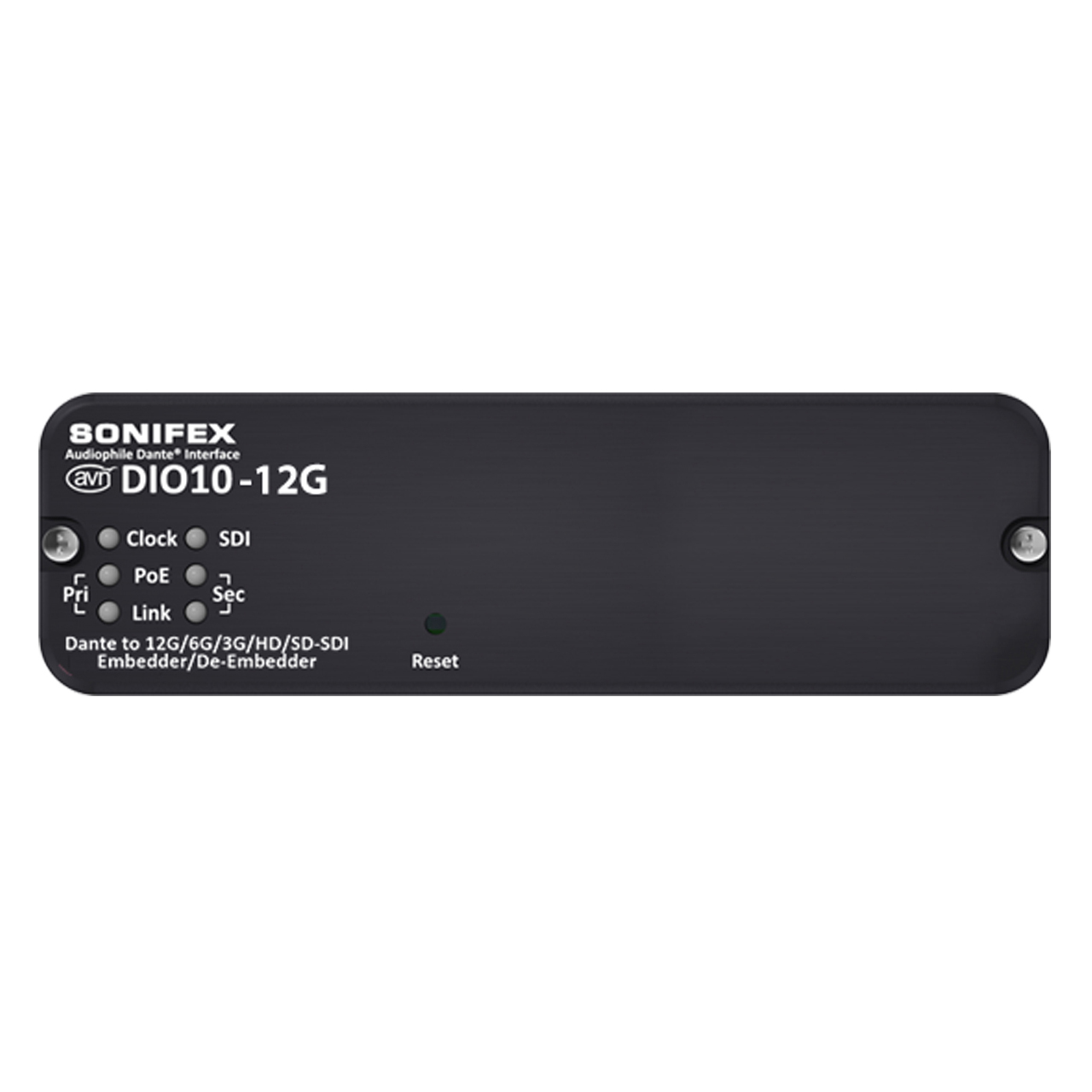

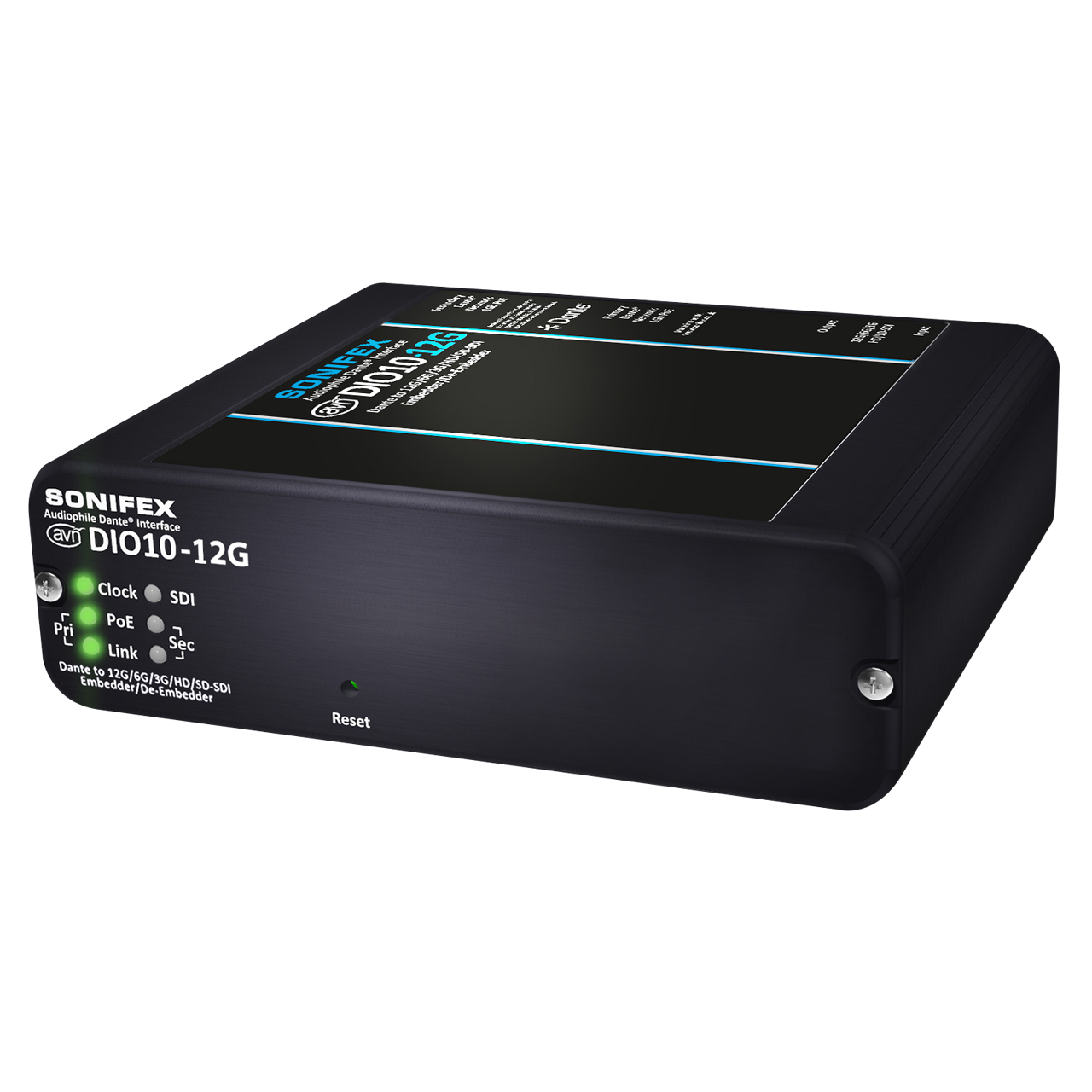

An upgrade to the extremely popular AVN-DIO10, the new Sonifex AVN-DIO10-12G now adds support for the full range of SDI standards from SD-SDI through to 12G-SDI. The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding of up to 64 channels. This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 12G/6G/3G/HD/SD-SDI equipment to the Danter AoIP audio network.
The AVN-DIO10-12G can be used for simultaneous embedding and de-embedding for up to 64 channels. This simple plug and play audio/video interface provides a convenient and elegant method of connecting legacy 12G/6G/3G/HD/SD-SDI equipment to the Danter AoIP audio network.
The AVN-DIO10-12G takes an SDI feed, de-embeds up to 64 audio channels and places them on channels 1-64 on the Dante network, mapped using Dante Controller. It simultaneously takes the 64 input channels mapped to the device on Dante Controller and re-embeds them onto the SDI output.
The unit also contains an integrated SDI generator to allow embedding onto the SDI output without the need of an SDI input. This is fully configurable through the web UI.
Other controls provided through the web UI allow embedding of Dante channels onto the SDI output per channel pair and there are two modes of operation: Insert Mode enabled allows embedding to overwrite existing SDI audio selectively per channel pair. Insert Mode disabled clears any incoming audio channels on the SDI output and then allows selective embedding onto the SDI output per channel pair.
