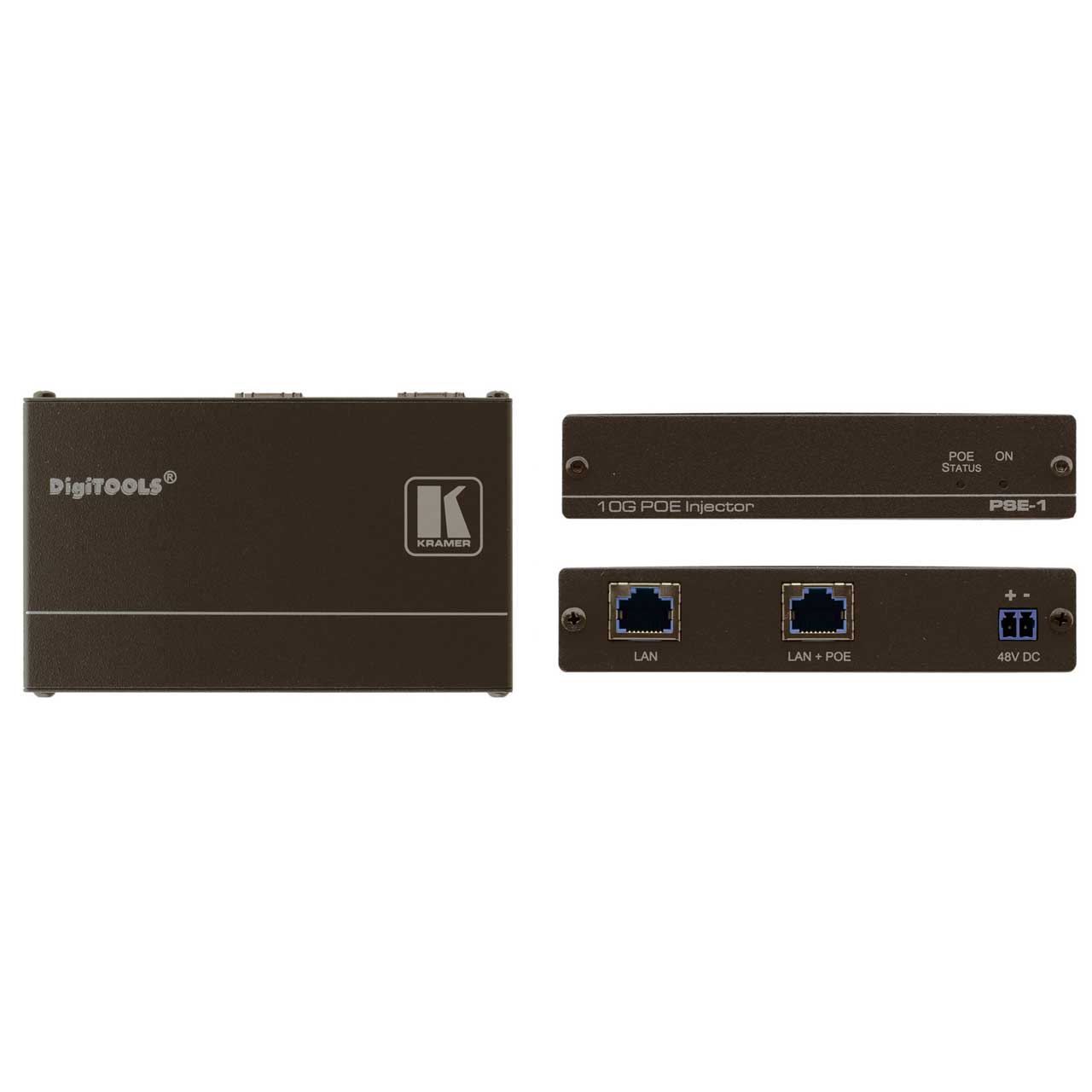

Kramer PSE-1 Single 10G HDBaseT & Ethernet Power Injector

PSE-1 - Overview

• Features:

  • Total Range - Up to 100m (328ft) @4K on shielded BC-DGKat623 or BC-HDKat6a cable (or equivalent).
  • 48V DC Power.


• Specifications:

  • INPUT/OUTPUT
  • 1 HDBaseT/LAN + PoE on an RJ-45 connector, 1 HDBaseT/LAN on an RJ-45 connector


  • OPERATION BANDWIDTH
  • Up to 10.2Gbps (3.4Gbps per data channel)


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI, HDCP


  • INDICATOR LEDS
  • ON, PoE STATUS


  • POWER SOURCE
  • 48V DC, 630mA (device plus remote power sink)


  • POWER PROVISION
  • Up to 13W


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • COOLING
  • Convection, vents


  • ENCLOSURE TYPE
  • Aluminum


  • RACK MOUNT
  • With optional adapter


  • FURNITURE MOUNT
  • With included rubber feet


  • VIBRATION
  • ISTA 1A in carton (International Safe Transit Association)


  • SAFETY REGULATORY COMPLIANCE
  • CE, c-UL, UL


  • EMI/EMC REGULATORY COMPLIANCE
  • CE, C-tick, FCC Class A, ICES, KCC, VCCI


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • PSE-1 Injector
  • Power Supply
  • Rubber Feet


• Warranty:

  • 7 years parts and labor.


• GTIN:

  7291063076306
