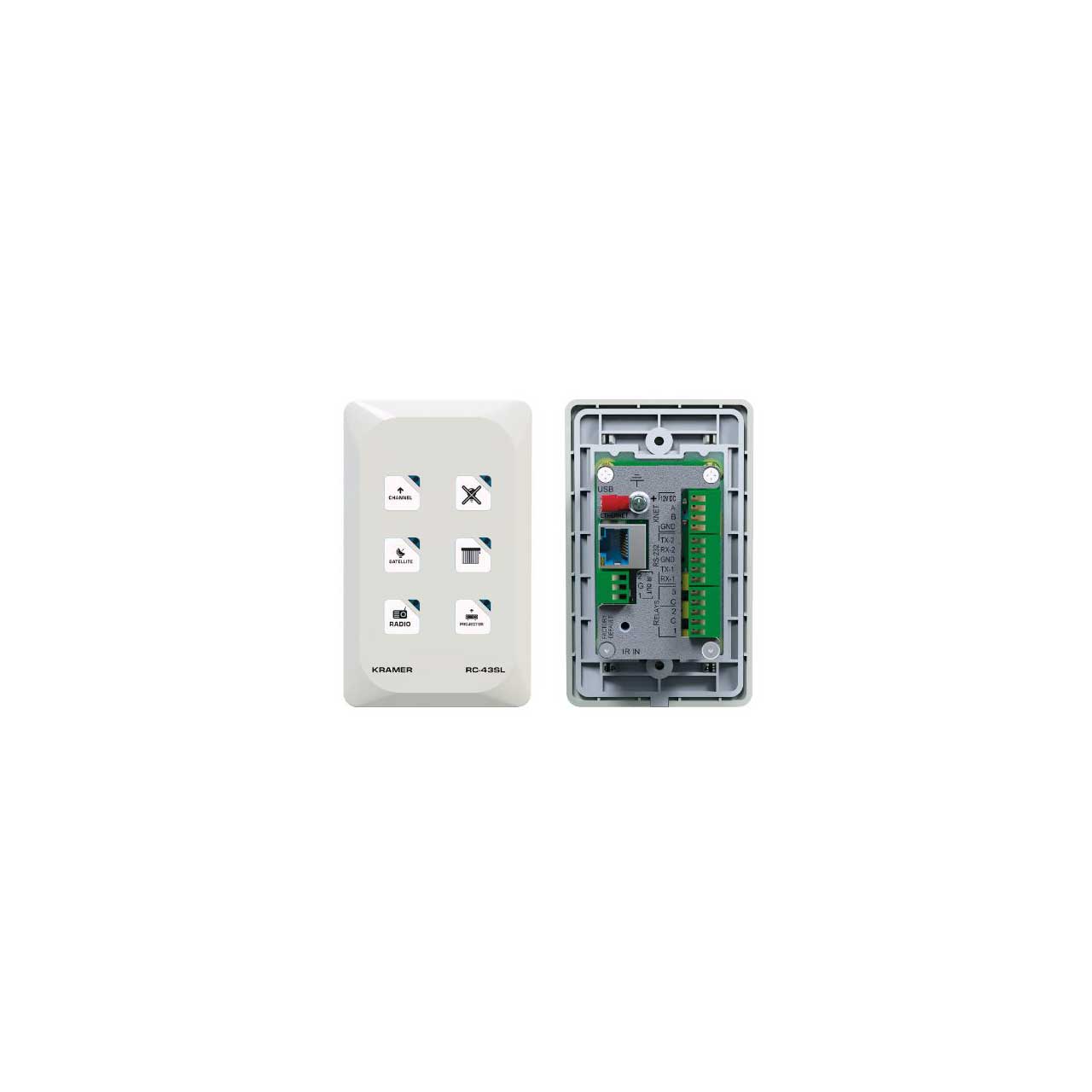

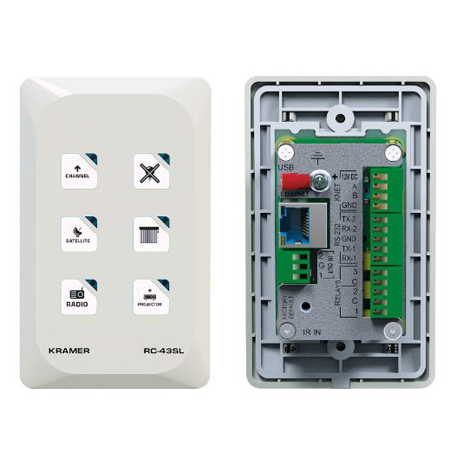

Kramer RC-43SL 6-Button Touch-Sensitive Ethernet Control Keypad (US)

ITEM #: KR-RC-43SL MFG #: RC-43SL

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Kramer
Free Shipping with $49 Minimum Order

List Price:

$440.00

Our Price:

$352.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RC-43SL - Overview

Includes both White + Black Design Frames

The Kramer RC-43SL is a touch-sensitive 6-button control keypad. Connected over Ethernet to Site-CTRL™ remote AV control, site management & monitoring system, as well as LAN-connected control gateways for extended controlled devices capacity. It also connects over KNET™ to master room controller and auxiliary keypads for remote keypad control. It can flexibly serve either as a standalone room controller, part of multi-units KNET™ system, or part of multi-unit Ethernet system managed by Kramer Site-CTRL™ site management platform. The RC-43SL is ideal for auditoriums and meeting rooms, for convenient control of their complex multimedia systems and other room facilities such as screens, lighting and shades.

Perfect for:
Control in presentation and conference room systems, boardrooms and auditoriums

  • Features:

    • Touch-Sensitive & Label Capable Buttons - 6 white-color LED-feedback buttons.
    • Custom Labeled, Removable Button Caps.

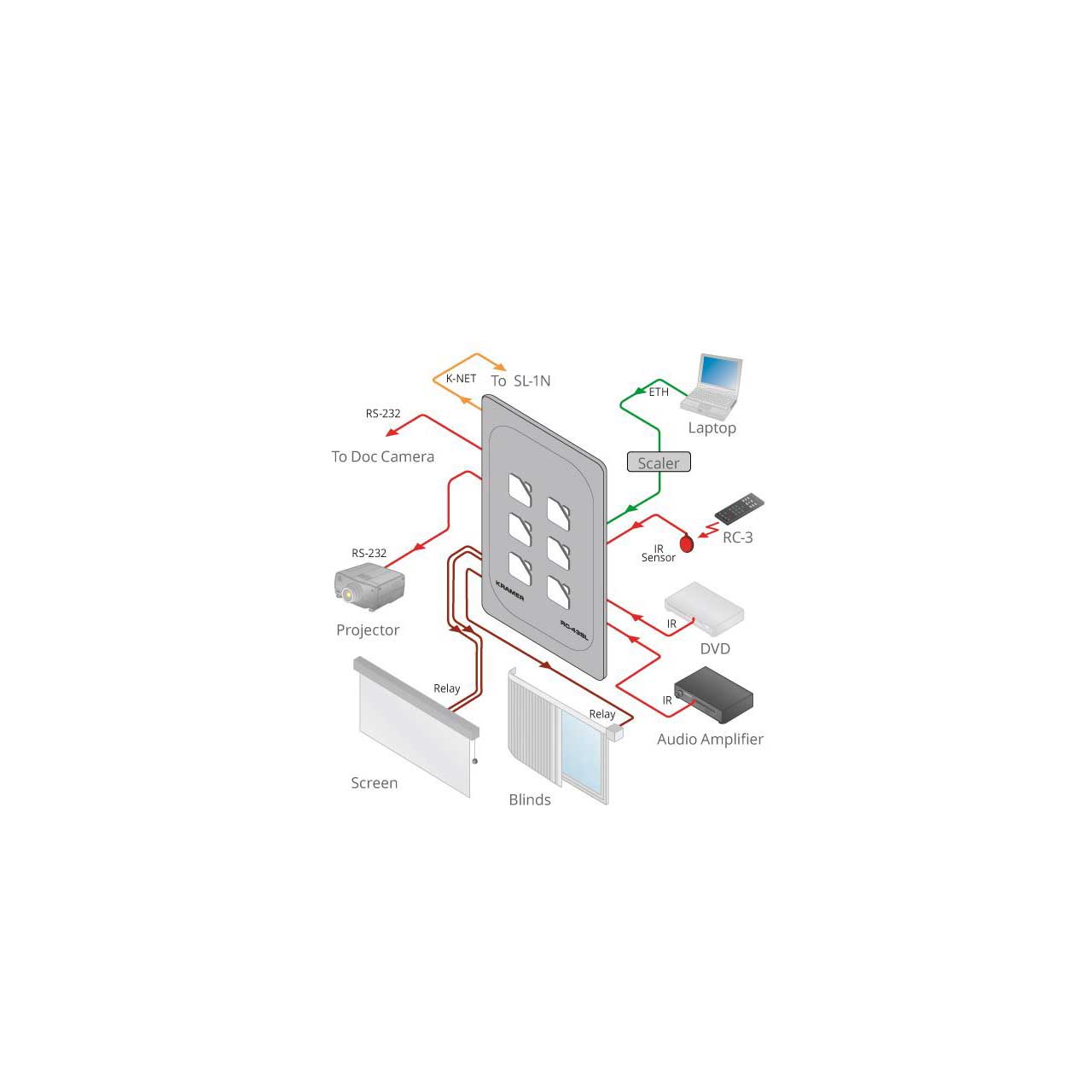

    • 1 K-NET™ Connector - Connect to master room controller, and auxiliary keypads for remote keypad control.
    • K-NET™ Single Link Connection - Provides a single keypad link cable-connectivity, carrying both power and keypad control.
    • 2 RS-232 Bi-directional Control Ports - Control a device via bi-directional serial control protocols.
    • 2 IR Emitter Control Ports - Control a device via IR control protocols.
    • 3 Relay Control Ports - Control a device via Relay Contact Closure, such as scrolling up and down screens, drapes, shades, and blinds.
    • IR Sensor Port - Learns commands from IR remotes.
    • Program Control - Program configuration with Kramer K-Config software.
    • Kramer Site-CTRL™Compatibility - For network management and remote control over the Ethernet port.
    • Mini USB Port - To upload configuration files, set the K-NET™ ID number, and power the device during configuration.
    • Mounting - In-wall, in standard 1 gang US wall junction boxes.
    • Easy Installation - Fits to standard in-wall boxes for simple and cost-reducing installation.


  • Specifications:

    • PORTS
    • 2 RS-232 and 1 K-NET on terminal block connectors, 1 Ethernet on an RJ-45 connector, 1 infrared sensor, 1 Mini USB for programming

    • OUTPUTS
    • 2 IR-out and 3 relays (36V AC or DC, 2A, 60V AC maximum on non-inductive load) on terminal block connectors

    • POWER CONSUMPTION
    • 12V DC, 100ma

    • OPERATING TEMPERATURE
    • 0° to +40°C (32° to 104°F)

    • STORAGE TEMPERATURE
    • -40° to +70°C (-40° to 158°F)

    • HUMIDITY
    • 10% to 90%, RHL non-condensing


  • Item Includes:

    • US-size RC-43SL Keypad
    • White + Black Design Frames
    • PSU + Power cord
    • Labeled Caps Set
    • Screwdriver


  • Warranty:

    • Standard one (1) year warranty


  • GTIN:

    7291063072858
