Kramer RC-63A-US 6-button KNET Control Keypad with Knob - White

Name: Kramer RC-63A-US 6-button KNET Control Keypad with Knob - White
Brand: Kramer
SKU: KR-RC-63A
Price: 492.00 USD
Availability: SoldOut

ITEM #: KR-RC-63A MFG #: RC-63A(W)

Kramer

Color:

Color

Availability: Sold Out

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

RC-63A(W) - Overview

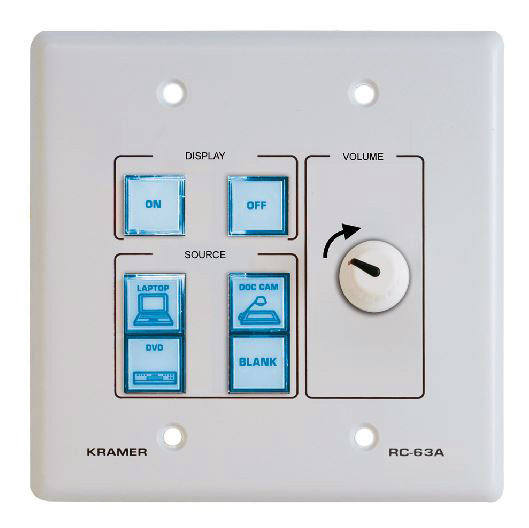

6 RGB-color, backlit buttons

The Kramer RC-63A is a 6-button control keypad. Connected over KNET™ to master room controller, and auxiliary keypads for remote keypad control, it can serve either as a standalone room controller or part of SummitView™system. The RC-63A is ideal for classrooms and meeting rooms, for convenient control of their multimedia devices and other room facilities such as screens and shades.

Perfect for:
Control in presentation and conference room systems, board rooms and auditoriums.

Features:
- Back Lit & Label Capable Buttons - 6 RGB-color, tactile feedback, backlit buttons. Buttons are grouped in 2 groups, 4 buttons in `SOURCES' group, and 2 buttons in `DISPLAY' group.
- Custom Labeled, Removable Button Caps.
- Analog Knob - Controls volume adjustments via bi-directional rotating 10V-range knob.

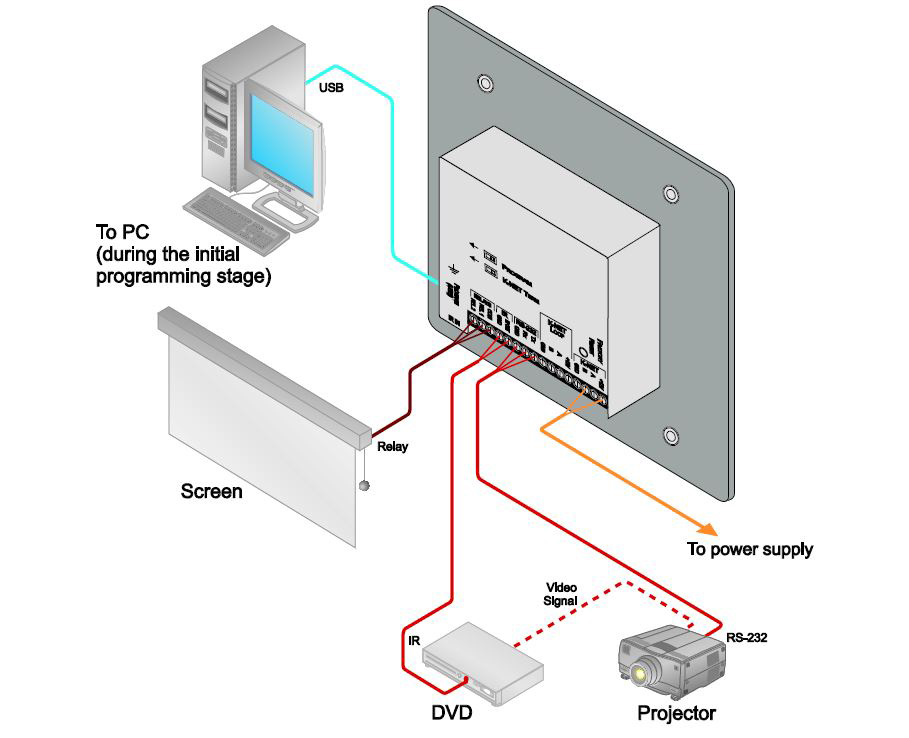

- 2 K-NET™ Connectors - Connects to master room controller, and auxiliary keypads for remote keypad control.
- K-NET™ Single Link Connection - Provides a single keypad link cable-connectivity, carrying both power and keypad control communication information.
- RS-232 Control Port - Controls a device via serial control protocols.
- IR Emitter Control Port - Controls a device via IR control protocols.
- Relay Control Port - Controls a device via relay contact closure.
- IR Sensor Port - Learns commands from IR remotes.
- Program Control - Program configuration with Kramer K-Config software.
- Keypad Lock-Out - Option for tampering prevention by locking and unlocking of the keypad buttons.
- Mini USB Port - For uploading configuration files, setting the K-NET™ ID number, and powering the device during configuration.
- Mounting - In-wall, in standard 2 gang EU, UK, and US wall junction boxes.
- Easy Installation - Fits standard in-wall boxes for simple and cost-reducing installation
Specifications:
- PORTS
- 1 RS-232 on terminal block connectors, 2 K-NET on terminal block connectors, 1 Mini USB for programming
- OUTPUT
- 2 relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non-inductive load), 1 IR emitter on terminal block connectors
- POWER CONSUMPTION
- 12V DC, 100mA
- FUSE
- 500mA, FSMD 2920
- ADAPTER
- SummitView™ kits: 12V, 5A
- independent: 12V, 500mA
- OPERATING TEMPERATURE
- 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE
- -40° to +70°C (-40° to 158°F)
- HUMIDITY
- 10% to 90%, RHL non-condensing
Item Includes:
- US-size RC-63A
- White Design Frame
- PSU
- Power Cord
- Label Set
- Screwdriver
Warranty:
- Limited 7 Year Warranty
GTIN:
7291063023669
