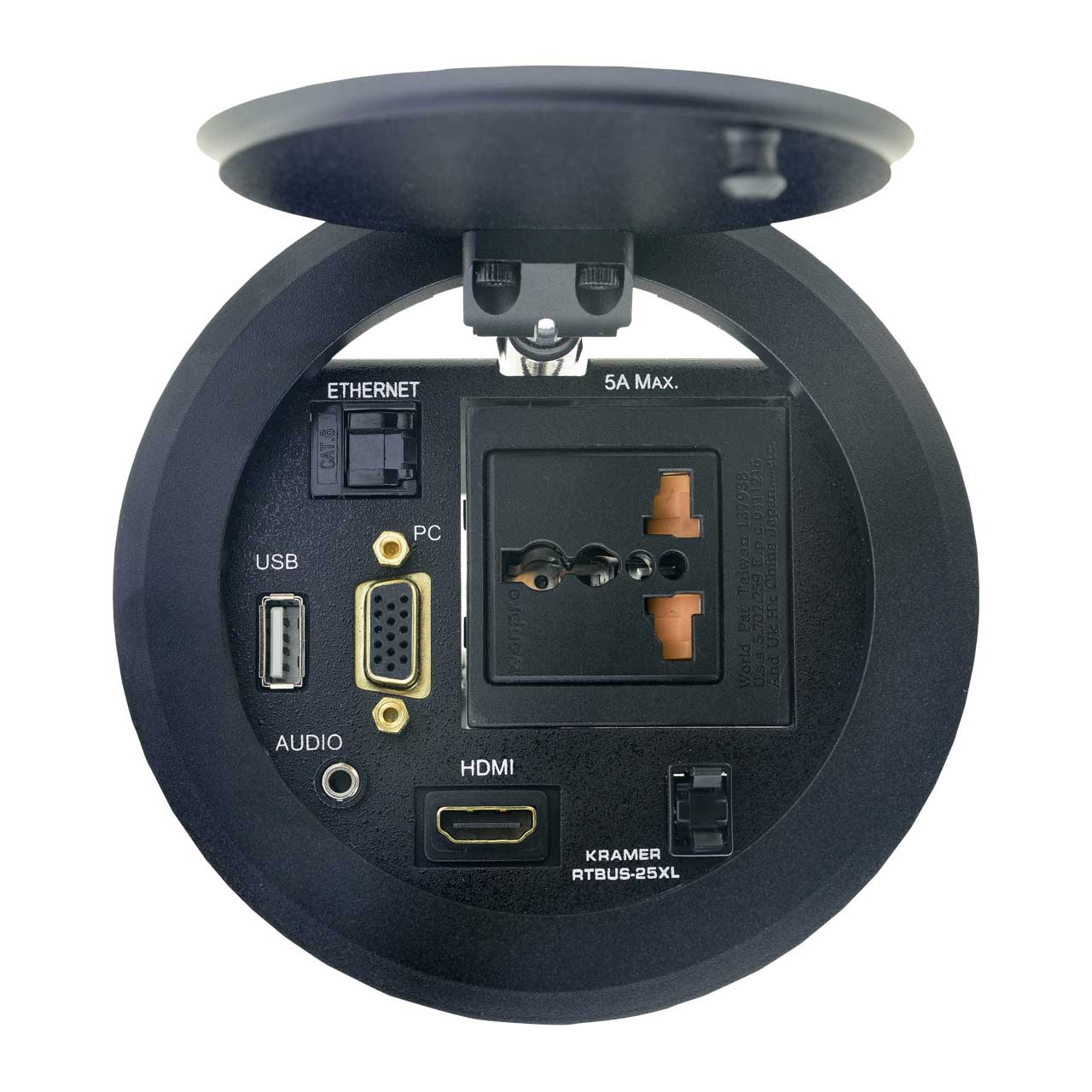

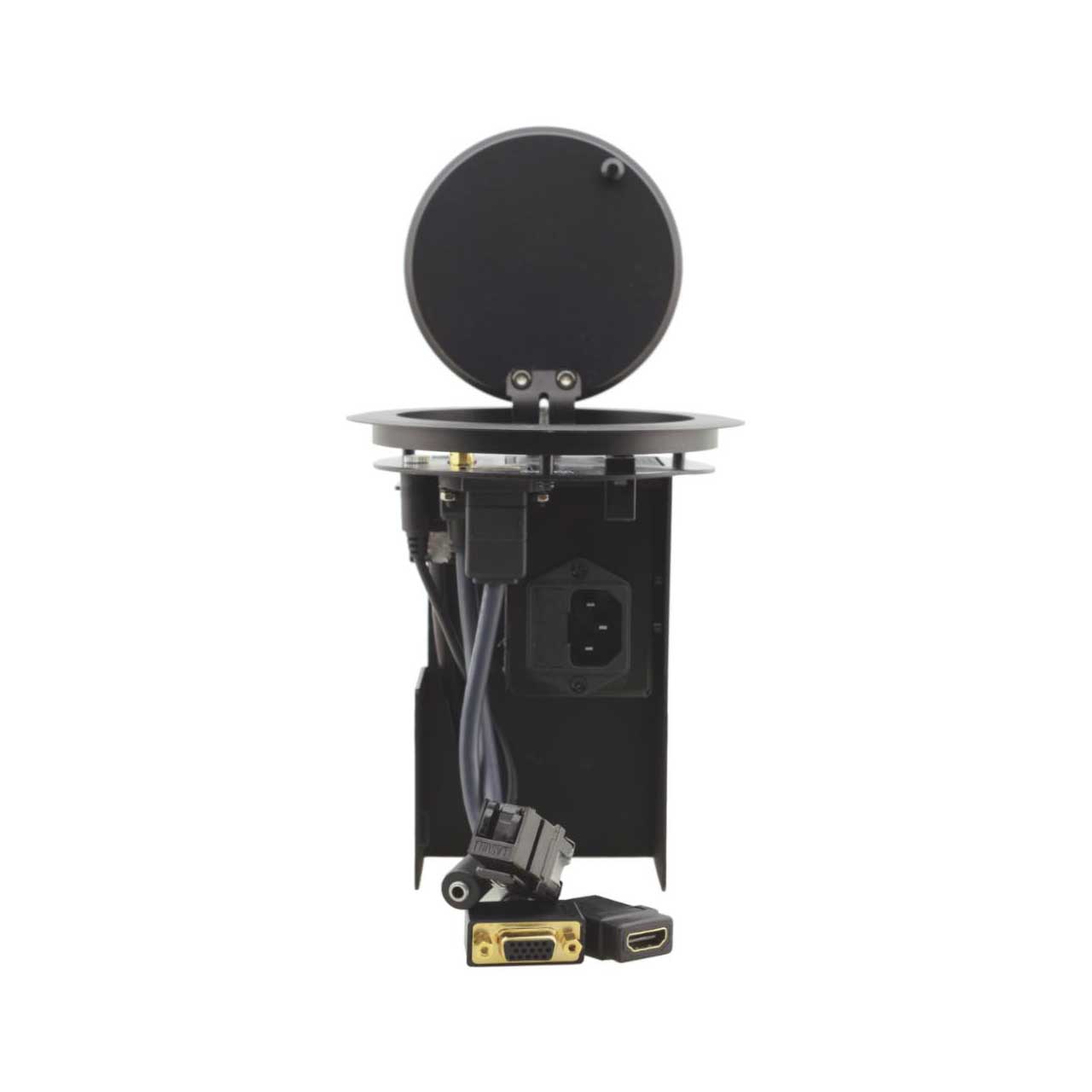

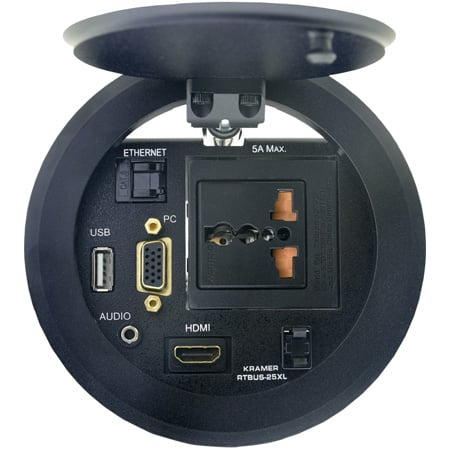

Kramer RTBUS-25XL Round Table Mount Multi-Connection Solution - Pneumatic Lid - 110mm Cut-Out

RTBUS-25XL - Overview

Inputs - 15-pin HD, USB, 3.5mm, HDMI, Ethernet!

• Features:

  • Inputs: 15-pin HD, USB, 3.5mm, HDMI, Ethernet

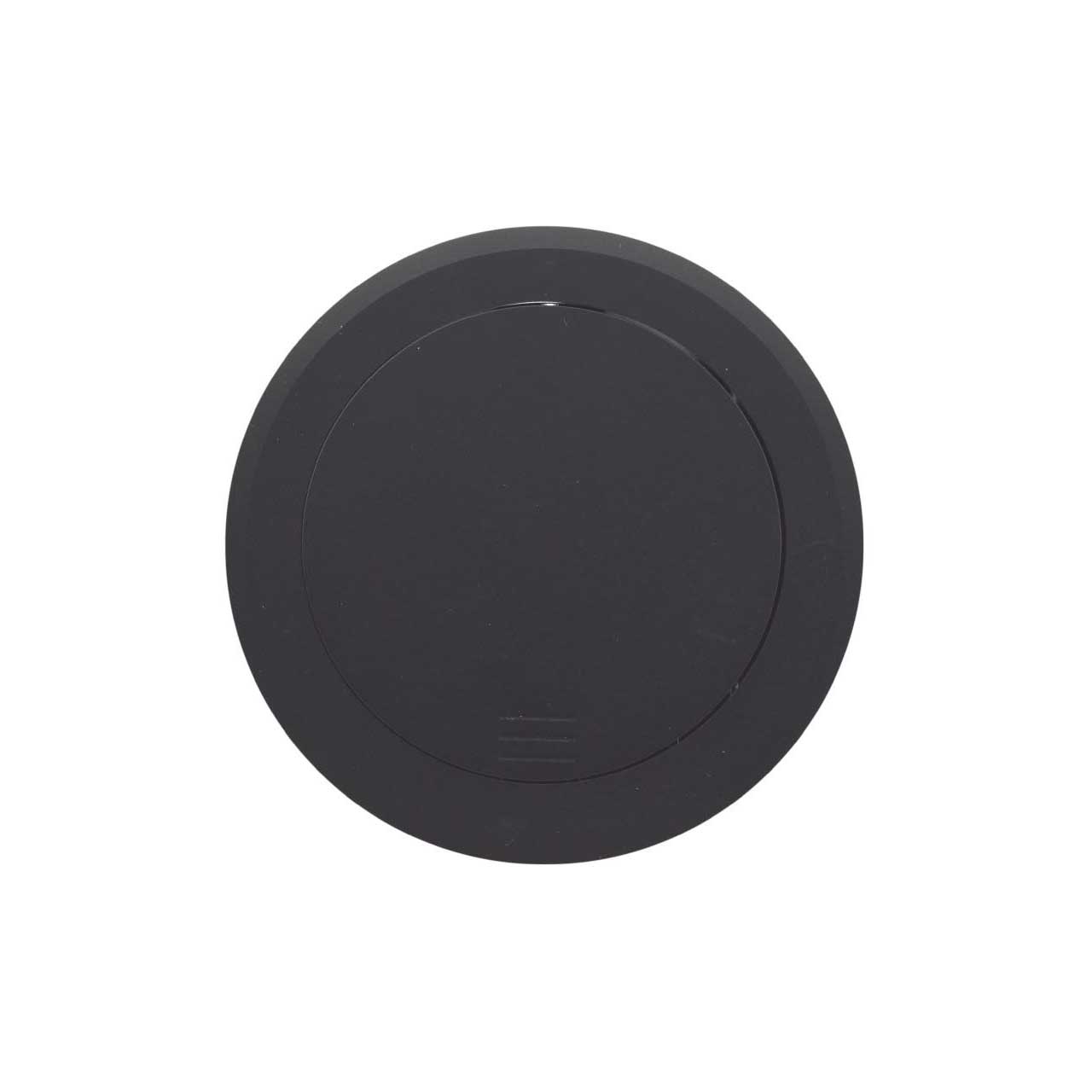

  • Cover: Pop-up pneumatic lid
  • Cutout Size (Mount Dimension): 4.33 Inches (110mm) diameter


• Specifications:

  • PORTS
  • 1 HDMI: On a female HDMI connector
  • 1 VGA: On a 15-pin d-sub connector
  • 1 Audio: On a 3.5mm mini jack
  • 1 Ethernet: On an RJ-45 connector
  • 1 USB: On a female USB type-A connector

    PHYSICALl
  • Cutout Size: 4.33" (110mm) diameter

    ENVIORNMENTAL CONDITIONS
  • Operating Temperature: 32° to 104°F (0° to 40°C)
  • Storage Temperature: -40° to 158°F (-40° to 70°C)
  • Humidity (RHL): 10 to 90% (non-condensing)

    POWER
  • Power rating varies according to the location and the power socket assembly (purchased separately) installed in the tbus, as follows:
  • Universal: 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • USA: 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Germany and EU: 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Belgium and France: 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Italy: 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Australia: 100-240V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Israel: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • South Africa: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Switzerland: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • England: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Brazil: 220V AC, 50/60Hz, 5A, maximum 5A per power outlet
  • Fuse Rating: T 6.3A 250V


• Item Includes:

  • RTBUS-25xl Round Table Connection Bus with 15-pin HD, USB, 3.5mm, HDMI & Ethernet connections
  • Mounting Brackets (2)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063089481
