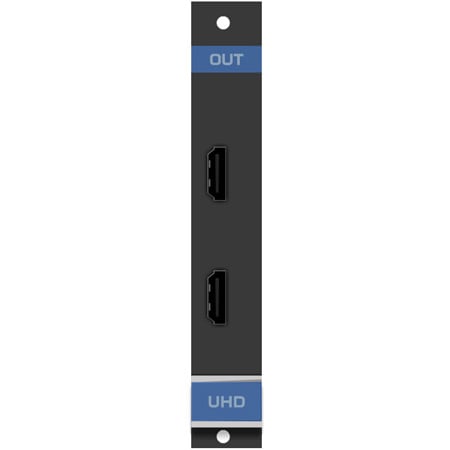

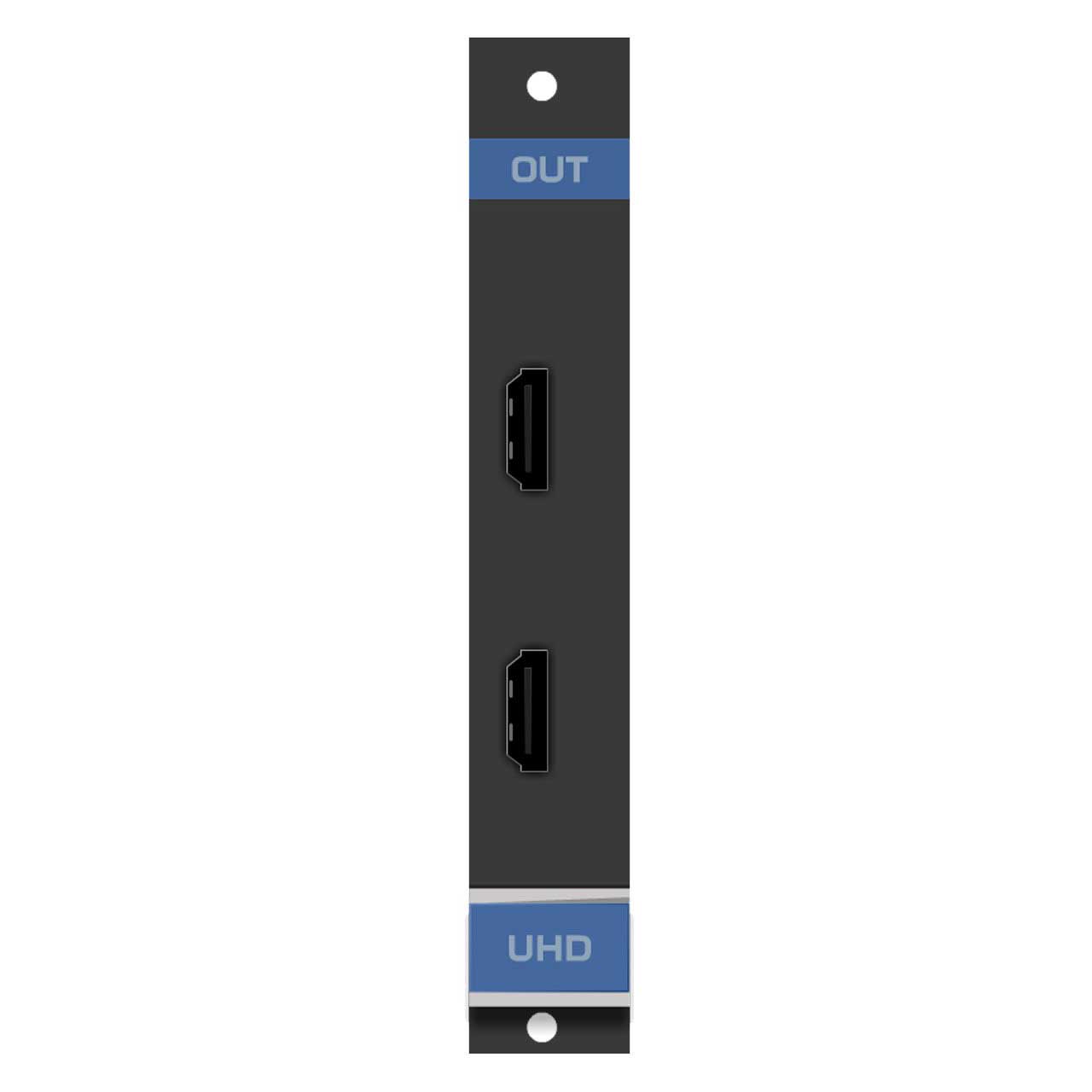

Kramer UHD-OUT2-F16 2 Channel 4K@60Hz (4:2:0) HDMI Output Card for VS-1616 Series Multi-Format Digital Matrix Switchers

UHD-OUT2-F16 - Overview

• Features:

  • Max. Data Rate - 8.91Gbps data rate (2.97Gbps per graphics channel)
  • Resolution Support - Up to 4K@60Hz (4:2:0)
  • HDMI Support - 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1
  • Multi-channel audio
  • HDTV Compatible
  • HDCP Compliant
  • EDID Capture - Copies and stores the EDID from a display device
  • 3D Pass-Through
  • Kramer Equalization and re-Klocking Technology


• Specifications:

  • Ports
  • 2 HDMI

    Bandwidth per channel
  • 2.97Gbps per graphics channel

    Total bandwidth
  • 8.91Gbps data rate

    Maximum range
  • 10m (32ft) - 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) - 1080p 12 bit (deep color)

    3D pass through
  • Supported

    HDMI support
  • 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, 7.1 multi-channel audio

    Power consumption
  • 4W

    Operation temperature
  • -40° to +70°C (-40° to 158°F)

    Humidity
  • 10% to 90%, RHL non-condensing

    Dimensions
  • 19cm x 13cm x 2cm (7.5" x 5.1" x 0.8") W, D, H

    Product weight
  • 0.23kg (0.51lbs) approx

    Shipping weight
  • 0.37kg (0.82lbs) approx

    Standard compliance
  • HDCP 1.4, HDMI 1.4, HDTV compatible

    Safety regulatory compliance
  • CE

    Environmental regulator compliance
  • Complies with appropriate requirements of RoHs and WEEE

    Produect dimension
  • 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H

    Product weight
  • 0.2kg (0.5lbs) approx.

    Shipping dimension
  • 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

    Shipping weight
  • 0.4kg (0.8lbs) approx.


• Item Includes:

  • UHD-OUT2-F16 output card


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063078218
