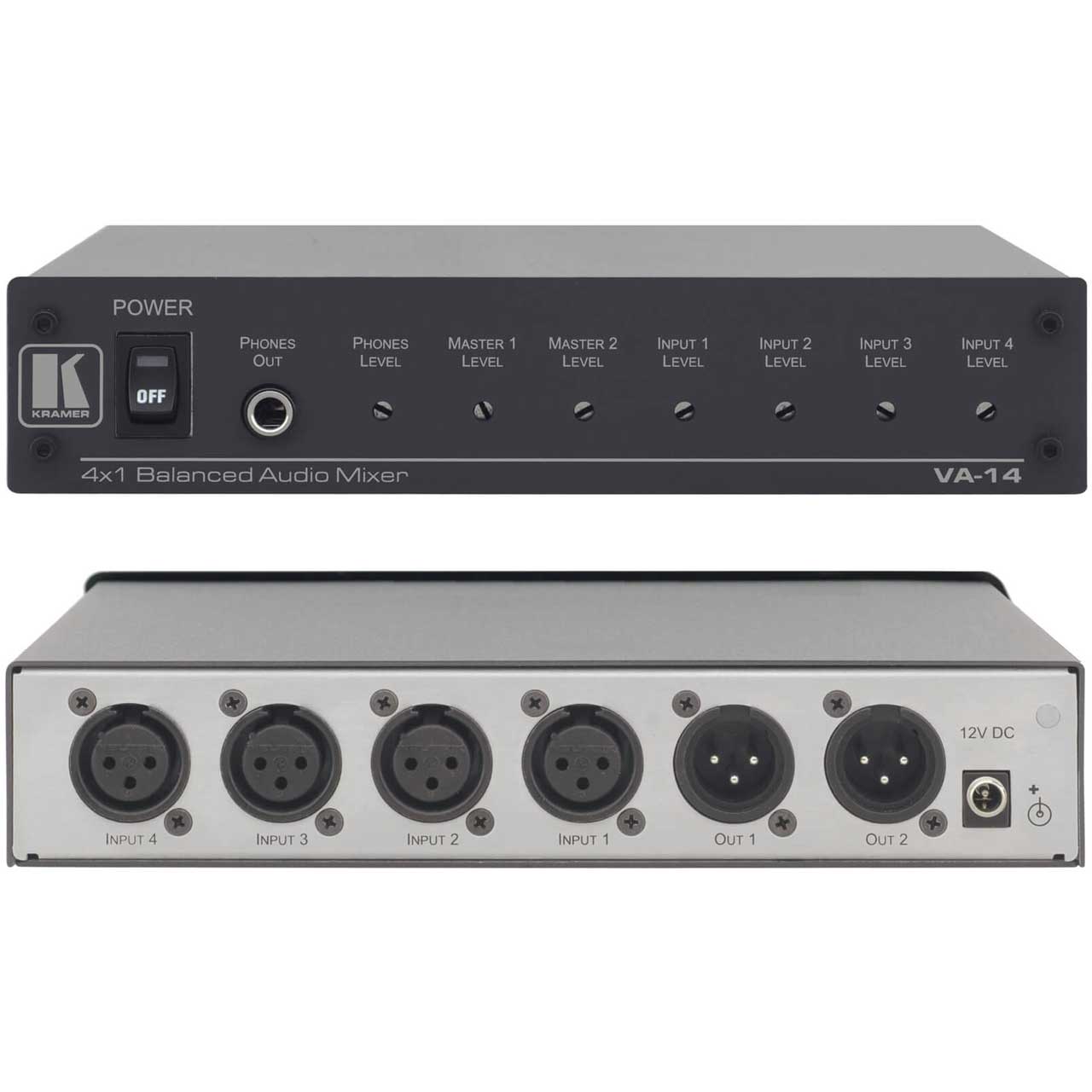

Kramer VA-14 4-Channel Balanced Audio Mixer

VA-14 - Overview

High-performance 4-channel XLR mixer for balanced mono audio

• Features:

  • S/N Ratio - Mic in, phones out: 45.3dB; line in, phones out: 83.3dB; line in, line out: 84.3dB; mic in, line out: 64dB.
  • Level (Gain) Control - Individual for each input & master and headphone output.
  • Phantom Power - 48V DC on each input (individually selectable).
  • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.


• Specifications:

  • Inputs: 4 balanced mono audio, line or mic, on XLR (F) connectors
  • Outputs: 2 balanced mono audio on XLR (M) connectors; 1 headphone output on a 6.5mm connector
  • Max. Output level: Line 20Vpp; phones 4.5Vpp; mic 300mVpp
  • Bandwidth (-3DB): >40kHz
  • S/N Ratio: Mic in, phones out: 45.3dB; line in, phones out: 83.3dB; line in, line out: 84.3dB; mic in, line out: 64dB
  • Controls: Line in, line out: <-57dB to - 14.3dB; mic in, line out; <0dB to 60.5dB; line in, phones out: <-47dB to - 18dB; mic in, phones out: <0dB to 58.9dB; in level and master/phones level, min to max position for both line in, mic out range: <-50dB to - 25dB; mic in, mic out range:<0dB to 21.6dB; underside slide switches: inputs: line/mic and +48V phantom ON/OFF; Outputs: Line/Mic
  • Coupling: IN: AC; OUT: bal line/mic, DC; phones, AC
  • Audio thd + noise: Line in, line out: 0.007%; mic in, line out: 0.15%; line in, phones out: 0.085%; Mic in, phones out: 0.38%
  • Audio 2nd harmonic: Line in, line out: 0.001%; mic in, line out: 0.005%; line in, phones out: 0.009%; mic in, phones out: 0.024%
  • Power consumption: 12V DC, 250mA
  • Included accessories: Power supply
  • Product dimension (WxDxH): 8.45" x 6.42" x 1.72"
  • Product weight: 0.7kg (1.5lbs) approx.
  • Shipping dimension (WxDxH): 13.82" x 8.35" x 2.83"
  • Shipping weight: 1.1kg (2.3lbs) approx.


• Item Includes:

  • VA-14 4x1 Balanced Audio Mixer
  • Power supply (12V DC) (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063008277
