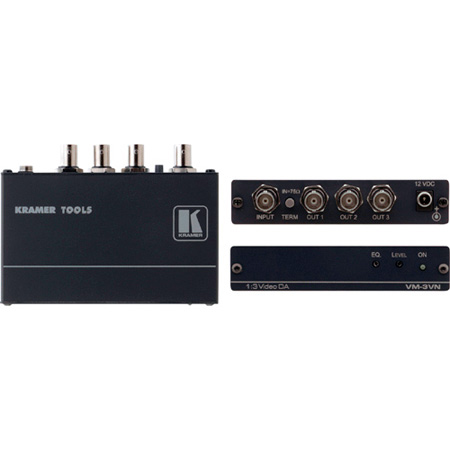

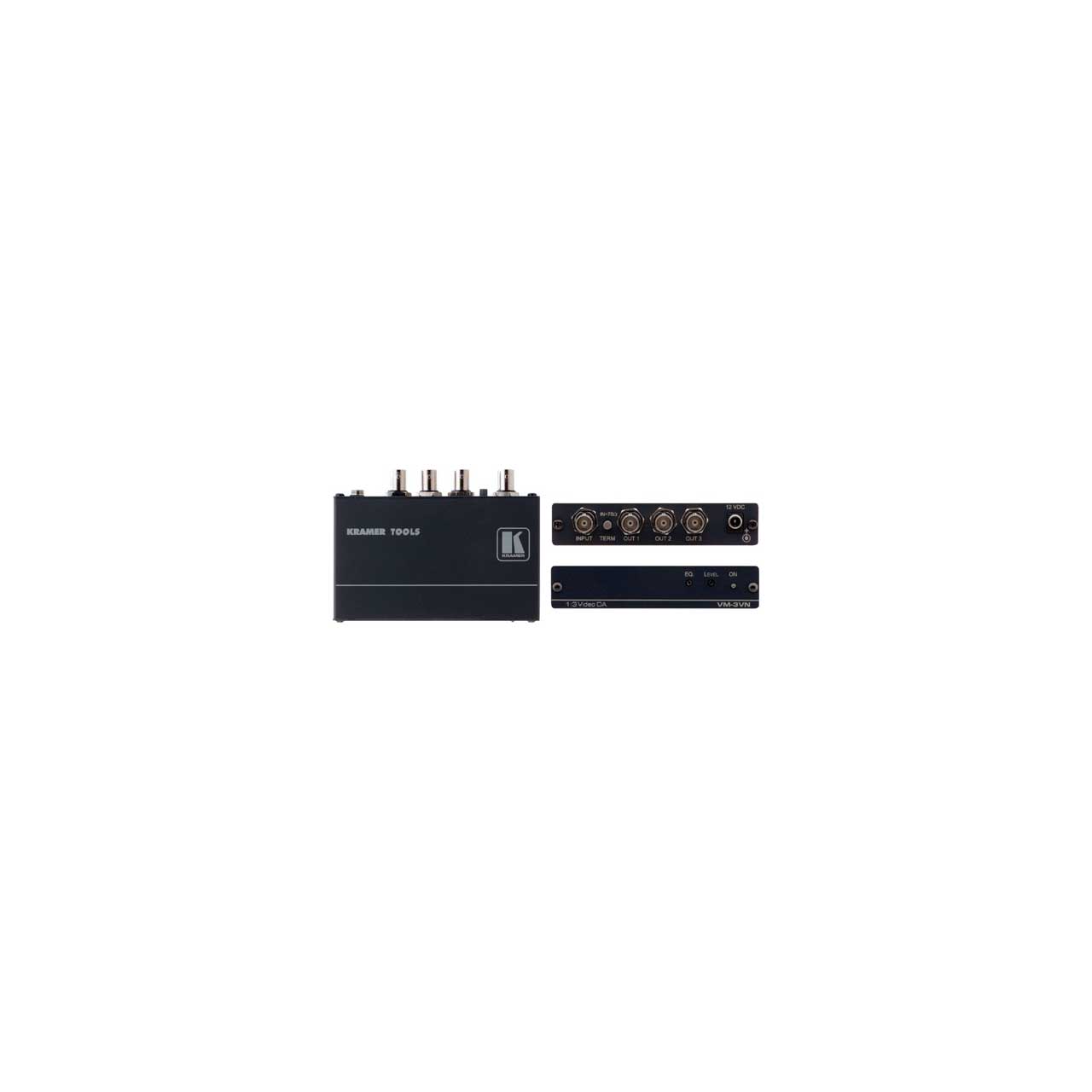

Kramer VM-3VN 1:3 Composite Video Distribution Amplifier

ITEM #: KR-VM-3VN MFG #: VM-3VN

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Kramer
Free Shipping with $49 Minimum Order

List Price:

$200.00

Our Price:

$160.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VM-3VN - Overview

High Bandwidth - 430MHz (-3dB)

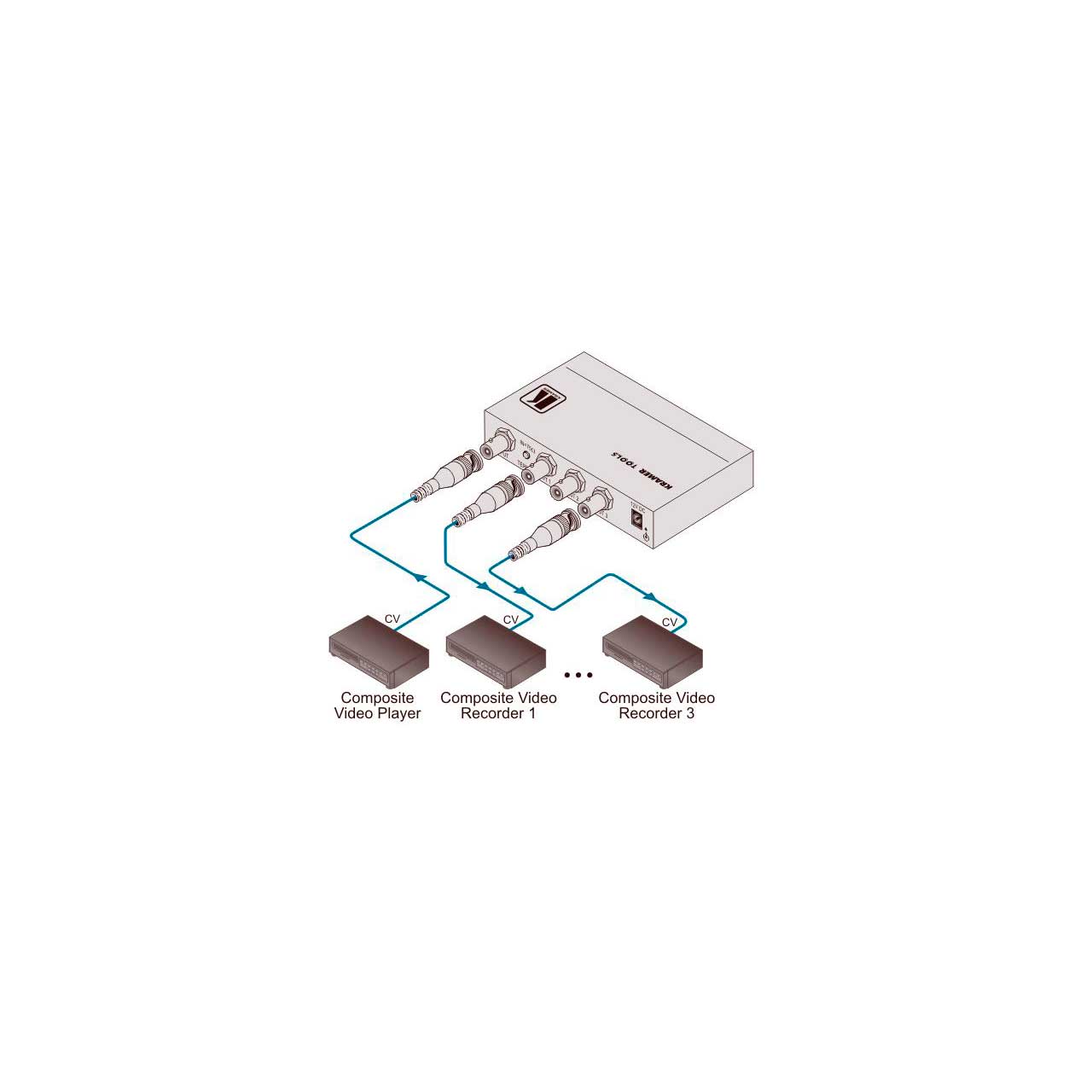

The Kramer VM-3VN is a distribution amplifier for composite video signals. The unit takes one input, provides correct buffering and isolation and distributes the signal to three identical outputs.

Perfect for:
Audio duplication studios, delivering high quality audio and video duplicates.
Broadcast and production studios for signal distribution.
Presentation and multimedia distribution.
Field distribution.

  • Features:

    • High Bandwidth - 430MHz (-3dB).
    • Selectable Input Signal Termination.

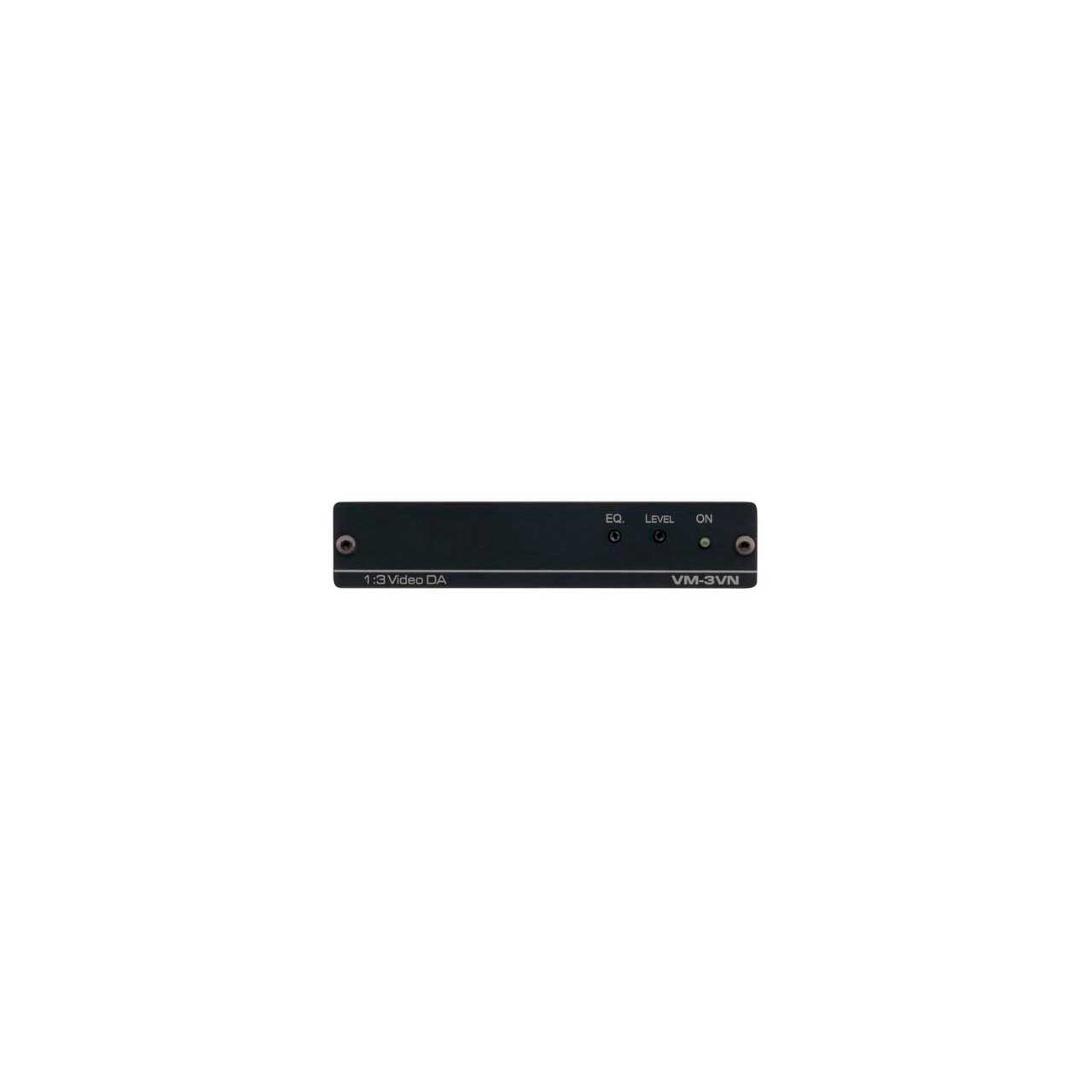

    • Level (Gain) & EQ (Peaking) Controls.


  • Specifications:

    • INPUT
    • 1 composite video on a BNC connector

    • OUTPUTS
    • 3 composite video on BNC connectors

    • MAX. OUTPUT LEVEL
    • 1.8Vpp

    • BANDWIDTH (-3DB)
    • 430MHz

    • DIFF GAIN
    • 0.12%

    • DIFF PHASE
    • 0.03Deg

    • K-FACTOR
    • <0.05%

    • S/N RATIO
    • 74.3dB

    • CONTROL
    • Level: - 1.6 to +6dB
    • Equalization: 0 to +6dB

    • COUPLING
    • AC

    • POWER CONSUMPTION
    • 12V DC, 27mA


  • Item Includes:

    • VM-3VN Amplifier
    • Power supply
    • Mounting bracket


  • Warranty:

    • Limited 7 Year Warranty


  • GTIN:

    7291063002879
