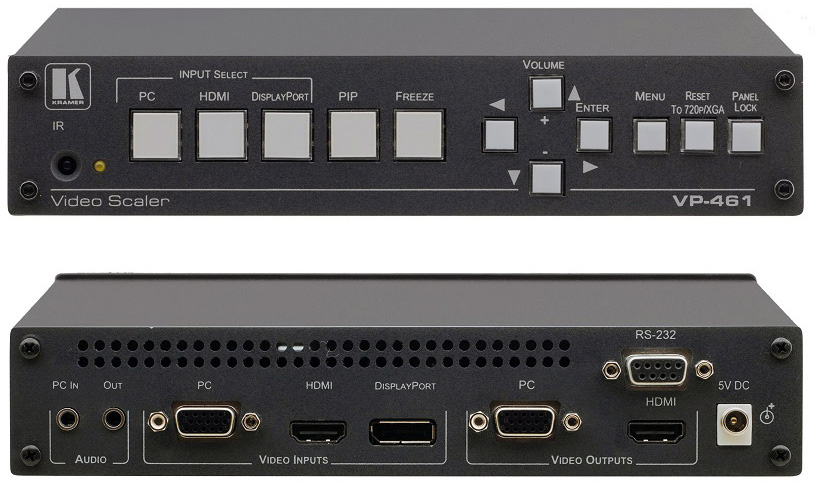

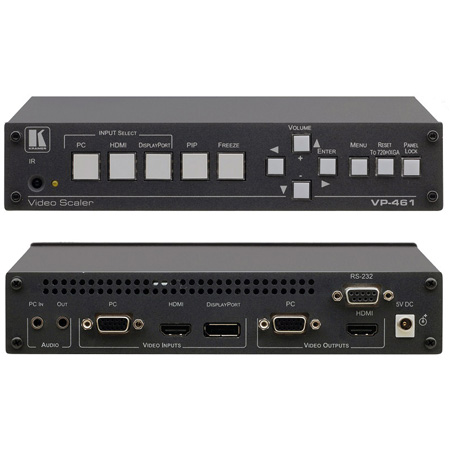

Kramer VP-461 3-Input Analog & HDMI ProScale Presentation Switcher/Scaler

VP-461 - Overview

HDTV Compatible

• Features:

  • K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra-stable picture-in-picture, picture-and-picture, and split screen capability. Any video source can be inserted into or positioned next to a DisplayPort video source or vice versa with window positioning and sizing controls.
  • Kramer's PixPerfect™Scaling Technology - Kramer's precision pixel mapping and high quality scaling technology. High-quality 3:2 and 2:2 pull down de-interlacing and full up and down-scaling of all video input signals.
  • Ultra-Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions are clean and ultra fast. The video fades to black and the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches.
  • HDTV Compatible.
  • 40 Output Resolutions - Up to WUXGA, 1080p and 2K.
  • HDMI Deep Color Support.
  • Luma Keying - Via PIP window.
  • Vertical Keystoning.
  • Built-in ProcAmp - Color, sharpness, contrast, brightness and gamma are set individually for each input.
  • Powerful Noise Reduction Filters - Temporal, block, mosquito and combing.
  • Picture Zooming - Both on main and PIP picture.
  • De-interlacing - 3:2 and 2:2 pull-down; 24sf handling.
  • Multiple Aspect Ratio Selections - Follow input, follow output, best fit, letterbox and overscan.
  • Dual Window Display - Preset picture-in-picture, picture-and-picture and split screens, as well as customized window layouts.
  • Advanced EDID Management - For each input and each output.
  • Non-Volatile Memory - Saves final settings.
  • Firmware Upgrades - Via RS-232.
  • Flexible Control Options - Front panel buttons, OSD (on-screen display) via front panel buttons or IR remote (remote control included), Control Application software for use via RS-232.


• Specifications:

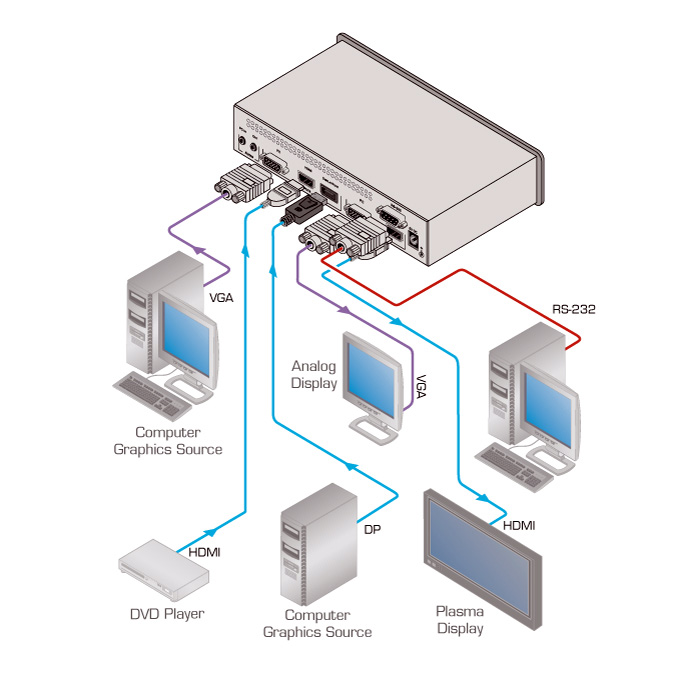

  • INPUTS
  • 1 computer graphics on a 15-pin HD connector, 1 HDMI connector, 1 DisplayPort connector, 1 unbalanced stereo audio on a 3.5mm mini jack connector


  • OUTPUTS
  • 1 computer graphics on a 15-pin HD connector, 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack connector


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI Deep Color


  • OUTPUT RESOLUTIONS
  • 640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50, 1280x1024@60, 1280x1024@75, 1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60, 1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2K50, 2K60


  • CONTROLS
  • Front panel buttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector


  • POWER CONSUMPTION
  • 5V DC, 2.90A


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VP-461 Switcher/Scaler
  • Power supply
  • IR remote control
  • Control application program via RS-232 (PC)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063059026
