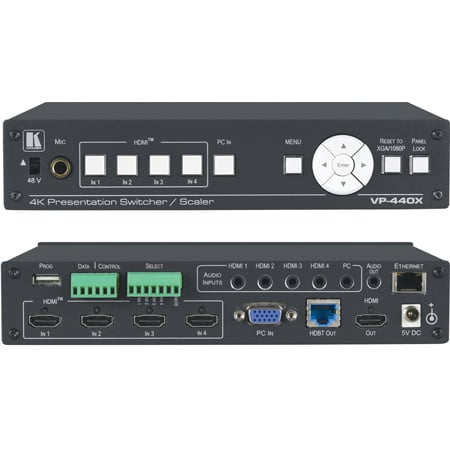

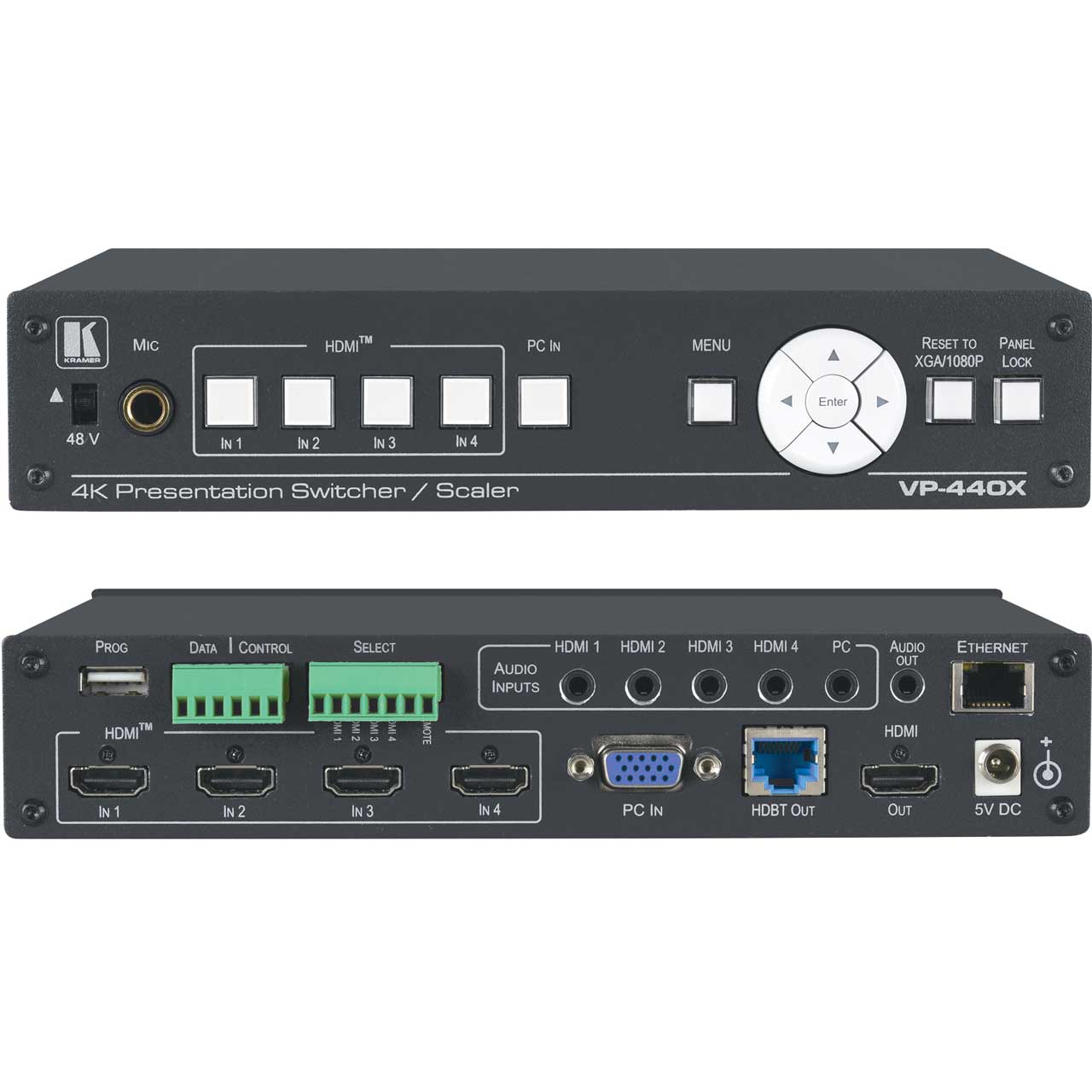

Kramer VP-440X 18G 4k Presentation Switcher/Scaler with HDMI & HDBaseT Simultaneous Outputs

VP-440X - Overview

High-Performance Professional Scaler

• Features:

  • High-Performance Professional Scaler - Up-scales, down-scales and cross-scales up to resolutions of 4K@60 (4:4:4). The output resolution can be set to the native resolution either of the sinks, or manually set to another resolution. When the product is configured to scale to 18G 4K resolutions, the HDBT output automatically down-samples the chroma sampling to 4:2:0 coding.
  • Smooth Switching - Constant output sync, prevents output glitches while switching between inputs, even when no video is detected.
  • Flexible Digital and Analog Audio - Select a dedicated unbalanced analog audio input to embed into each input. In addition, a microphone input is provided on the front panel for mixing, switching or talk-over. Any of the signals can play audio through the unbalanced audio output.
  • Powerful Audio Processing - Supports DSP technology including audio equalization, mixing, delay, and microphone talk-over (ducking).
  • HDMI Signal Extension - HDCP 2.2 and HDCP 1.4 compliant.
  • HDR - Supports HDR10.
  • EDID Pass-Through - EDID passed through from the source to the display.
  • CEC Support - Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, on each extension line, enabling data transmission and control of devices.
  • Diverse Control Options - Control the unit using an OSD (On-Screen Display) via front panel buttons, embedded web pages via Ethernet and/or serial communication via RS-232 transmitted by a PC, touch screen system or other serial controller. Additionally, connect to the contact closure connector for remote switching of sources and for toggling the display ON and OFF.
  • Easy Installation - 1/2 19 inch size enables mounting in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 4 HDMI : On female HDMI connectors
  • 1 VGA: On a 15-pin HD connector
  • 5 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack
  • 1 Microphone: On a 6.3mm jack

    OUTPUTS
  • 1 HDMI : On a female HDMI connector
  • 1 HDBaseT: On an RJ-45 connector
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack

    PORTS
  • 1 Ethernet: On an RJ-45 female connector
  • 1 DATA RS-232: On a 3-pin terminal block for serial link extension
  • 1 CTRL RS-232: On a 3-pin terminal block for device control
  • 6 Contact Closure Switches: On a 7-pin terminal block connector
  • 1 USB: On a female USB-A connector for firmware upgrade

    VIDEO
  • Max. Resolution: 4K@60Hz (4:4:4)
  • Max Data Rate: 18Gbps (6Gbps per graphic channel)
  • Standards Compliance: HDCP 1.4 & 2.2. Supports HDR10
  • Input Resolutions HDMI: 480i/576i, 480p/576p, 720p@60/50Hz, 1080i@60/50Hz, 1080p@60/50Hz, 1080p@24/25/30Hz, 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280X960@60Hz, 1280X720@60Hz, 1920X1080@60Hz, 1600X1200@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600X900@60Hz RB, 1680x1050@60Hz, 1920x1200@60Hz RB, 2048x1080@24/25/30/50/60Hz, 4K/2K@24/25/30/50/60Hz, 4K/2K(4:2:0)@50/60Hz
  • Input Resolutions VGA: 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280X960@60Hz, 1280X720@60Hz, 1920X1080@60Hz, 1600X1200@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600X900@60Hz RB, 1680x1050@60Hz, 1920x1200@60Hz RB
  • Output Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz
  • 4K Output Resolutions - HDMI: 4K@24/25/30/50/60Hz (4:4:4)
  • 4K Output Resolutions - HDBaseT: 4K@24/25/30Hz (4:4:4), 4K@50/60Hz (4:2:0)
  • Switching Time Between Inputs: 3 seconds
  • Video Latency: 1-2 frames

    EXTENSION LINE
  • Compliance: HDBaseT 1.0
  • Up to 40m (130ft): At 4K@60Hz (4:2:0)
  • Up to 70m (230ft): At full HD (1080p @60Hz 24bpp)
  • Note: When using Kramer HDBaseT cables

    POWER
  • Source: 5V DC, 4A
  • Consumption: 18-19W

    ENCLOSURE
  • Cooling: Convection ventilation
  • Type: Aluminum
  • Size: 1/2 19"

    ENVIORNMENTAL CONDITIONS
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity: 10 to 90%, RHL non-condensing


• Item Includes:

  • VP-440X Switcher/Scaler
  • Power adapter and cord (1)
  • Rubber Feet (4)


• Warranty:

  • 7 Year Limited Warranty


• GTIN:

  7291063089818
