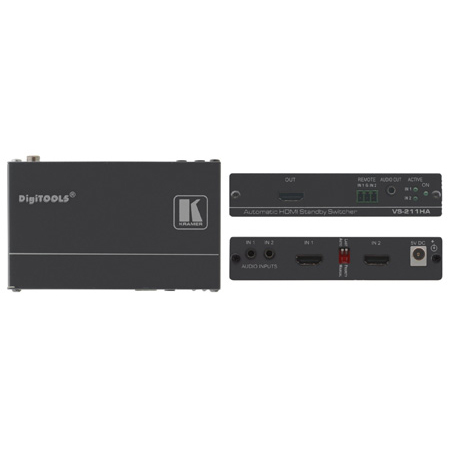

Kramer VS-211HA 2x1 Automatic HDMI Standby Switcher with Audio

VS-211HA - Overview

HDMI & HDCP Compliant

• Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDMI & HDCP Compliant.
  • HDTV Compatible.
  • Advanced Auto Switching - Based on video clock detection.
  • Automatic Output Shutdown - If no input signal is detected after a configurable idle period.
  • 3D Pass Through.
  • EDID PassThru - Passes EDID signals from display to source.
  • Audio Return Channel (ARC) Pass Through.
  • Parallel Unbalanced Stereo Audio Switching.
  • Contact Closure Remote Control - For manual switching override.
  • DIP-Switches - For setting the switching mode.


• Specifications:

  • INPUTS
  • 2 HDMI connectors, 2 unbalanced stereo audio on 3.5mm mini jacks


  • OUTPUTS
  • 1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack


  • MAX. DATA RATE
  • 6.75Gbps (2.25Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • Supports HDMI and HDCP


  • CONTROLS
  • Contact closure on a 3-pin terminal block, 2 priority DIP-switches


  • INDICATORS
  • ON and active input LEDs


  • POWER CONSUMPTION
  • 5V DC, 120mA (without load), 350mA (fully loaded)


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VS-211HA Switcher
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063067953
