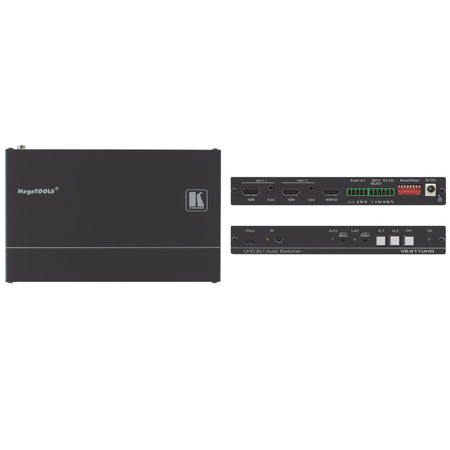

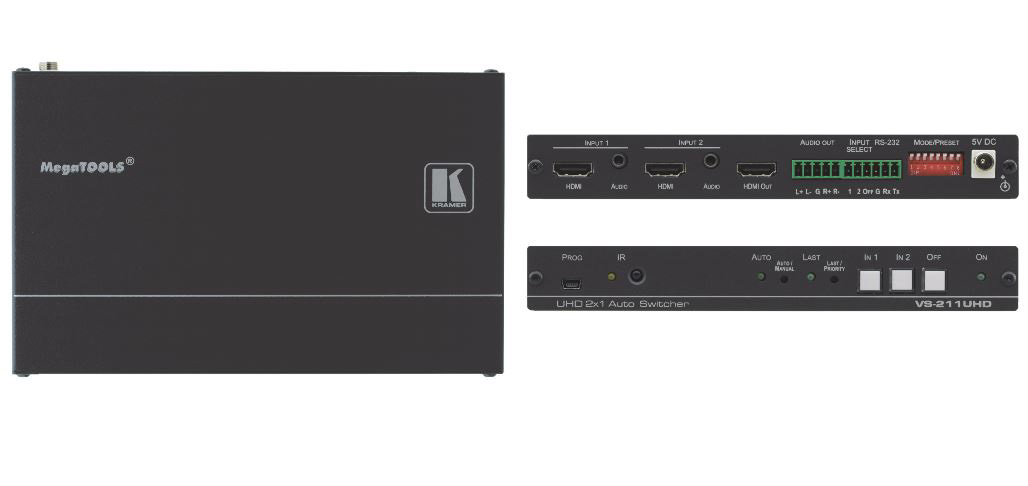

Kramer VS-211UHD 2x1 4K60 4:2:0 HDMI Auto Switcher with Audio

VS-211UHD - Overview

HDTV Compatible

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • Compliance - HDCP and DVI 1.0.
  • Deep Color, 3D, up to 7.1 uncompressed audio channels, ARC (supported on Input 1 only).
  • Features Kramer reKlocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • HDTV Compatible.
  • Customized Audio Output - Embed a companion analog audio signal into its HDMI input signal, de-embed the audio from the HDMI input and route it to the balanced stereo audio line out, de-embed HDMI ARC from the output and route it to the balanced stereo audio line out, or route the analog audio inputs directly to the stereo audio line out.
  • Automatic Video Input Detection & Selection.
  • Auto Power Off - When no HDMI input for 10 seconds (selectable).
  • Step-In Over HDMI Technology.
  • Active Switching - Selectable manual or fast auto switching according to last connected or preset priority.
  • Selectable HDCP Switching.
  • EDID Configuration Options.
  • Default EDID.
  • Contact Closure - For remote manual switching override.
  • Lock Button.
  • Firmware Upgrade - Over RS-232, mini-USB.
  • Software Support - Protocol 3000, EDID Designer, K-Upload via RS-232.
  • Varied Control Options - Front panel buttons, contact closure, IR, RS-232 Protocol 3000.
  • Easy Installation - Compact MegaTOOLS® fan-less enclosure for surface mounting or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • INPUTS
  • 2 HDMI connectors, 2 unbalanced stereo audio on 3.5mm mini jacks


  • OUTPUTS
  • 1 HDMI connector, 1 balanced stereo audio on 5-pin terminal block


  • PORTS
  • 1 RS-232 on a 3-pin terminal block, 1 mini USB for programming


  • COMPLIANCE WITH HDMI STANDARD
  • Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels, CEC


  • MAX DATA RATE
  • 8.91Gbps (2.97Gbps per graphic channel)


  • SUPPORTED RESOLUTIONS
  • Up to 4K x 2K, 4K@60Hz (4:2:0)


  • CONTROLS
  • Front panel buttons, contact closure, IR, RS-232 Protocol 3000


  • SOFTWARE SUPPORT
  • Protocol 3000, EDID Designer, K-Upload


  • POWER CONSUMPTION
  • 5V DC, 500mA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VS-211UHD Switcher
  • Power Supply


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063076658
