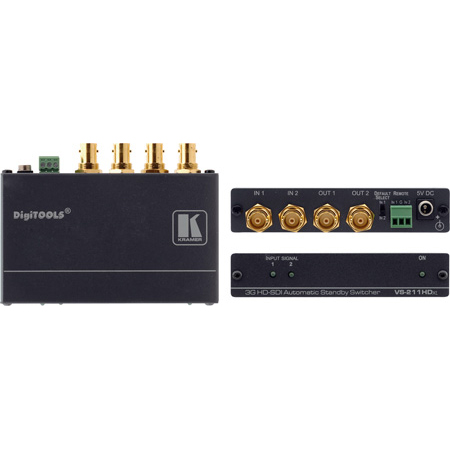

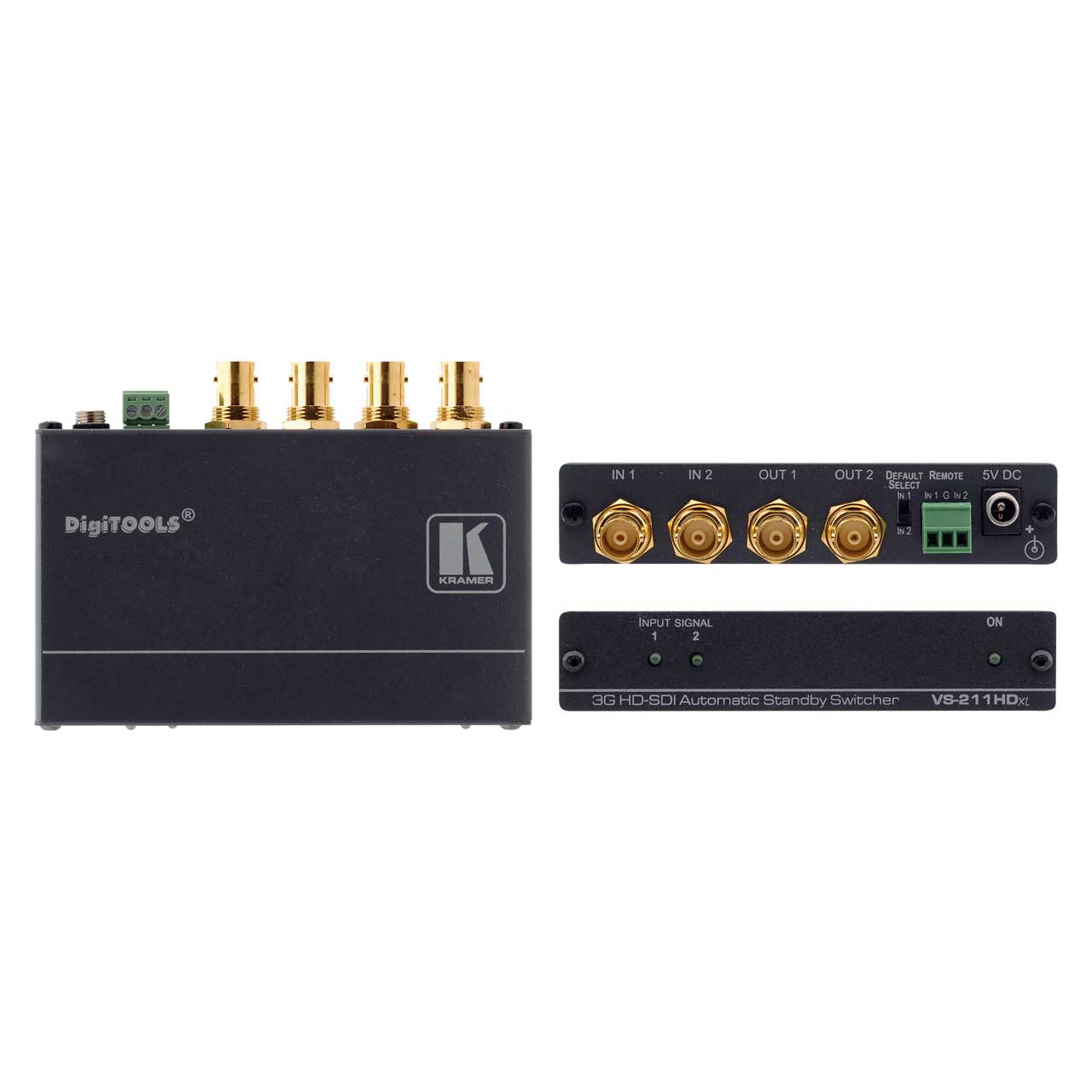

Kramer VS-211HDXL 2x1 3G HD-SDI Automatic Standby Switcher

VS-211HDXL - Overview

• Features:

  • Max. Data Rate - 3Gbps.
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) & 3G HD-SDI (SMPTE 424M).
  • HDTV Compatible.
  • Control - Contact closure or automatic switching.
  • Automatic Standby Switching - Switches from the secondary input to the primary input when a primary signal is detected.
  • Primary Input - Selectable.
  • Active Input LED Indicators.
  • Compact DigiTOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.


• Specifications:

  • INPUTS
  • 2 SD/HD/3G HD-SDI video on BNC connectors


  • OUTPUTS
  • 2 SD/HD/3G HD-SDI video on BNC connectors


  • MAX. OUTPUT LEVEL
  • 800mVpp/75Ω


  • DATA RATE
  • Up to 2.97Gbps


  • CONTROLS
  • Contact closure remote control, input default selection switch


  • COUPLING
  • AC


  • POWER CONSUMPTION
  • 5V DC, 400mA


• Item Includes:

  • VS-211HDxl Switcher
  • Power Supply
  • Mounting Bracket


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063030094
