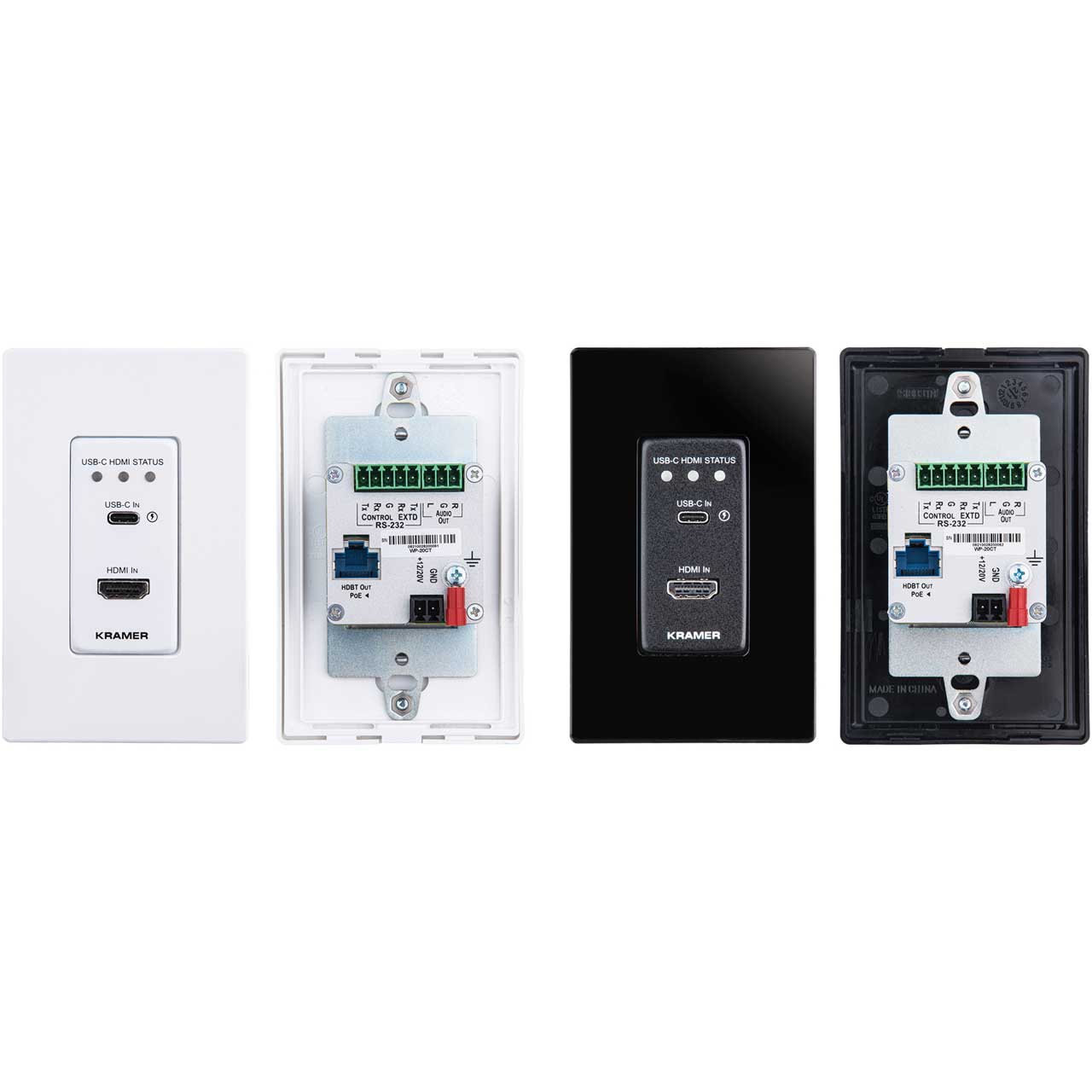

Kramer WP 20CT is is an intelligent 2x1 automatic wall-plate switcher transmitter over long-reach HDBaseT for 4K USB-C and HDMI video signals. WP 20CT offers an intelligent switching experience with built-in Maestro room control and the standard priority / last-connected switching function based on active video signal detection.
High Performance Switcher Transmitter
Professional HDBaseT Switcher transmitter for providing long-reach signals over twisted pair copper infrastructures. This switcher transmitter is a standard transmitter that can be connected to any market-available HDBaseT-compliant extension product.
Simple and Powerful Maestro Room Control
Out-of-the-box configured room control for a typical meeting room setup, and intuitive user interface enables you to control your meeting room elements. Room devices are controlled, locally or remotely via HDBaseT, right out-of-the-box by an extensive range of triggers, including input/output connectivity and routing. By minimizing user intervention, Maestro room control saves meeting prep time and minimizes human error before presentations.
Automatic Display Operation
Part of the out-of-the-box Maestro configured room automation. Meeting presentation is simplified by automatically turning ON/OFF a CEC-enabled display when the presentation source is plugged in / unplugged with user-defined shut-down delay.
BYOD Ease and Convenience
Connect any DP-Alt-Mode-capable USB-C device as an AV presentation source, while providing the connected device, if PD-2.0-capable, with up to 60 watts of power (with the use of an optional 20V power supply).
Plug & Play Auto Switcher
Automatically plays the switched user device source signal on the connected display according to user-configured preferences, such as priority or last-connected input. When the user manually switches, by pressing a button, the auto switching is overridden.
HDMI™ Signal Switching
HDCP 2.3 compliant, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
I-EDIDPro™ Kramer Intelligent EDID Processing™
Intelligent EDID handling, processing, locking and pass-through algorithm ensures plug & play operation for HDMI source and display systems.
Multi-channel Audio Switching
Up to 8 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
Applications
Podium-mounted switcher in lecture halls, training rooms, auditoriums and hospitality applications.
Wall-mounted switcher within any AV distribution system.
Multimedia and presentation source selection in various enterprise applications.
