Kiloview CUBE X1 NDI CORE is a lightweight version of the NDI CORE MAX. The CUBE X1 is designed for unified scheduling, switching, distribution, and management of all NDI signals, supporting 16CH NDI inputs and 32CH NDI outputs. It can achieve seamless switching of all NDI sources and switch without lagging or black screen.
Additionally, it can realize non-multicast multiple distributions, multi-business grouping management, NDI signal rotation playback, etc. It is also compatible with NDI signals of any format or from any device, such as UHD/HD/NDI/NDI|HX and other NDI inputs for seamless docking.
Equipped with an LCD touch screen, the CUBE X1 allows users to monitor the network status, storage space, and CPU occupation in real time.
Three Reasons to Choose Kiloview CUBE X1!

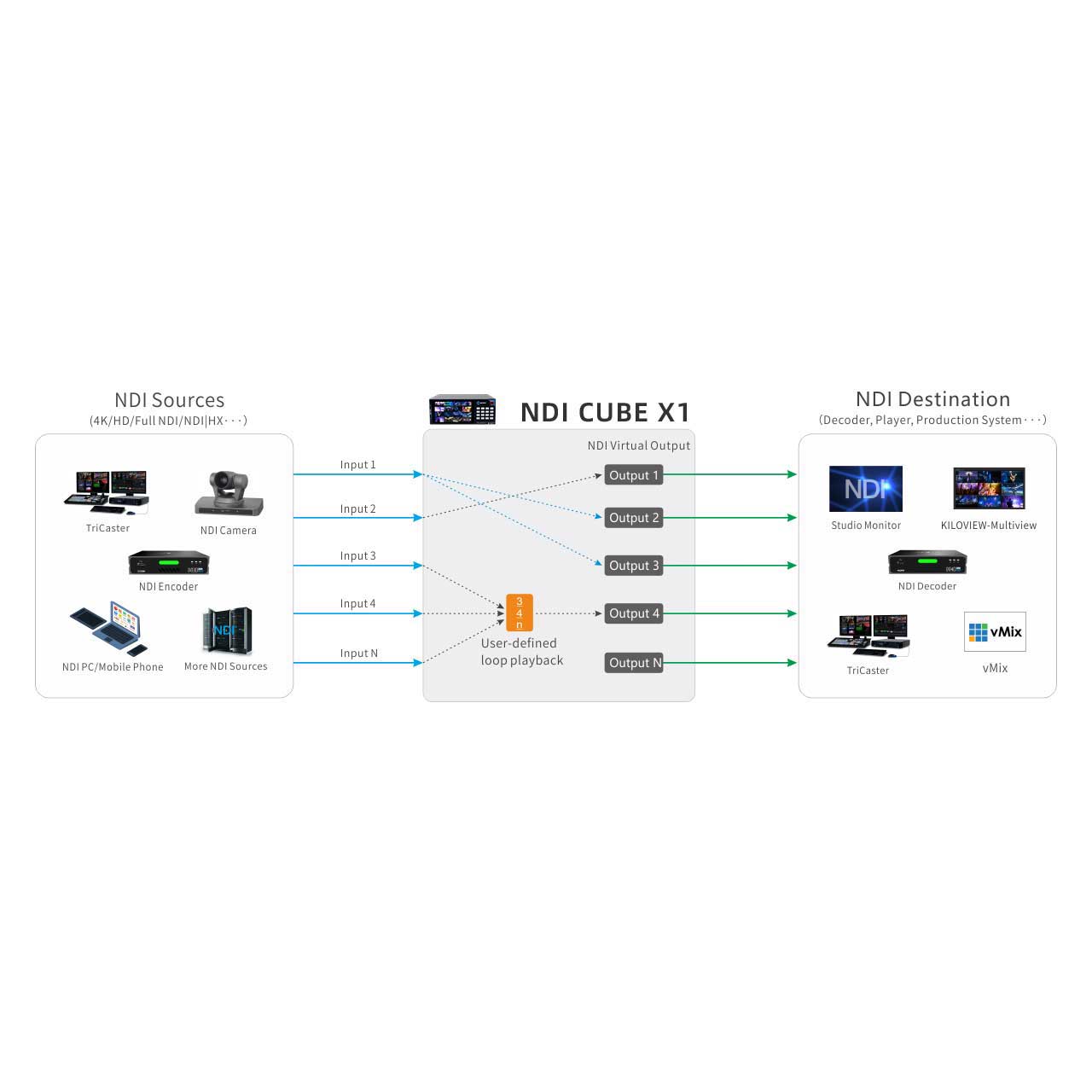

1. All the NDI sources are connected one-to-one to the Kiloview CUBE X1 NDI CORE for switching and distribution.
2. Multiple virtual outputs will be created within the CUBE X1; can be connected to any NDI destination; can also achieve seamless input/output switching.
3. Connection mode: support input/output 1-to-1 connection; support 1 channel input + 1 channel output + multi-channel terminal; 1 channel input + multi-channel output + multi-channel terminal.

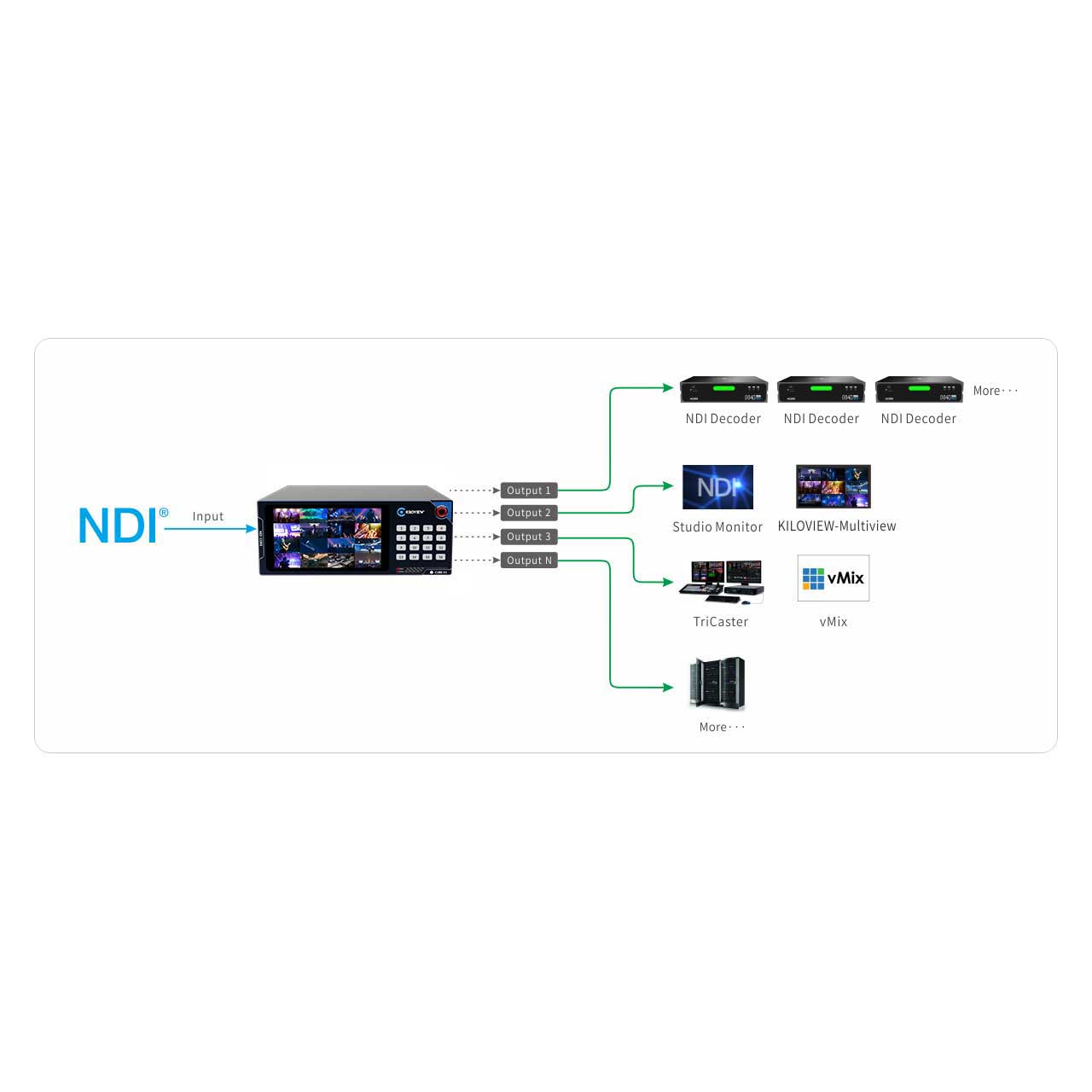

Non-Multicast Multiplex Distribution
Unlike a simple routing switching mechanism, Kiloview CUBE X1 supports access to all NDI data sources, thus achieving seamless NDI signal switching and unlimited distribution. When you need to use the same NDI video source in multiple targets, the system can create multiple NDI outputs as needed, or the same output can support multiple targets connected at the same time.
Seamless Switching, More Professional
Kiloview CUBE X1 can automatically discover and manually input NDI sources. It can realize 16 channels of NDI inputs, 32 channels of NDI outputs, copy distribution and switching, and switching with no lagging, blurry or black screen.
For your optional use, there are two switching panels: the crosspoint panel and the IO panel.
Up to 16 Channels of NDI Input and 32 Output

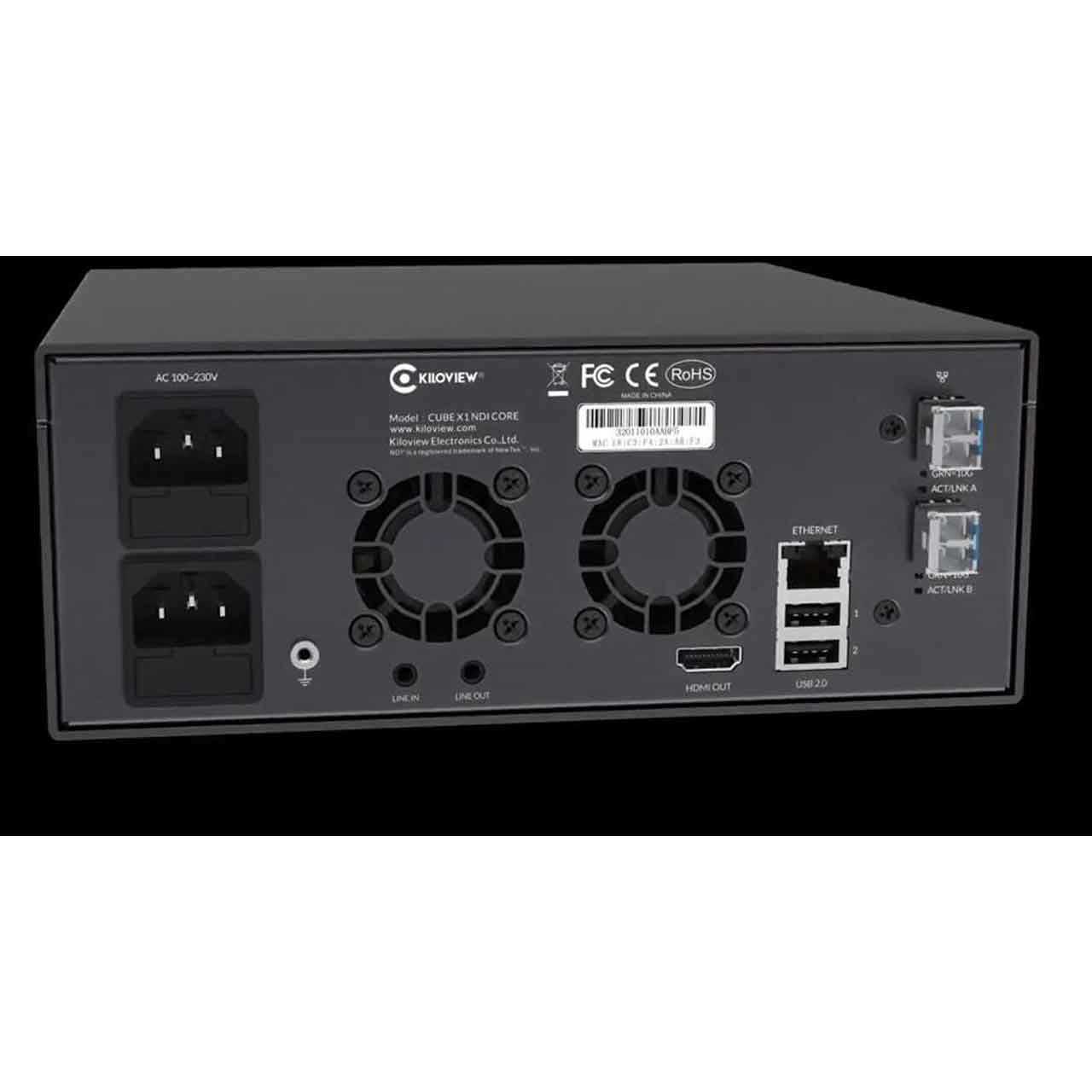

The device is the lightweight version of the NDI CORE MAX, equipped with dual 10GbE NICs, which can reach 16 channels of 1080p60 resolution NDI source inputs and 32 channels of 1080p60 resolution NDI source outputs simultaneously.
Compatible with NDI Signals of Any Formats/Devices
The CUBE X1 is compatible with any format, any number of NDI inputs of any resolution such as UHD/HD/NDI/NDI|HX, etc. and works seamlessly with NDI conference cameras, NDI mobile phones/computers, NDI codecs, NDI production systems, and other NDI hardware and software systems.
Visualized One-Button Operation

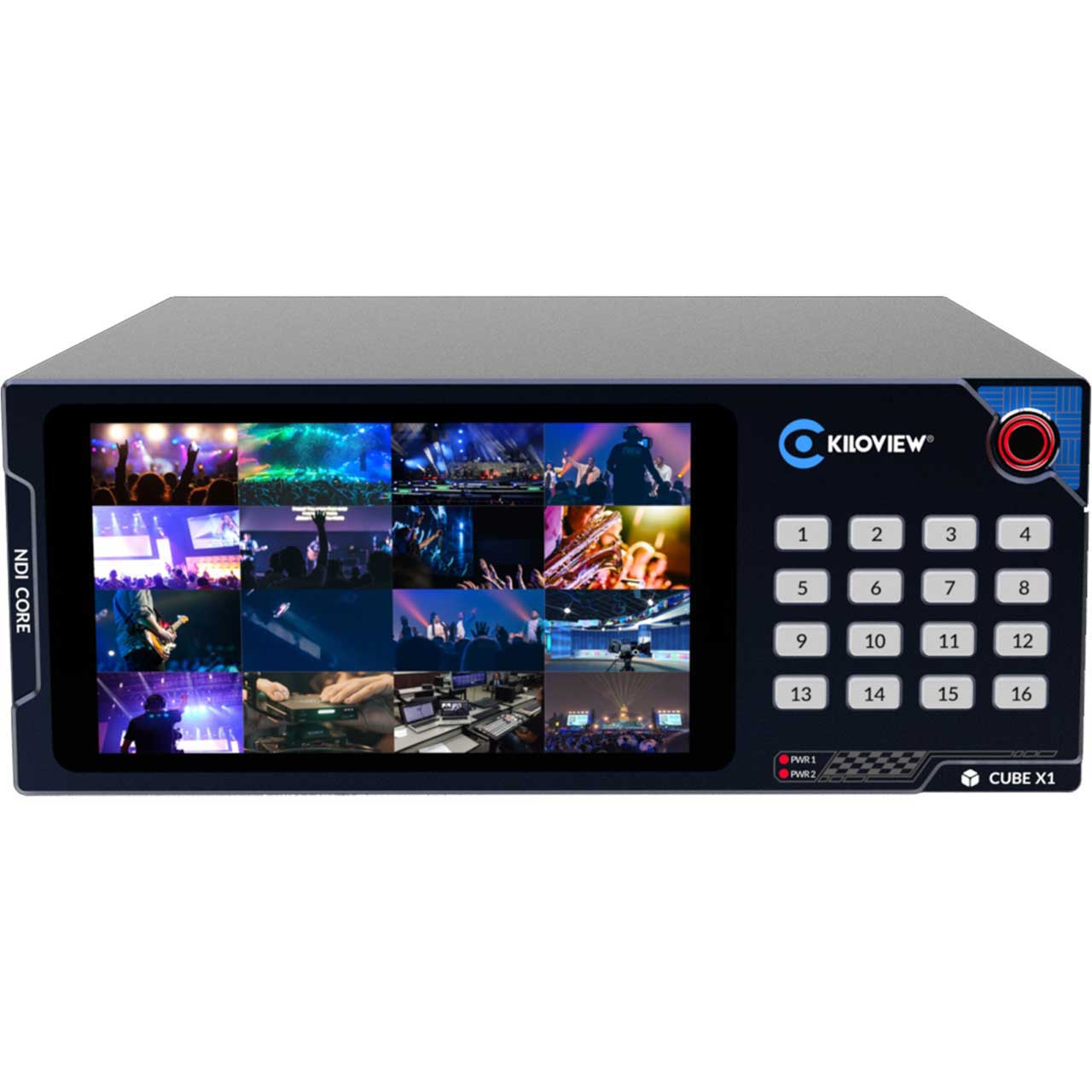

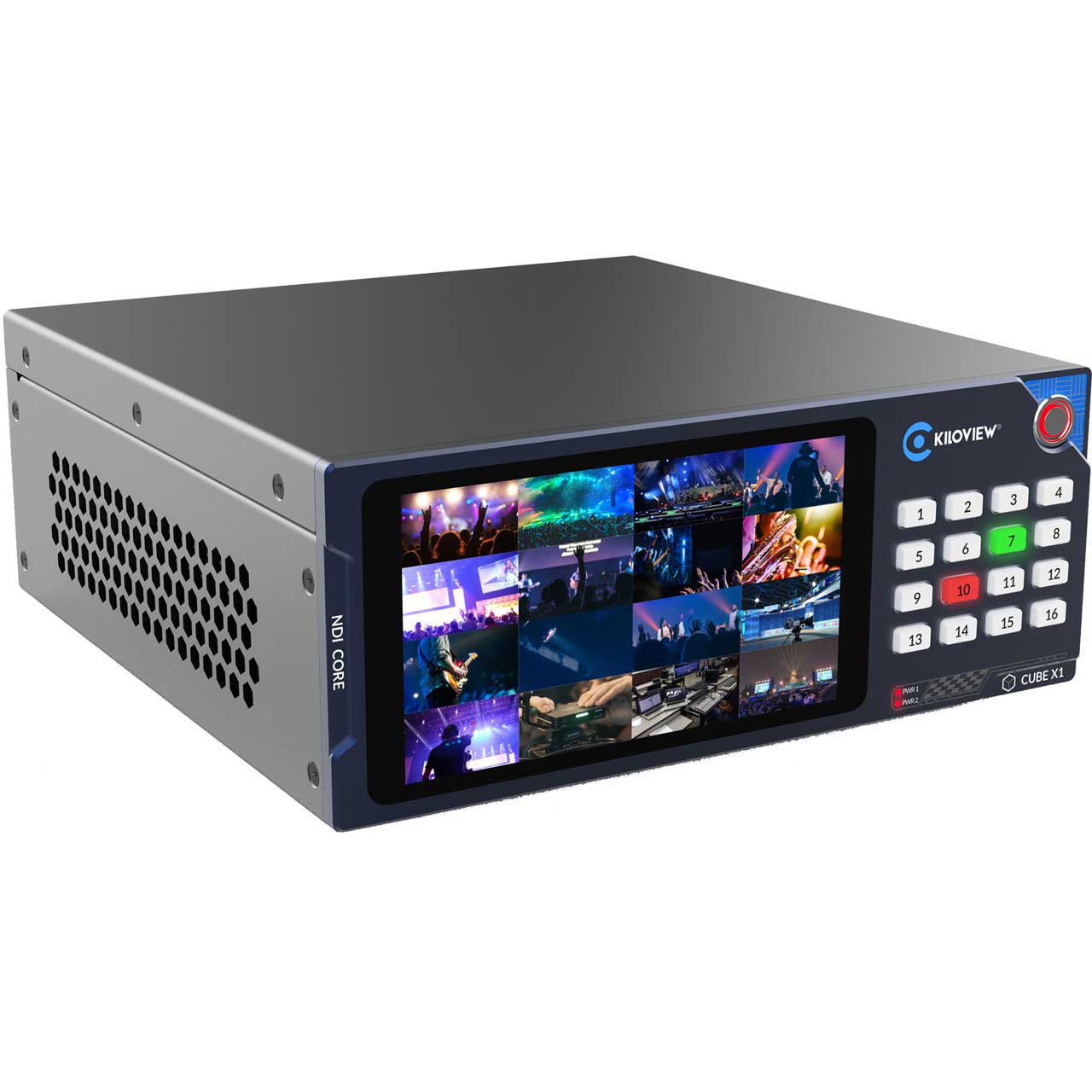

The CUBE X1 NDI CORE comes with an LCD touch screen and operation button design, the built-in 5.5-inch HD screen will display all the video operations.
Without an external display screen, the appropriate input/output source can be flexibly selected through a button or touch for monitoring, distribution, and switching without lagging, blurring, or a black screen.
