kvm-tec 6023 Masterflex DVI USB KVM Over Dual Fiber Extender Set - LC Duplex Multimode Fiber

Name: kvm-tec 6023 Masterflex DVI USB KVM Over Dual Fiber Extender Set - LC Duplex Multimode Fiber
Brand: Kvm-tec Electronics
SKU: KVM-6023

ITEM #: KVM-6023 MFG #: 6023

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KVM-6023

ADDERLink XDIP-POE-US HDMI/USB Single Link KVM Extender over IP - POE Powered OnlyOur Price: $594.00
ADDERLink ALIF2122R-US INFINITY Dual Head Digital USB2.0 IP KVM A/V Extender - ReceiverOur Price: $1,724.25
ADDERLink ALIF2122T-US INFINITY Dual Head Digital USB2.0 IP KVM A/V Extender - TransmitterOur Price: $1,724.25
ADDERLink XDIP-US HDMI/USB Single Link KVM Extender over IP with PSU and POEOur Price: $643.50

Required Accessories

Recommended Accessories

6023 - Overview

The kvm-tec 6023 MASTERflex dual is a highly optimized KVM Extender over IP and covers a range of 160km/99mi at a resolution of 1920x1200@60Hz and is available in fiber as dual version

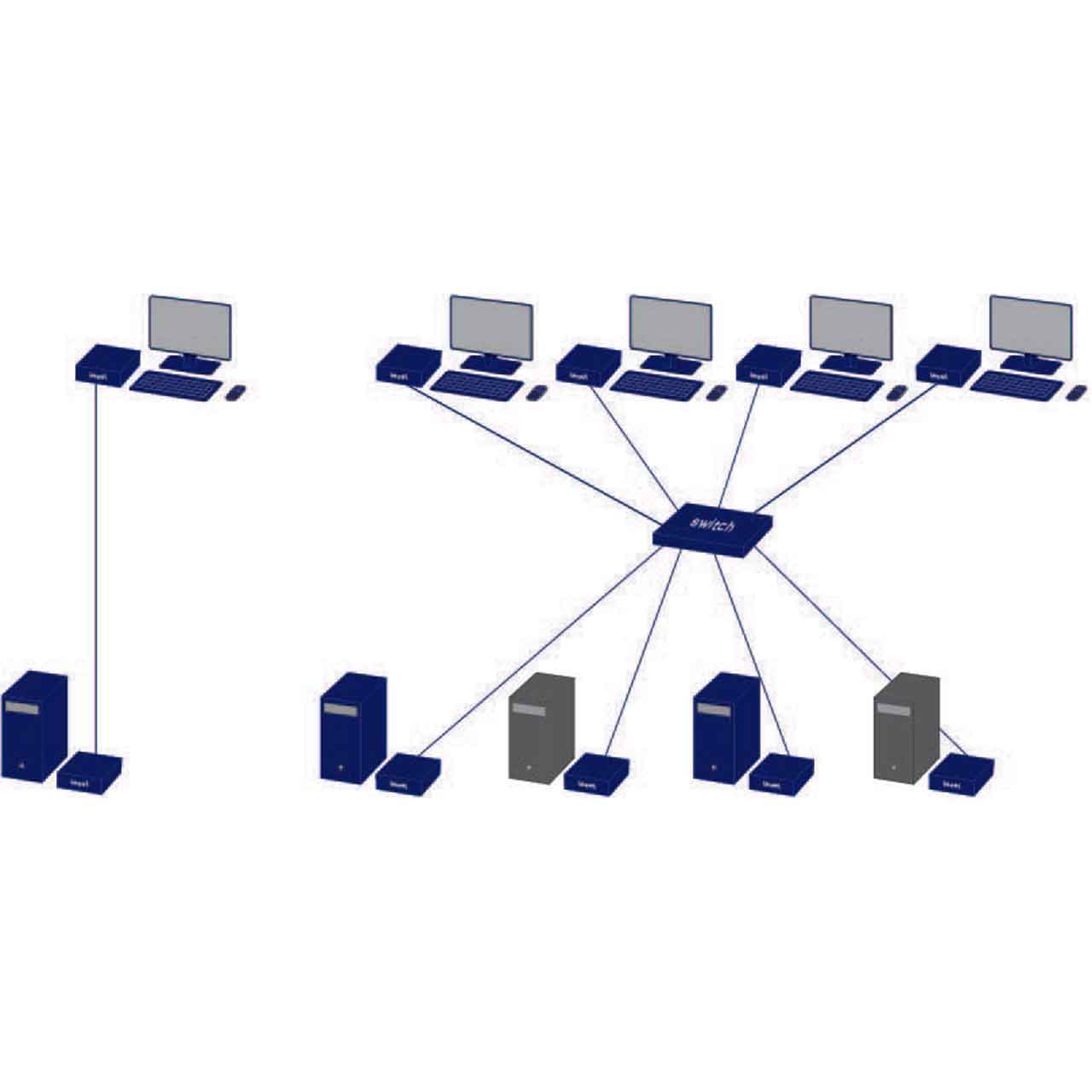

For point to point connection or in Matrix Switching Systems up to 100 endpoints

Included kvm-tec Switching Manager Software - switch up@work - for intuitiv management in the Switching System.

Please note Requires fiber connection cable type Duplex Multimode 50/125µ (OM2), LC connector. Maximum length should be 500 meters (1640 feet)

Features:
- Automatic Plug & Play installation
- USB transmission rate max 480Mbit/s
- Firmware flash upgrade without cable
- VGA in - DVI out
- DVI extension without loss of quality
- 4 dual extender in 1RU
Specifications:
- MV2-F Local/CPU
- Interfaces
  2 x DVI in (no HCDP)
  1 x USB-B to PC
  1 x 3.5mm jack (Line In)
  1 x 3.5mm jack (Line out)
- Video
  DVI-D max. 1920x1200 @ 60Hz
  DVI-I max. 1920x1200 @ 60Hz
- Audio: Analogue - 16 Bit - 44kHz - 2 CH
- USB: USB 2.0 Transparent Max. 480 Mbit/s Mass Storage Devices & Camera Optional
- Casing: 4.29 x 1.69 x 4.23 Inch
- Weight: 0.65 Lbs
- Power Supply: wall power supply unit 12 VDC 1A max 35V
- Power Input: 12W
- Operation Environment: 32 to 113°F
- Storage Environmnet: -13 to 176°F
- Cooling: Free air convection
- MTBF: 82.820 Calculated Hours
- Conformity: CE, FCC
- Warranty: 2 Years

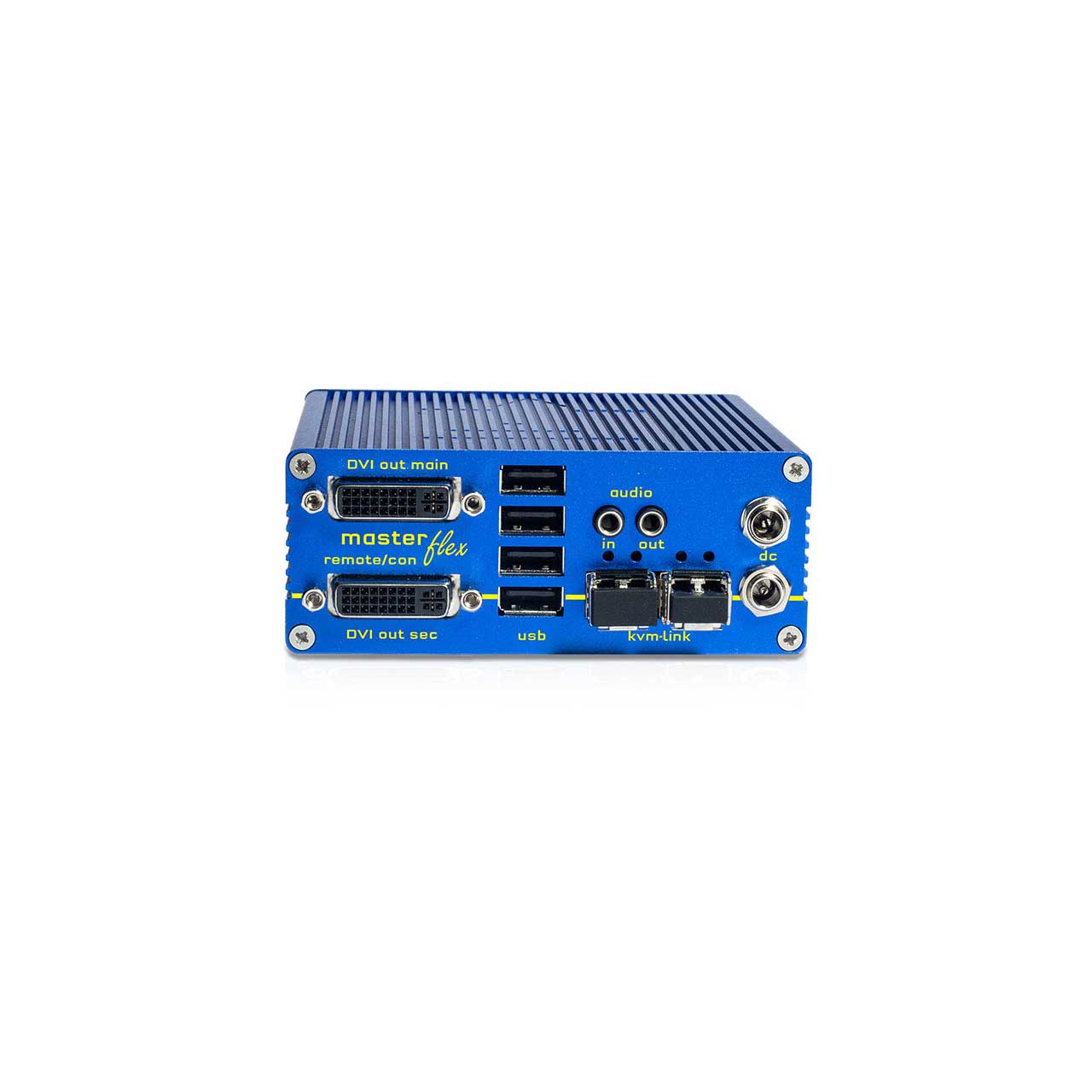

  MV2-F Remote
- Interface
  2x DVI-D out
  4 x USB-A (devices)
  1 x 3.5mm jack (Line In) 1Vpp
  1 x 3.5mm lack (headphone)
  2 x 10mW@320 Ohm
- Video
  DVI-D max. 1920x1200 @ 60Hz
  DVI-I max. 1920x1200 @ 60Hz
- Audio: Analogue - 16 Bit - 44 kHz - 2 CH
- USB: USB 2.0 transparent max. 480 Mbit/s mass storage devices & camera optional
- Casing: 4.29 x 1.69 x 4.23 Inch
- Weight: 0.65 Lbs
- Power Supply: wall power supply unit 12 VDC 1A max 35V
- Power Input: 12W
- Operation Environment: 32 to 113°F
- Storage Environmnet: -13 to 176°F
- Cooling: Free air convection
- MTBF: 82.820 Calculated Hours
- Conformity: CE, FCC
- Warranty: 2 Years
Item Includes:
- 1x MV2-F Local (CPU)
- 2x Wall Power Supply Unit 12V 1A
- 2x DVI - DVI cable 1.8m (5.9ft)
- 1x USB cable 1.8m (5.9ft)
- 2x VGA-DVI cable 1.8m (5.9ft) opt
- 2x Audio cable 1.8m (5.9ft) opt
- 4x SFP module Multimode up to 500m/1640ft
- 8x Rubber Feet
- 1x MV2-F Remote (CON)
Warranty:
- 2 Years
