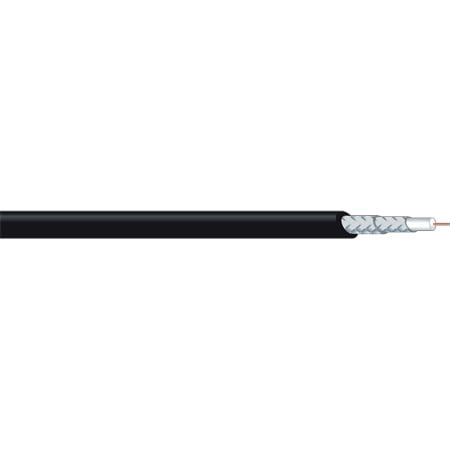

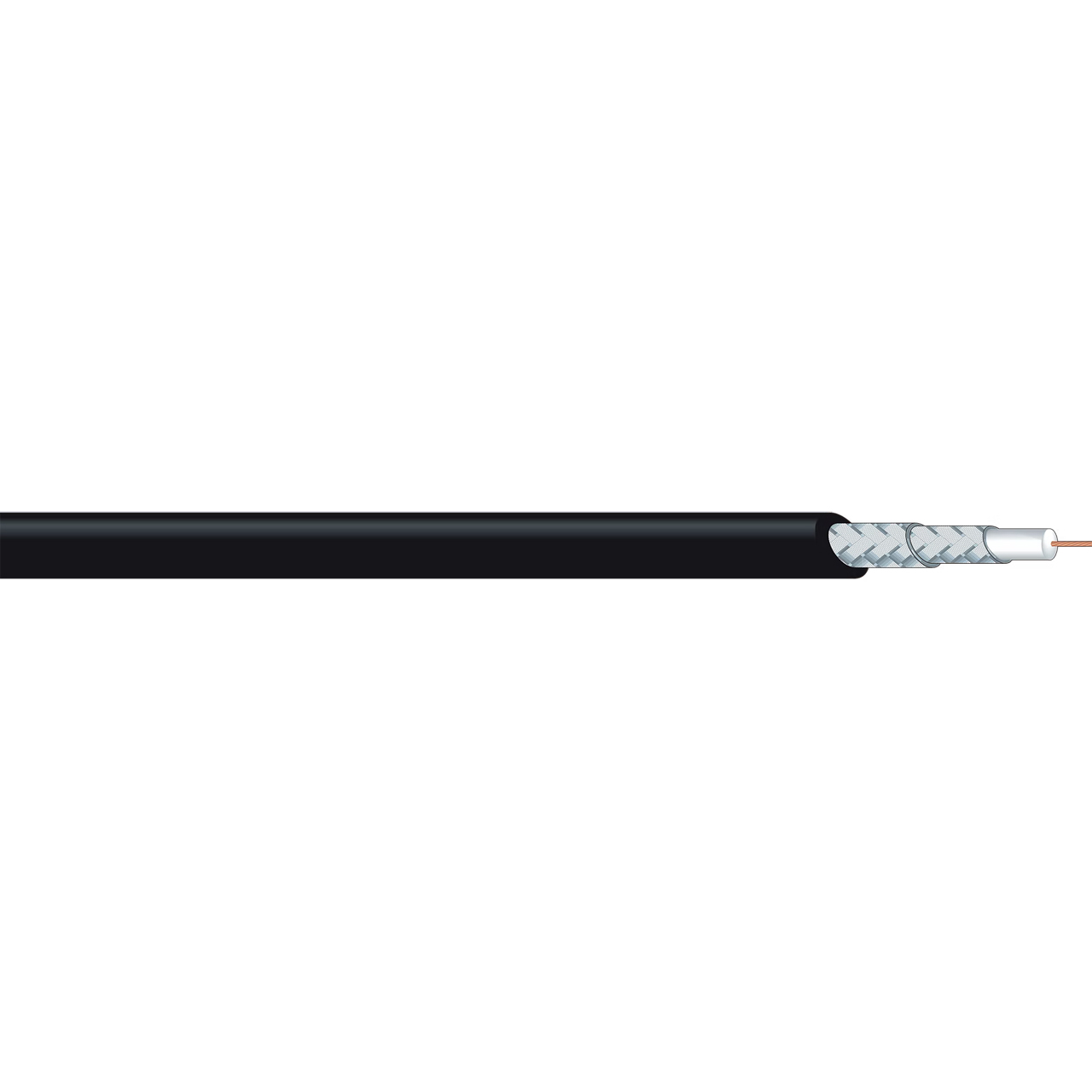

Canare L-3.3CUHWS 75 Ohm 22AWG 12G Coaxial Cable for 12G-SDI Mobile Applications - 130ft Max Distance - Black - 984 Foot

L-3.3CUHWS - Overview

• Features:

  • Specially designed for 12G-SDI mobile applications
  • Flexible and low loss structure
  • High-density double-braided shield
  • Highly-foamed PE insulation


• Specifications:

  • Nom. O.D.: 5.8
  • Weight (kg/100m): 4.8
  • AWG: 22
  • Inner cond. O.D. (mm): 0.78
  • Inner cond. resist (Ω/100m): 5.0
  • Insulation O.D. (mm): 3.30
  • Outer Conductors - Braid comp. (mm/ends/carriers): 0.10TA / 6 /24 (92%), 0.10TA / 7 / 24
  • Static capacity (pF/m): 57
  • Attenuation (dB/100m-750 MHz): 98.7
  • BNC Connector Type: BCP-D33UHW
  • Crimping Tool: TC-1 Hand Crimp
  • Crimp Die: TCD-451CA


• Item Includes:

  • 1x Canare L-3.3CUHWS 75 Ohm 12G Coaxial Cable for 12G-SDI Mobile Applications - 130 Foot Max Distance - Black - 984 Foot
