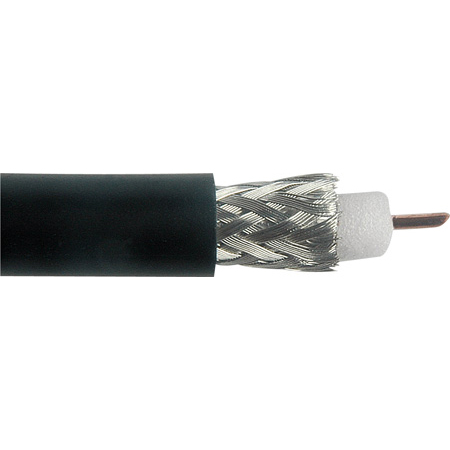

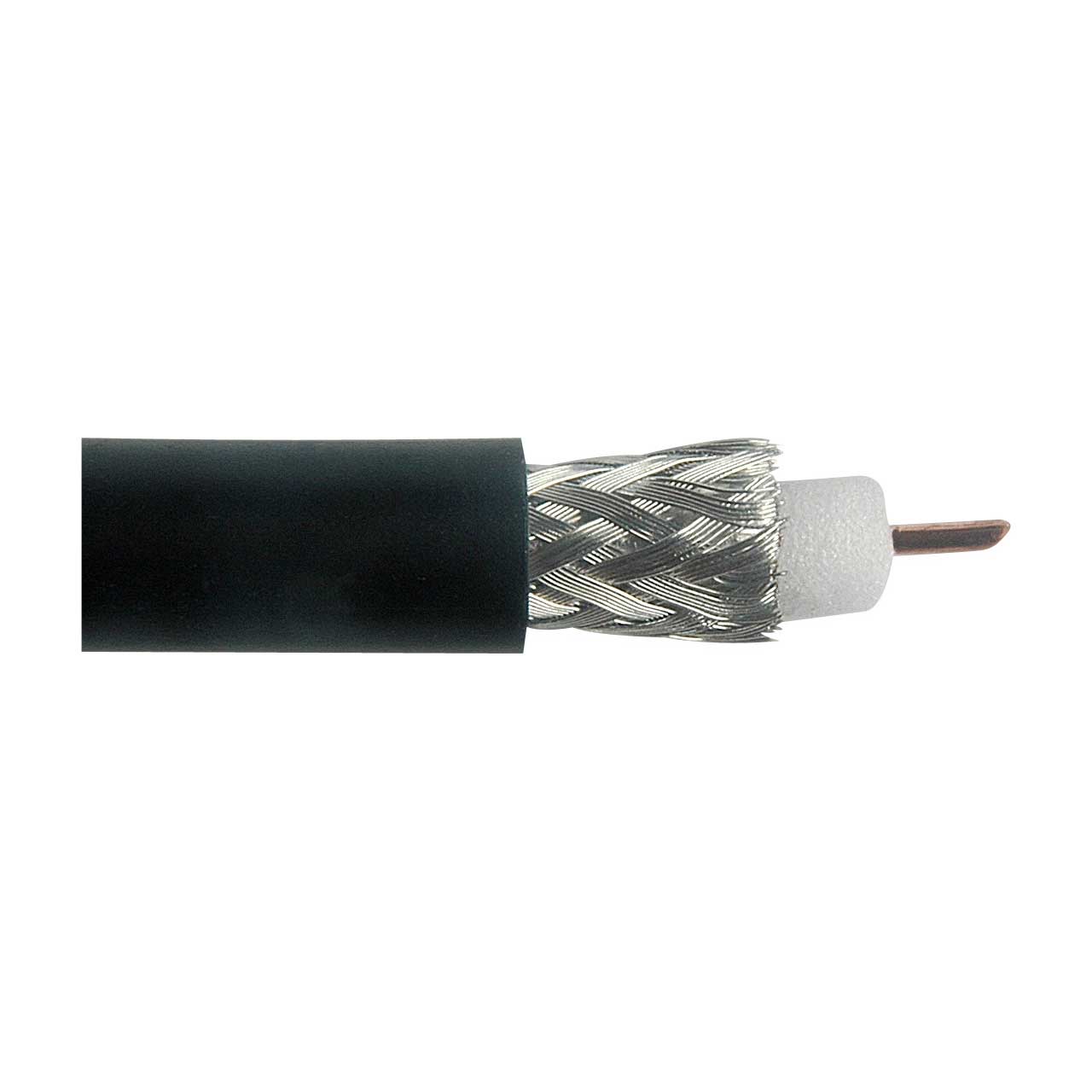

Canare L-4.5CHD 75 Ohm RG6 12G-SDI Digital Video Coaxial Cable - 300 Meter / 984 Foot Roll - Black

ITEM #: L-4.5CHD-984 MFG #: L-4.5CHD-984

Primary Image
Canare
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$570.90

Our Price:

$459.00

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

L-4.5CHD-984 - Overview

Canare's L-4.5CHD 75 Ohm RG6 12G-SDI Digital Video Coaxial Cable offers the professional broadcaster a high performance, 100% Sweep Tested, low cost, low loss coax that meets the demands of today's facility migration trends toward Serial Digital Video and HDTV standards.

  • Features:

    • HD-Serial Digital Video
    • Satellite Head Ends
    • Sweep test up to 12GHz
    • Max Transmission Distance: 143 ft
    • 12G-SDI solution with Canare Micro BNC
    • HDTV Upgrades
    • Broadband Facilities
    • SMPTE 259M, 292M,424M
    • Best suited to 3G-SDI / HD-SDI transmission
    • Highly-foamed PE insulation allows further improvement in the attenuation characteristics.
    • Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength
    • Tinned copper braid with aluminum foil brings excellent shielding
    • Flame resistance UL 1666 Riser (L-4CHD and L-5CHD)


  • Specifications:

    • Nom. O.D.: 0.27"
    • Wt Std. Lng.: 13.66 lbs
    • Inner Cond Conductor Comp. (AWG): (18) 1/1.02A
    • Inner Cond O.D.: 0.04"
    • Insulation O.D.: 0.17"
    • Foil: AL
    • Outer Conductors Shield Coverage & Comp: 0.12TA/7/16 (95% or more)
    • Inner Cond. Resistance Ohm/Mile: 23.3
    • Outer Cond. Resistance Ohm/Mile: 9.9
    • Static Capacity (pF/m): 53
    • Characteristic Impendence Ohm: 75
    • Attenuation dB/100m (328ft): 25.1
