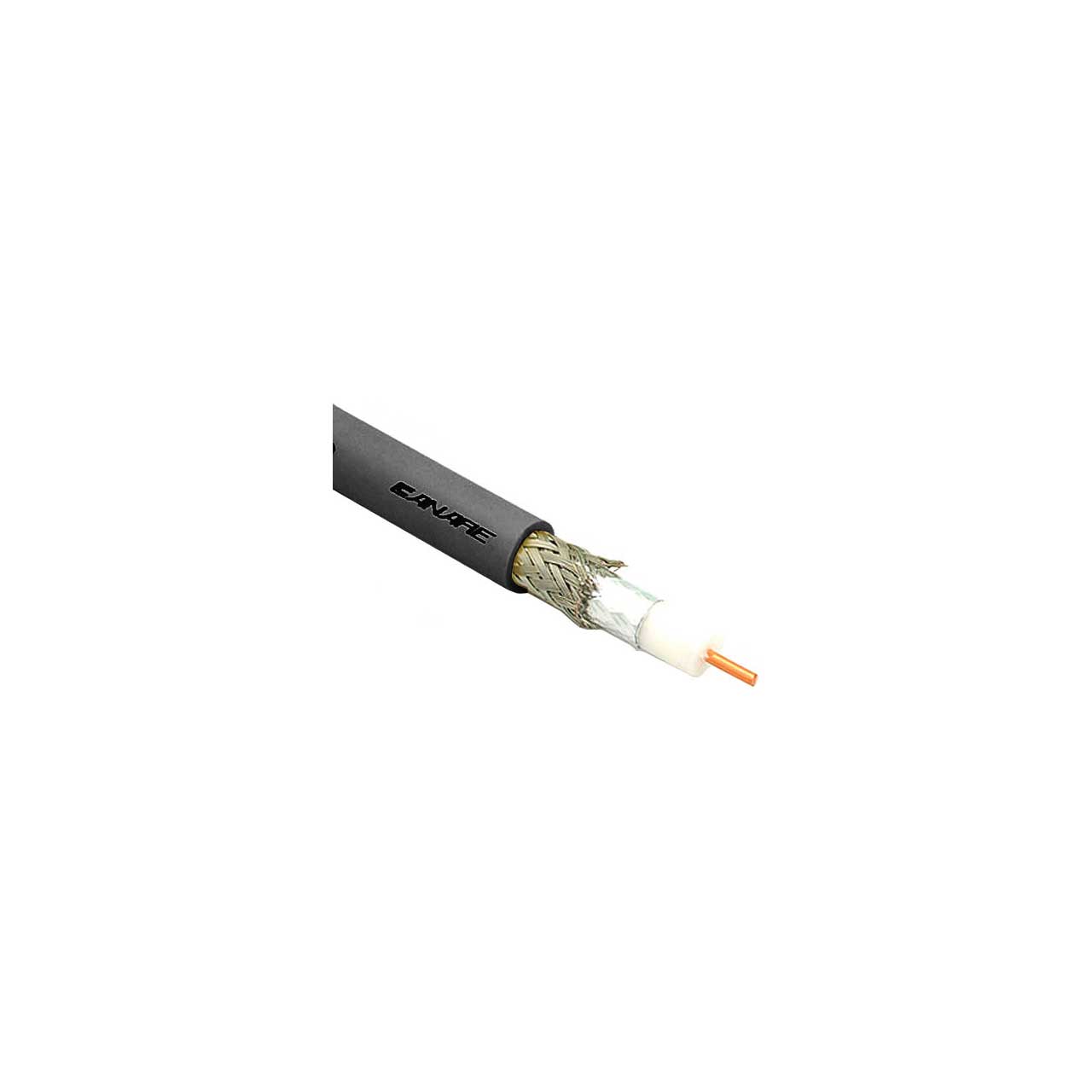

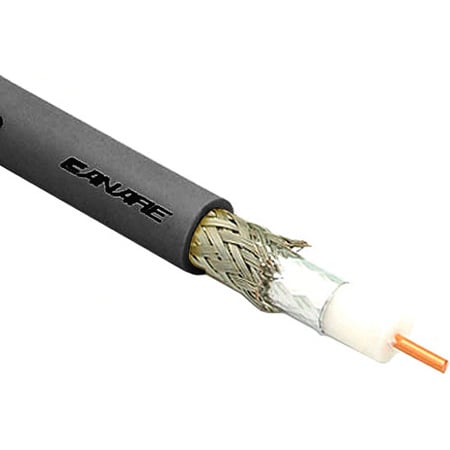

Canare L-6CHD HDTV-SDI Coax Cable (984 Ft.) Black

L-6CHD-984 - Overview

• Features:

  • Suitable for 3G-SDI / HD-SDI transmission
  • Highly-foamed PE insulation allows further improvement in the attenuation characteristics
  • Multi-layer insulation in which each layer is given a different foaming ratio is used to increase strength
  • Tinned copper braid with aluminum foil lends good-quality shielding
  • For applications HD-serial digital video, satellite head ends, HDTV upgrades, broadband facilities, and SMPTE 259M, 292M, 424M


• Specifications:

  • DC Resistance Inner Conductor: <=3.1 O / 1,000' (<=1 O / 100 m)
  • Outer Conductor: <=2.3 O / 1,000' (<=0.8 O / 100 m)
  • Voltage Minimum Breakdown Voltage: 1,000 VAC / 1 min
  • Insulation Resistance: Between conductors >=1,000 MO / 3,000' (>=1,000 MO / km)
  • Impedance Character: 75±3 O at 10 MHz
  • Capacitance Between conductors 15.2 pF/ft (50 pF/m)
  • Tensile Strength Jacket: MPa >=11.0, %= >=220
  • Attenuation Attenuation: 10 MHz, dB/100 m: 1.7, per 1,000': 5.2
  • Attenuation: 30 MHz, dB/100 m: 2.7, per 1,000': 8.2
  • Attenuation: 72 MHz, dB/100 m: 3.9, per 1,000': 11.9
  • Attenuation: 88 MHz, dB/100 m: 4.3, per 1,000': 13.1
  • Attenuation: 135 MHz, dB/100 m: 5.2, per 1,000': 15.8
  • Attenuation: 180 MHz, dB/100 m: 6.0, per 1,000': 18.3
  • Attenuation: 270 MHz, dB/100 m: 7.4, per 1,000': 22.6
  • Attenuation: 750 MHz, dB/100 m: 12.9, per 1,000': 39.3
  • Attenuation: 1.5 GHz, dB/100 m: 19.0, per 1,000': 57.9
  • Attenuation: 2.4 GHz, dB/100 m: 24.8, per 1,000': 75.6
  • Attenuation: 3.0 GHz, dB/100 m: 28.3, per 1,000': 86.3
