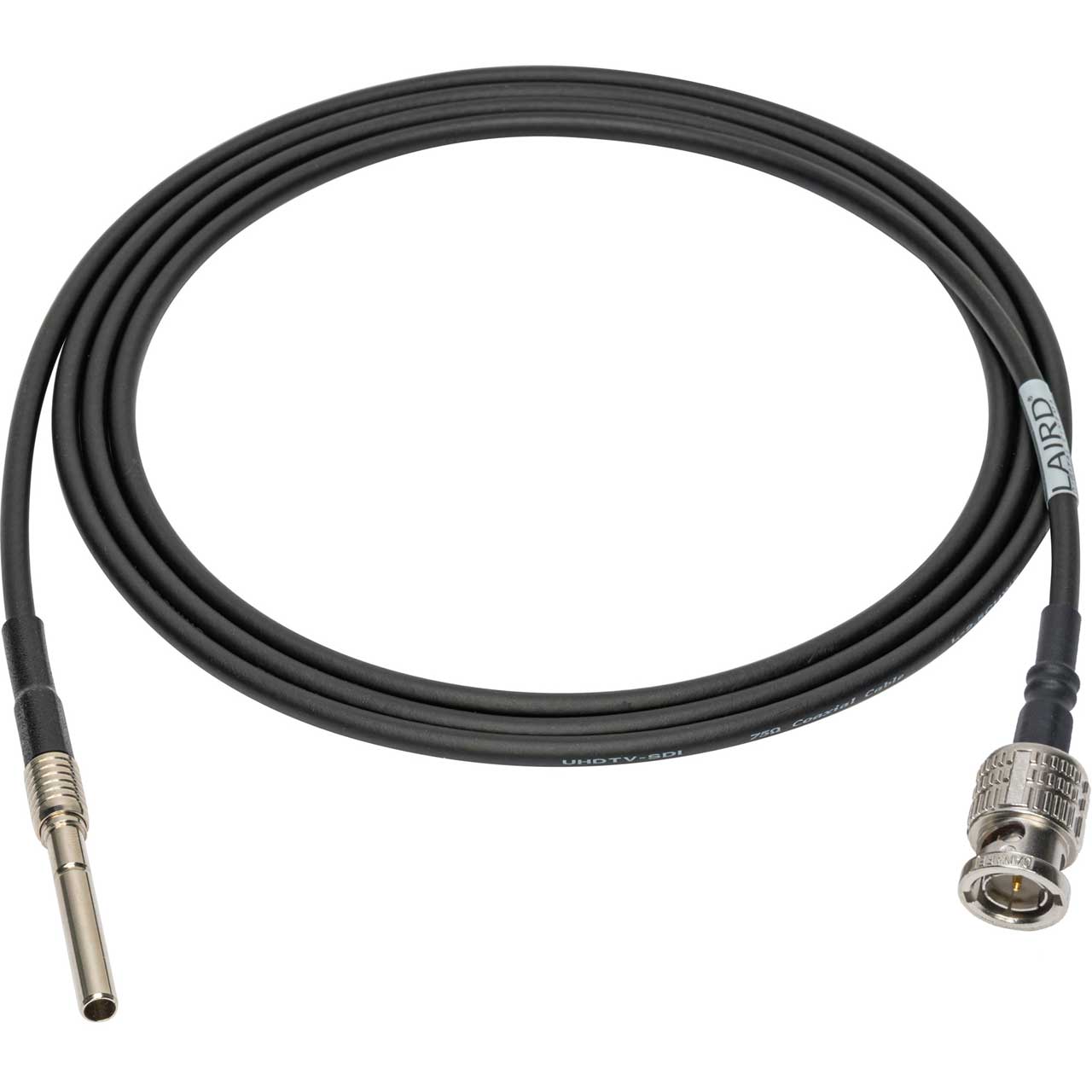

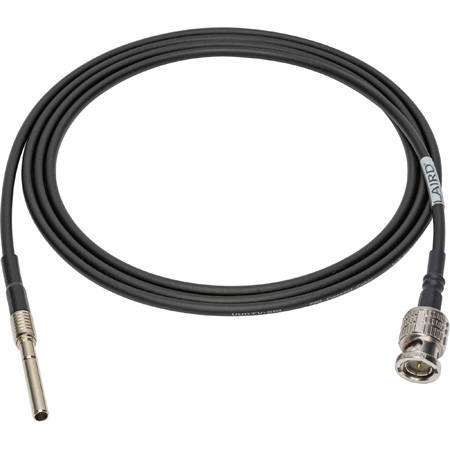

Laird Canare L-2.5CHWS Mini RG-59 12G-SDI Cable - BNC Male to Micro Video Patch Plug - 6 Foot

ITEM #: L25CHWS-BMCV-006 MFG #: L25CHWS-BMCV-006

Primary Image
Laird Digital Cinema
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$24.49

Our Price:

$21.95

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    L25CHWS-BMCV-006 - Overview

    If you're needing a super low profile 12G-SDI BNC cable for your outside broadcast trucks and studio patches, the Laird L25CHWS series sets the gold standard! This series is based on Canare’s L-2.5CHWS 12G coax which is incredibly flexible because of its stranded center conductor. It also features a very slim 0.165" O.D. All of this adds up to a lightweight 12G BNC cable that’s easy to patch in tight spaces. There is no compatibility with third-party micro video jacks.

    Please Note! This cable is required for use with the Canare 32MCK-ST 75 Ohm Micro Size Video Patchbay only! They will not fit or work with any other patchbay.

    Note: Canare does not certify this cable as 12G - however Laird independent testing has certified this up to 80 feet

    • Features:

      • Flexible, Lightweight, Thin Canare Coaxial Cable Designed for Repeated Bending
      • Highly-Foamed Insulation for Lower Attenuation
      • High-Density Double-Braided Shield Low Loss Canare BNC Connectors
      • Superior Cable Pull Strength


    • Specifications:

      • Laird Certified Max Transmission Distance: 80 Feet
      • 24 AWG Canare L-2.5CHWS Cable
      • Jacket: PVC Foam Polyethylene Dielectric
      • Stranded Annealed Copper Center Conductor
      • Dual Tinned Annealed Copper Braid Shields
      • Characteristic Impendence: 75 Ω
      • Nominal O.D.: 0.165 inch
      • Attenuation: 15.1 dB/100 Meters @ 135MHz
      • Connectors: Impedance 75 Ohm
      • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **


    • Warranty:

      • 1 Year
