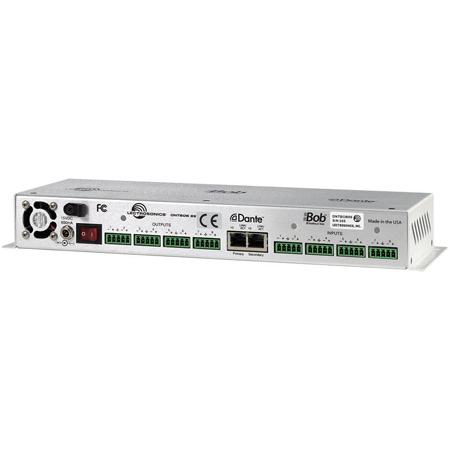

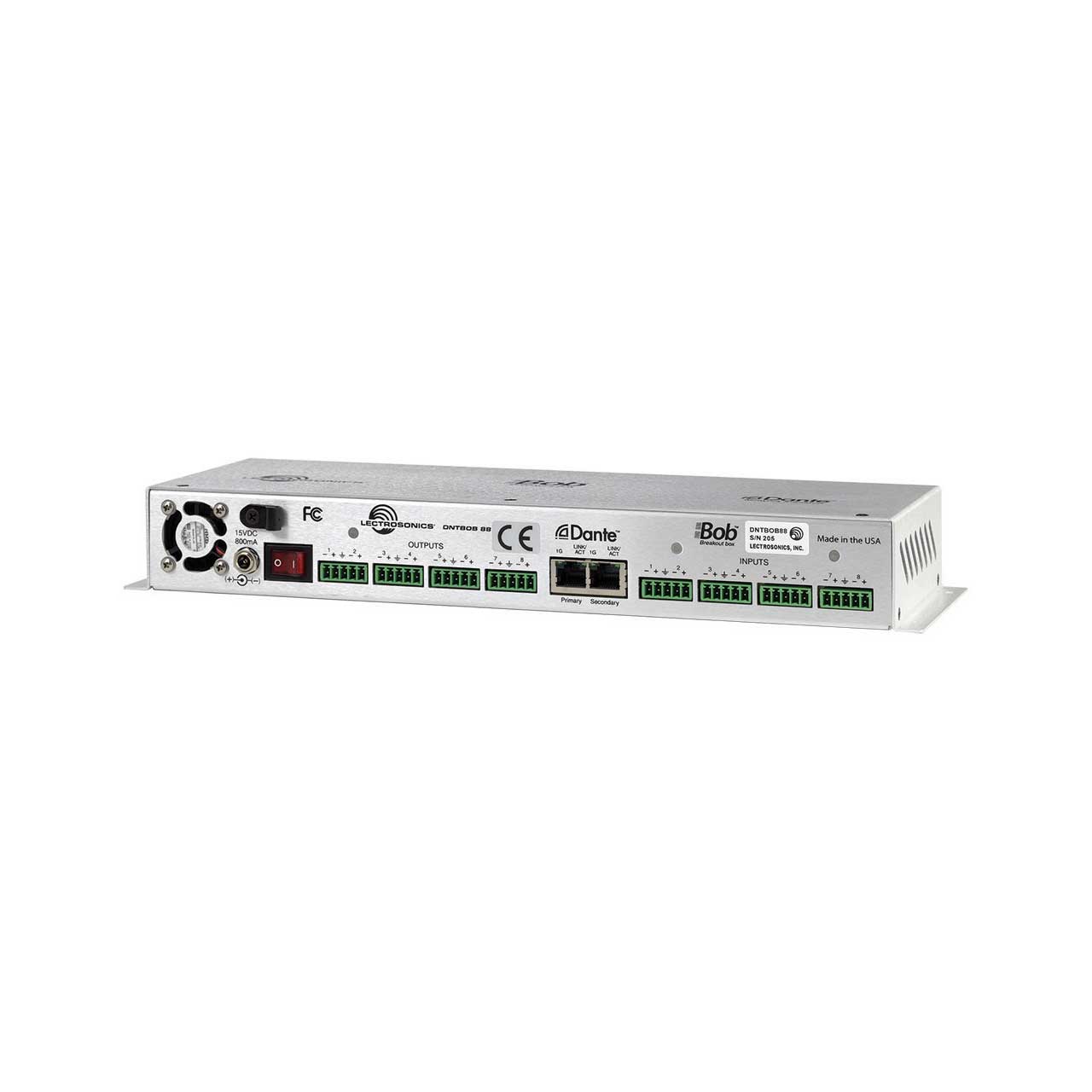

Lectrosonics DNTBOB-88 Dante 8x8 Breakout Box

ITEM #: LEC-DNTBOB88 MFG #: DNTBOB88

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,759.00

Our Price:

$2,069.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


DNTBOB88 - Overview

Lectrosonics BOB 88 is a high quality, general purpose interface to transmit and receive line level analog audio signals via a Dante network. Analog inputs are converted to digital and appear on the network as transmit channels. Audio for the analog outputs is taken from subscriptions to transmit channels on the network from other sources. When connected to a network, each break out box will appear as a separate device in the Dante Controller software interface.

  • Features:

    • 8 balanced line level analog inputs
    • 8 balanced line level analog outputs
    • Dante™ primary and secondary ports
    • 8 Dante network outputs
    • 8 Dante network inputs
    • Uses standard ethernet hardware
    • Gigabit compatible
    • AVB ready

  • Specifications:

    • Analog inputs
    • Type: Floating balanced
    • Level: 0 dBu; 20 dB headroom
    • Impedance: 15k ohm (differential); 3.75k ohm (common)
    • Connector: 5-pin Phoenix

      Analog outputs
    • Type: Floating balanced
    • Level: 0 dBu; 20 dB headroom
    • Impedance: 50 ohms
    • Connector: 5-pin Phoenix
    • Sampling Rate: 48 kHz
    • Network Interface: Dante

      Latency
    • Analog in to Dante network: 0.721 ms
    • Dante network to analog out: Network latency + 0.521 ms
    • THD + Noise: 0.02%; analog in to analog out
    • Audio Frequency Response: 20Hz to 20kHz; ±0.1 dB
    • Input to Output Gain: 0 dB; ±1 dB
    • Ambient Operating Temperature: -20° C to +50° C; -36° F to +90° F
    • Power Requirements: 15 VDC; 800 mA
    • Power Switch: Illuminated rocker
    • Power Consumption: 12 Watts
    • Dimensions (overall): 1.73 x 13.36 x 4.6 in. (44 x 339 x 117 mm.)
    • Weight: 22.3 ozs.; 631 grams

  • Item Includes:

    • 1 Power Cord
    • 1 25-pin Connector
    • 8 5-position Plug
    • 1 USB Cable
    • 1 Adjustment Tool
    • 1 DNT Software CD
    • 1 Manual
