Lex DBS100FP-B4B2 Lunch Box 100 Amp Stage Pin Inlet with (5) 5-20 Duplex Receptacles & Feed Thru Power Distribution Box

ITEM #: LEX-DBS100FPB4B2 MFG #: DBS100FP-B4B2

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,445.25

Our Price:

$1,109.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


DBS100FP-B4B2 - Overview

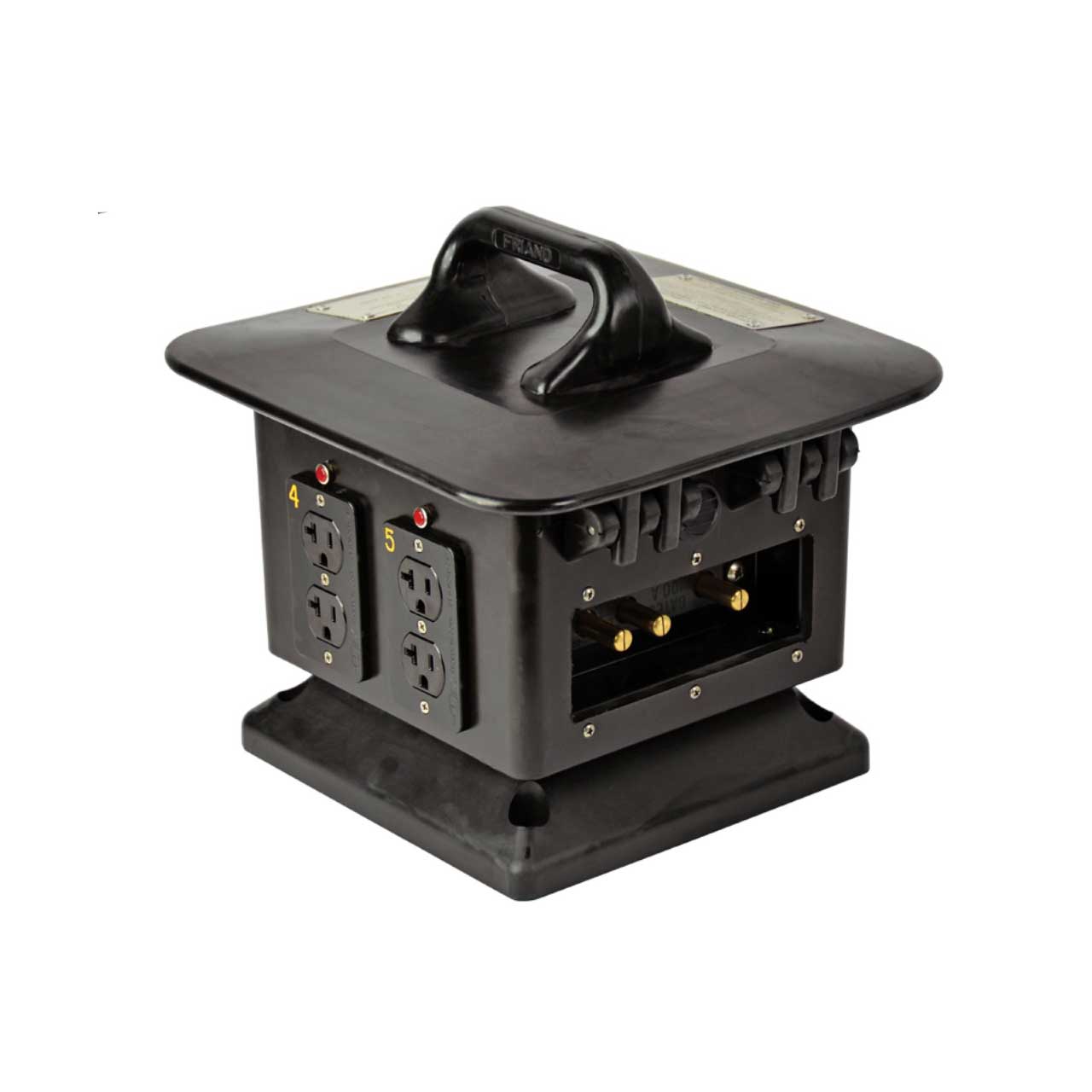

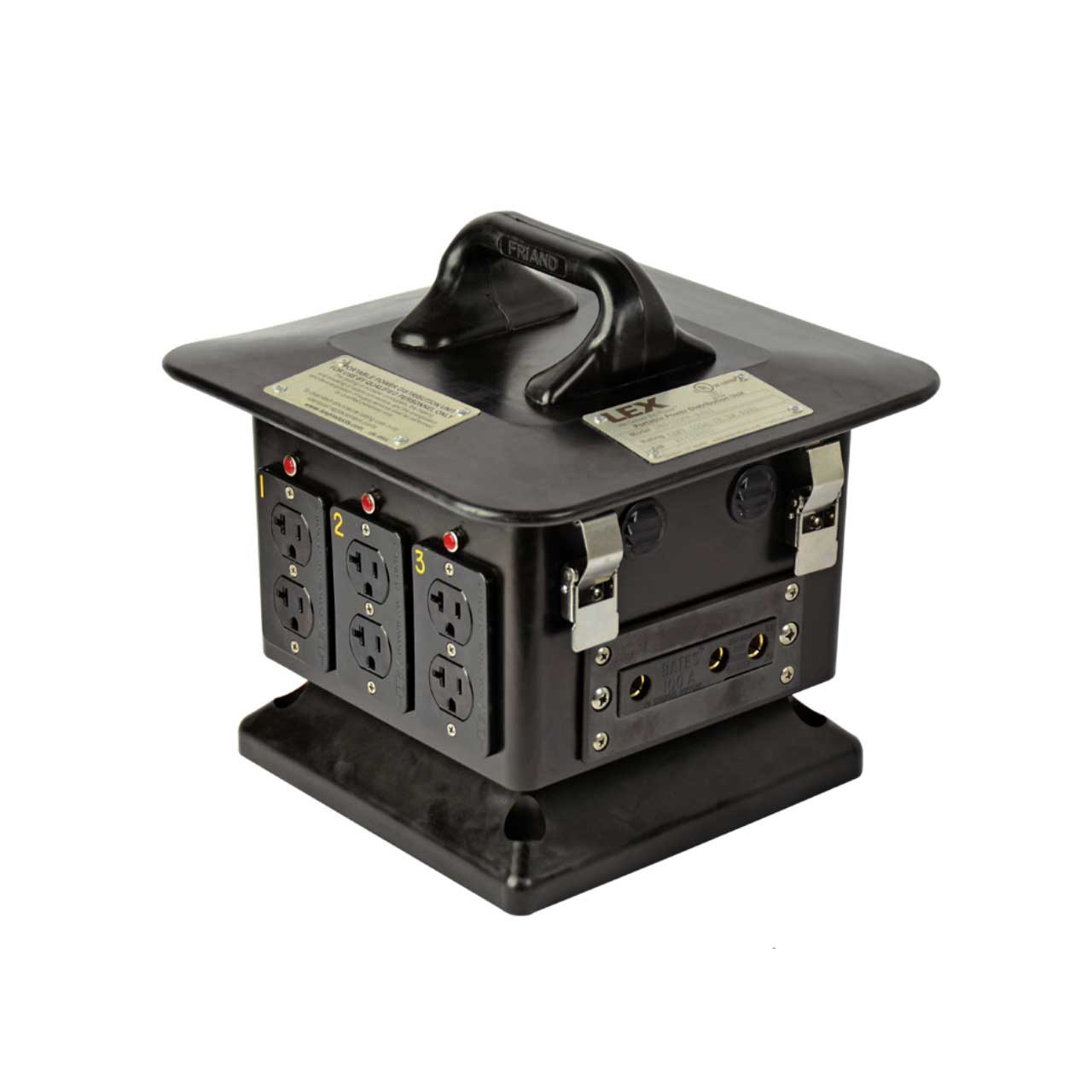

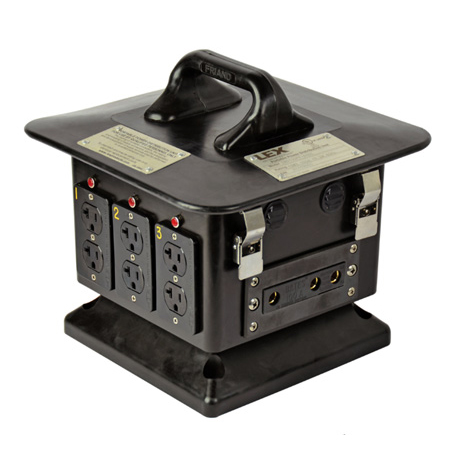

Lex's DSB100FP-B4B2 is most often found in motion picture and television production sutdios and is typically fed from a larger distriution box. It is housed in a stackable rubber enclosure and distributes power to five (5) NEMA 5-20 duplex receptacles from its stage-pin inlet. Because of its compact size, rugged enclosure and built-in overcurrent protection, it's a fan favorite among lighting and rigging crews. Breakers are sealed inside the DSB100FP-B4B2's hinged lid for added safety.

  • Features:

    • Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
    • Breakers mounted under hinged lid for enhanced safety
    • Stackable and compact for easy storage and convenient portability
    • Elevated base keeps receptacles above ground level

  • Specifications:

    • Rating: 100 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire,120 VAC
    • Environmental Rating: NEMA 1 Indoor
    • Input: (1) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin inlet
    • Output: (5) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
    • Feed Thru: (1) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacle
    • Overcurrent Protection: (5) 20 Amp, Single Pole branch-rated circuit breakers
    • Dimensions: 8.5”L x 8.5”W x 11”H
    • Weight: 16 lbs.
