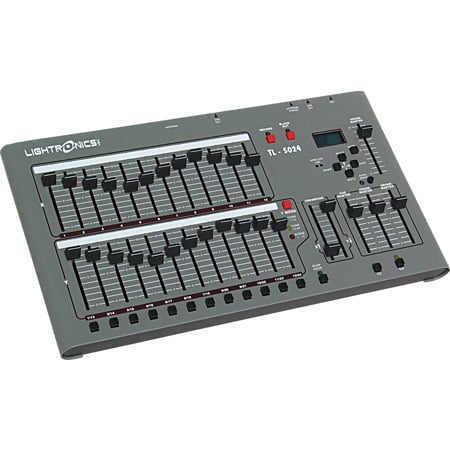

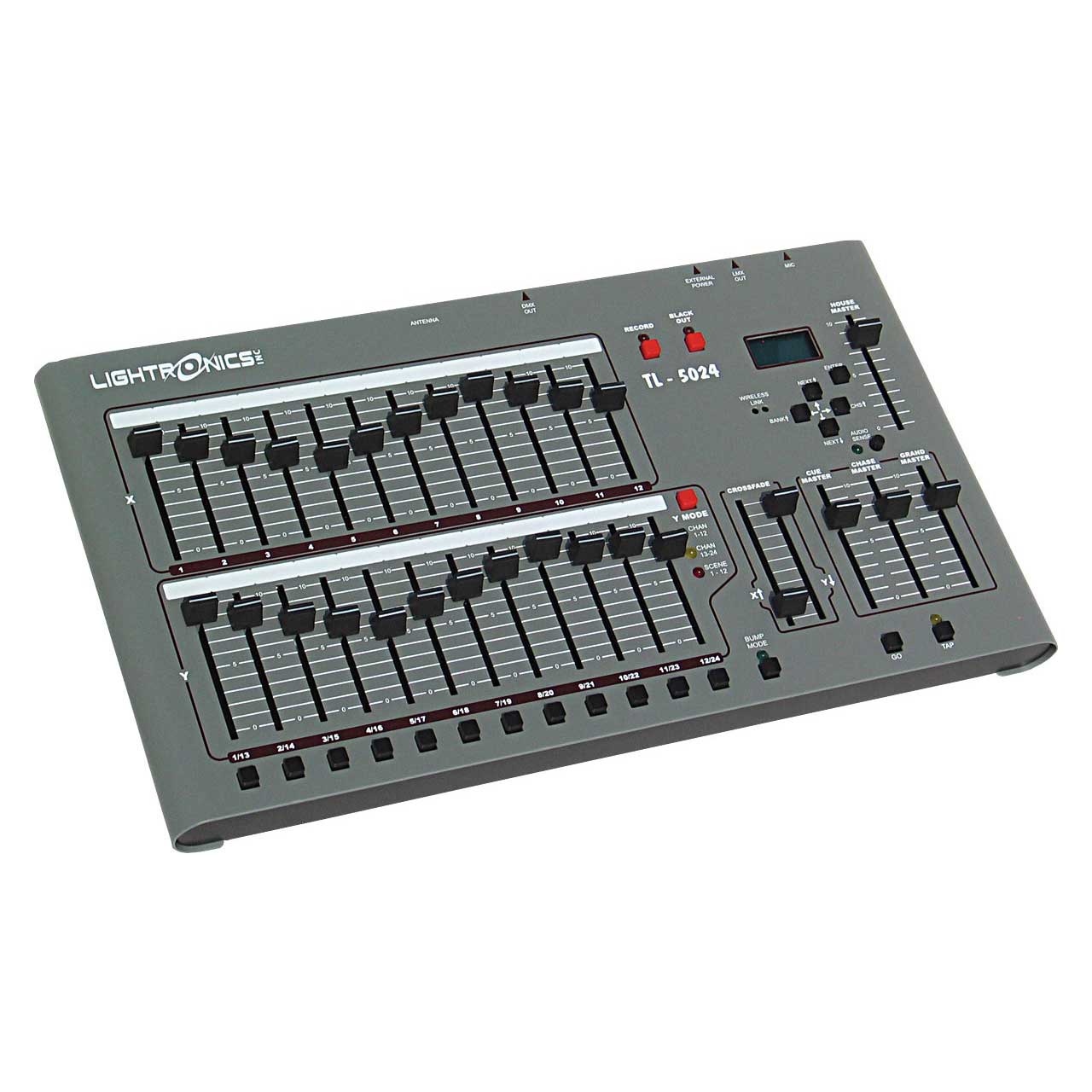

Lightronics TL-5024 24-Channel Lighting Control Console with DMX-512 Option

TL-5024-DMX01 - Overview

• Features:

  • LED Compatible
  • 24 Channels
  • 192 Scenes
  • 12 Chases
  • 240 Scene Cue List
  • Built In Softpatch
  • 2 Line LCD Display
  • Full Go Button
  • LMX128 and DMX512 Protocols


• Specifications:

  • Channels: 24 / 12
  • Operating Modes: 12 Channels x 2 Scenes, 24 Channels x 1 Scene, 12 Channels + 12 Recorded Sc.
  • Scene Memory: 12 Scenes per Bank x 16 Banks, 192 Total Scenes
  • Chase: 12 Programmable 20 Step Chases
  • Control Protocol: LMX-128 (3 pin multiplex) - Transmits 64 Channels, Optional USITT DMX-512 - Transmits 256 Channels
  • Output Connector: 3 Pin XLR Connector, 5 Pin XLR for DMX-512
  • Softpatch: 2 Programmable Pages of 256 DMX Dimmers (128 for LMX)
  • Compatibility: Multiplex Protocol Compatible with other Multiplexed Systems
  • Scene Cue: 240 Scene Cue List (programmable fade in/fade out time)
  • Memory: Non Volatile (retains scene, patch and cue data when powered off)
  • Power Input: 18VAC or +15VDC, Optional External Power Supply
  • Cue Fade: 1 - 99 Seconds (1 second increments)
  • Size: 16.25"W x 9.25"D x 2.5"H
  • Weight: 6.8 Pounds
