Lilliput C10 10X TOF Autofocus Live Stream Camera with HDMI & USB Output

ITEM #: LIL-C10 MFG #: C10

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$299.00

Our Price:

$269.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    C10 - Overview

    Fast And Accurate Autofocus with TOF Ranging Technology

    The Lilliput C10 camera uses advanced ToF ranging technology to quickly and accurately measure the distance between the target and the lens. This allows the camera to quickly focus on the target when switching between far and near scenes in live streaming, ensuring that the subject of the shot is always clear and in focus.

    High-Quality Image Sensor For Professional Imaging
    The camera is equipped with a 1/2.8" 5MP CMOS sensor and supports up to 1920x1080 HD resolution. It provides clearer live streaming image quality with realistic color reproduction and vivid images.

    10x Optical Zoom Lens
    The camera features a 10x zoom lens, empowering users to zoom in on distant subjects. This capability is particularly advantageous for focusing on a smaller area of the scene, effectively reducing blur and enhancing subject clarity.

    Wide-Angle Shots
    The camera comes with a 75.4° wide-angle lens, which is ideal for capturing expansive landscapes, group shots, and other scenes where users want to encompass more detail.

    A Variety Of Preset Styles For Enhancing Image
    Come with a variety of styles to meet different user needs, including jewelry, beauty, and fashion etc. Users can easily personalize images with their favorite styles, creating unique image effects.

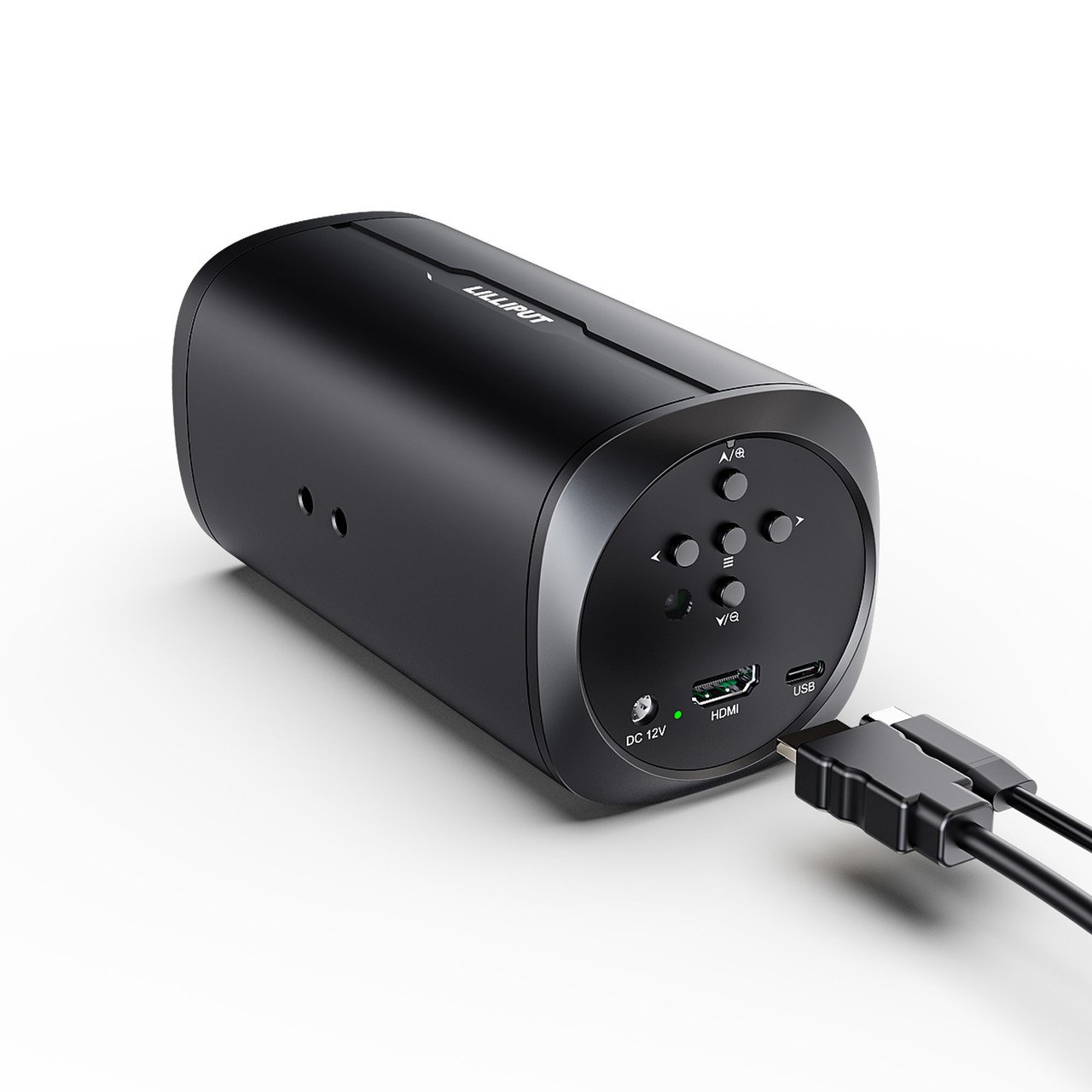

    Dual HDMI & USB Outputs
    Simultaneously output video through both HDMI and USB interfaces. The camera can connect to professional switcher or an additional display through HDMI. Alternatively, effortlessly capture and stream using the camera's direct USB type-C connection to your computer, without the need for an external capture card.

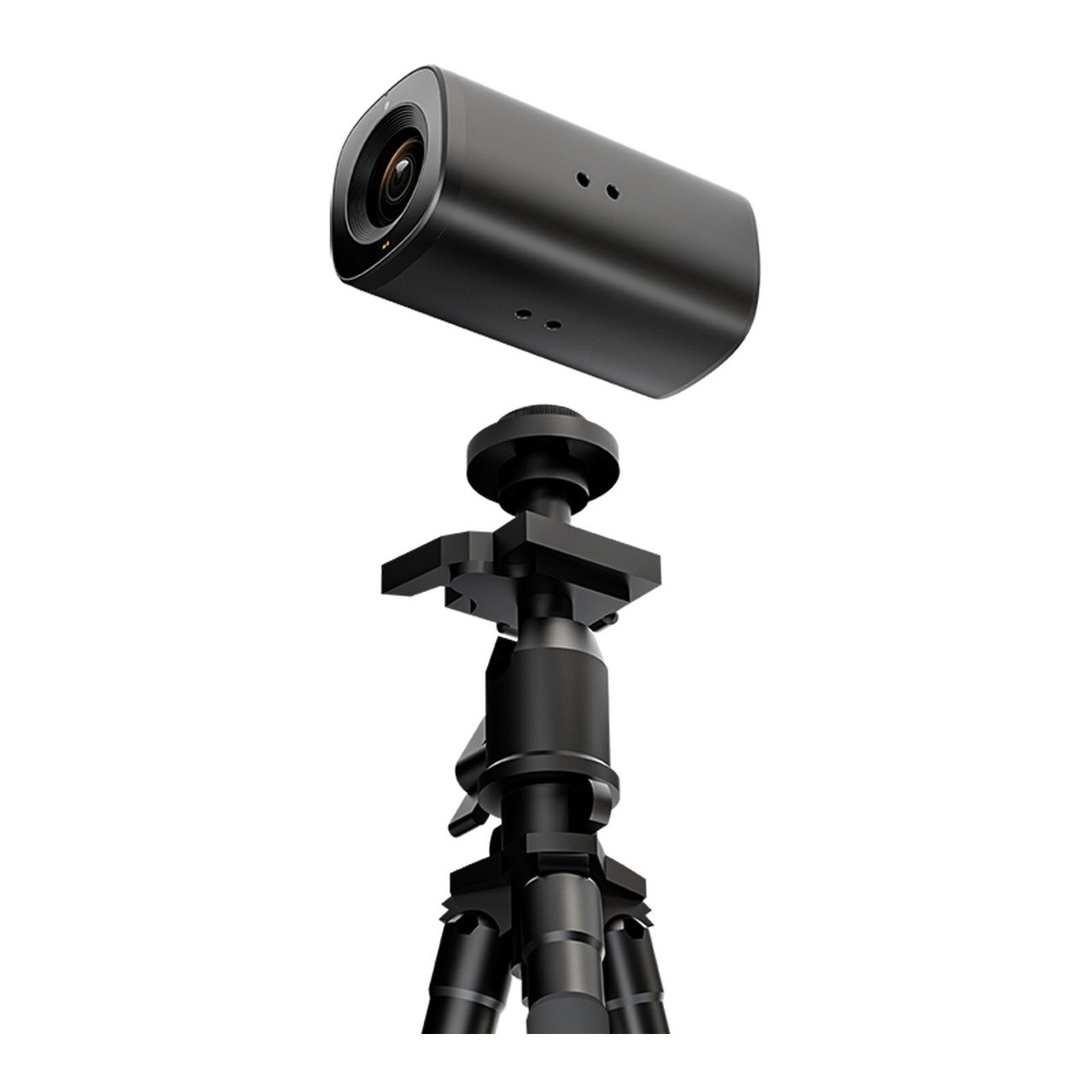

    Landscape And Portrait Orientation
    The camera comes with mounting holes for both landscape and portrait orientations, supporting landscape and portrait shooting without rotating the lens. It also supports image mirroring and flipping.

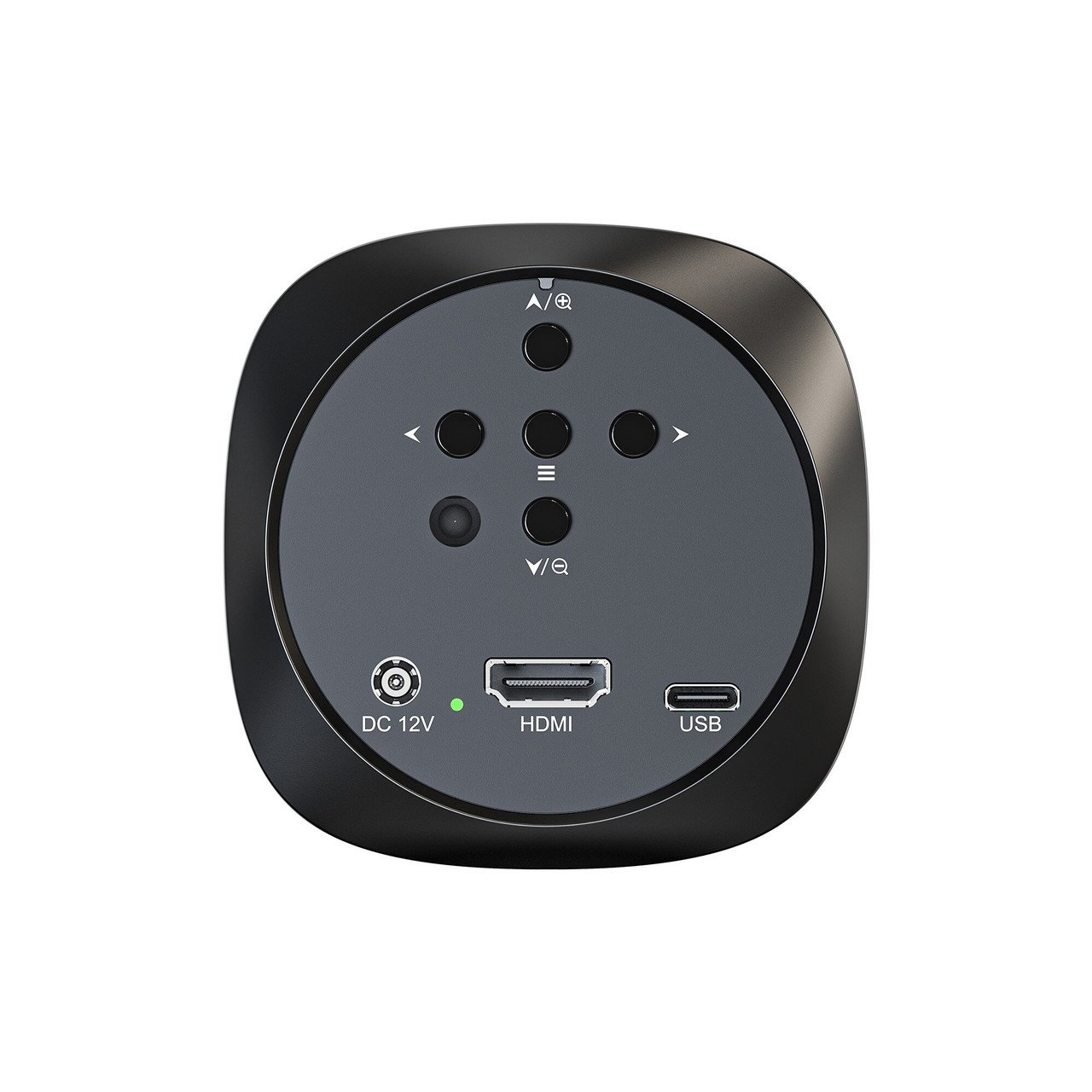

    Flexible Control With Menu Buttons & IR Remote Control
    The camera has menu buttons in the rear, allowing users to control the camera through physical buttons. Additionally, IR receivers on both the front and rear of the camera enable convenient control using an IR remote control.

    Aluminum Alloy Body With Excellent Heat Dissipation For 24/7 Operation
    The camera is built with a durable aluminum alloy body that provides superior heat dissipation. This means that your camera can run 24/7 without interruption, even in the most demanding conditions.

    • Features:

      • Fast And Accurate Autofocus with ToF Ranging Technology
      • High-quality Image Sensor For Professional Imaging
      • 10X Optical Zoom Lens for Close-ups And Wide-angle Shots
      • A Variety of Preset Image Styles
      • HDMI & USB Dual Output
      • Lanscape & Portrait Orientation

    • Specifications:

      • Sensor
      • Sensor: 5M CMOS Sensor
      • Optical Format: 1/2.8"
      • Max Frame Rate: 1920H x 1080V @60fps

        Lens
      • Optical Zoom: 10x
      • Focal Length: F=4.32~40.9mm
      • Aperture Value: F1.76 ~ F3.0
      • Focus Distance: Wide 30cm, Tele 150cm
      • Field of View: 75.4°(Max)

        Interfaces
      • Video Output: HDMI, USB
      • USB Capture Format: MJPG 60P: 1920x1080/1280x960/1280x720/1024x768/800x600/640x480/320x240
      • HDMI Format: 1080p/720p 25/30/50/60

        Functions
      • Exposure Mode: AE/AE Lock/ Custom
      • White Balance Mode: AWB/ AWB Lock/ Custom/ VAR
      • Focus Mode: AF/ AF Lock/ Manual
      • Preset Image Styles: Meeting/ Beauty/ Jewel/ Fashion/ Custom
      • Control Methods: IR Remote Control & Buttons
      • Backlight Compensation: Support
      • Anti-Flicker: 50Hz/ 60Hz
      • Noise Reduction: 2D NR & 3D NR
      • Video Adjustment: Sharpness, Contrast, Color Saturation, Brightness, Hue, Color Temp, Gamma
      • Image Flip: H Flip, V Flip, H&V Flip

        Others
      • Consumption: 4W
      • DC Power Voltage Range: 12V±5% (6-15V)
      • USB Power Voltage Range: 5V±5% (4.75-5.25V)
      • Operation Temperature: 32-122°F (0-50°C)
      • Dimension (LWD): 3.07 x 3.07 x 6.08" (78 x 78 x 154.5mm)
      • Net Weight: 1.51 lbs (686.7g)
      • Gross Weight: 2.32 lbs (1054g)
      • Installation Methods: Lanscape & Portrait Orientation

    • GTIN:

      6950821603840
