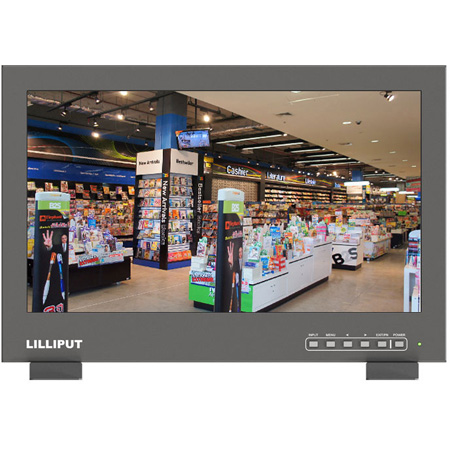

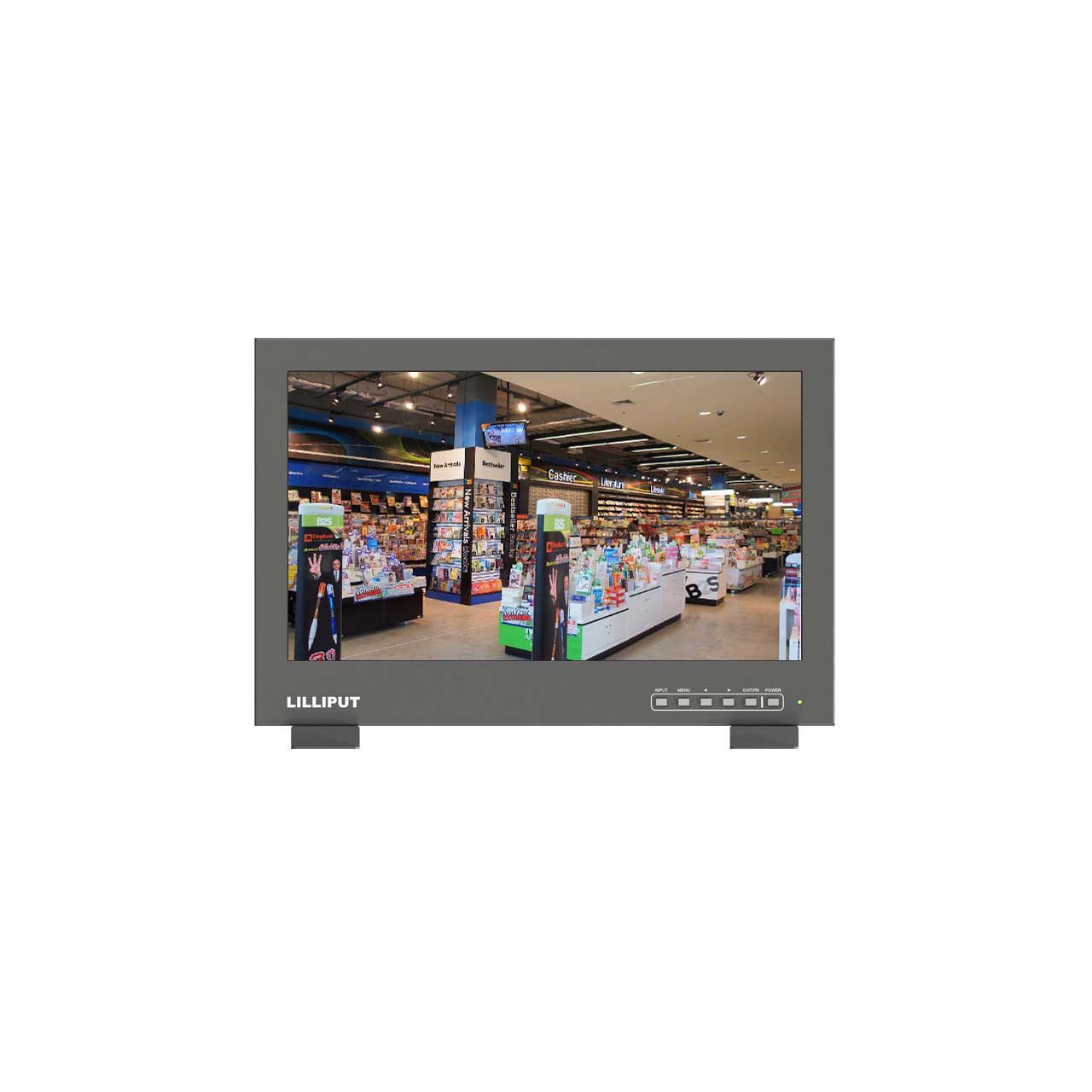

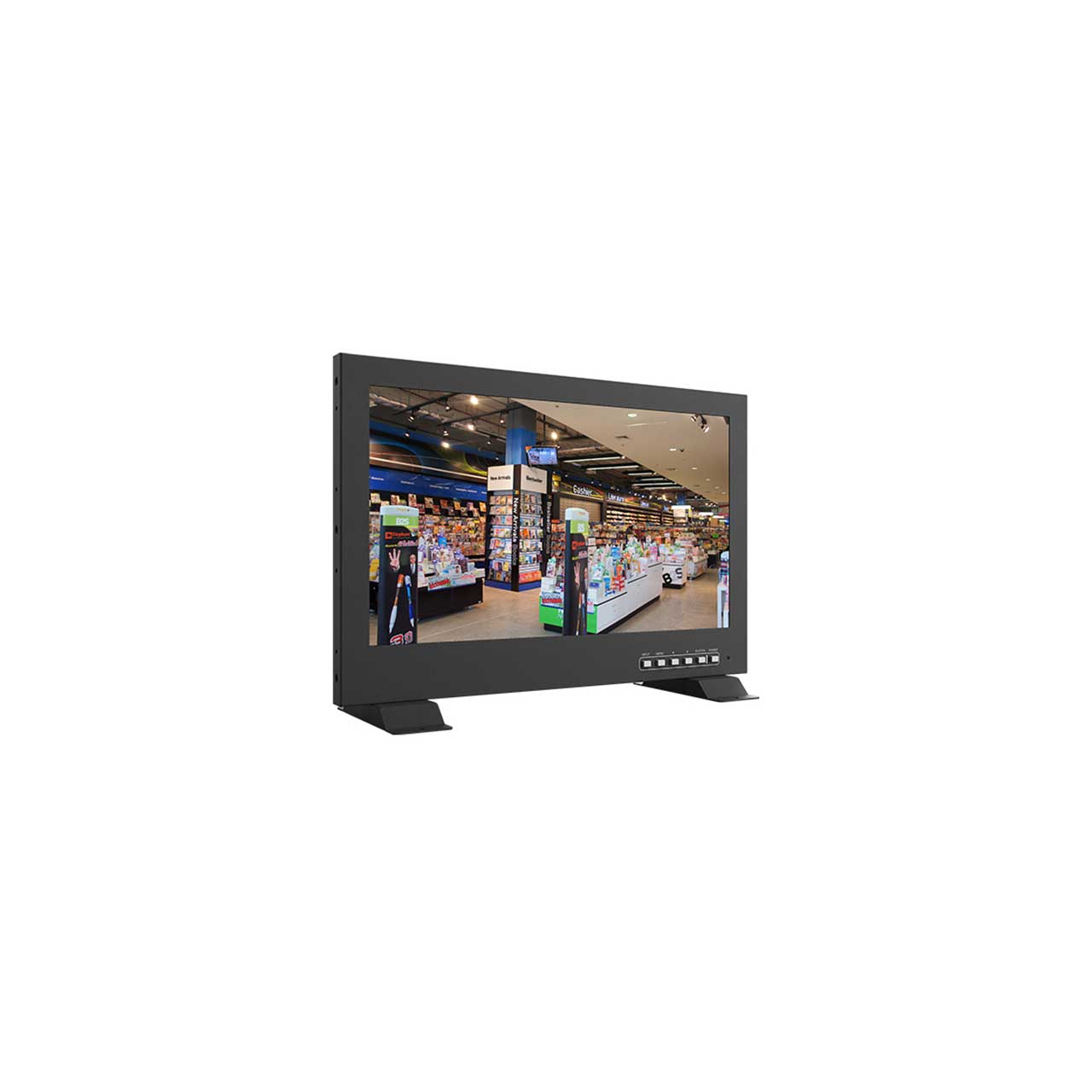

The Lilliput PVM150S is a purpose designed CCTV monitor for use with industry standard CCTV servers and video systems. The unit features and HDMI 1.4b video as well as an SDI bayonet type input which facilitates connection to a whole host of CCTV servers and splitters.
The panel built into the PVM150S is a 1920 x 1080 resolution type at 15.6", and sports a healthy 1000 NIT (cdm²) brightness. It has compatibility with 4K input signals, meaning it can be attached to the most modern of CCTV systems to show the clarity and detail that such observation systems require.
High Dynamic Range - the PVM150S sports a high dynamic range panel - meaning that it will allow for high contrast input signals to be shown with much more clarity and precision. This will prove its mettle when used in outdoor security camera type environments where excessive screen bloom could cause the loss of critical detail.

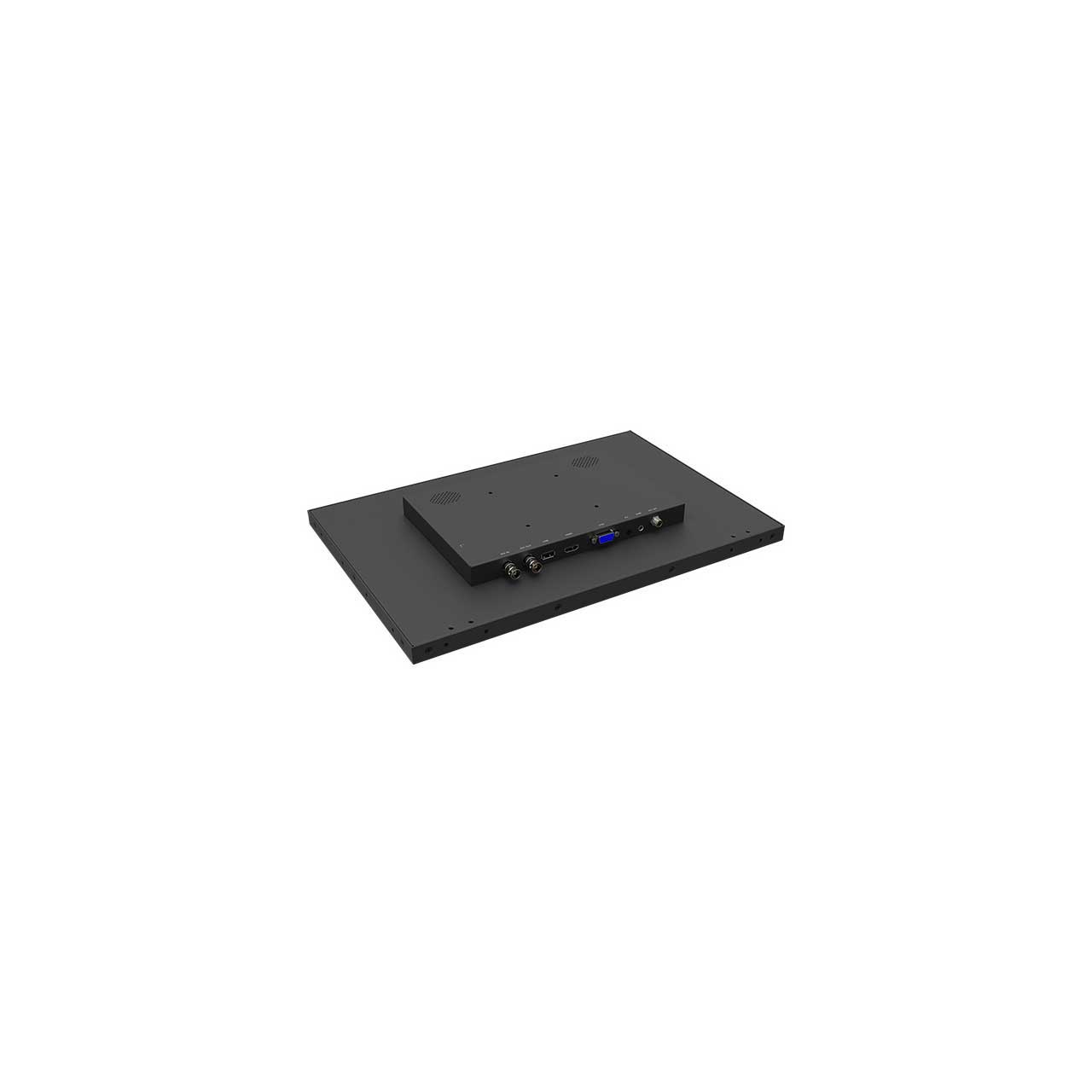

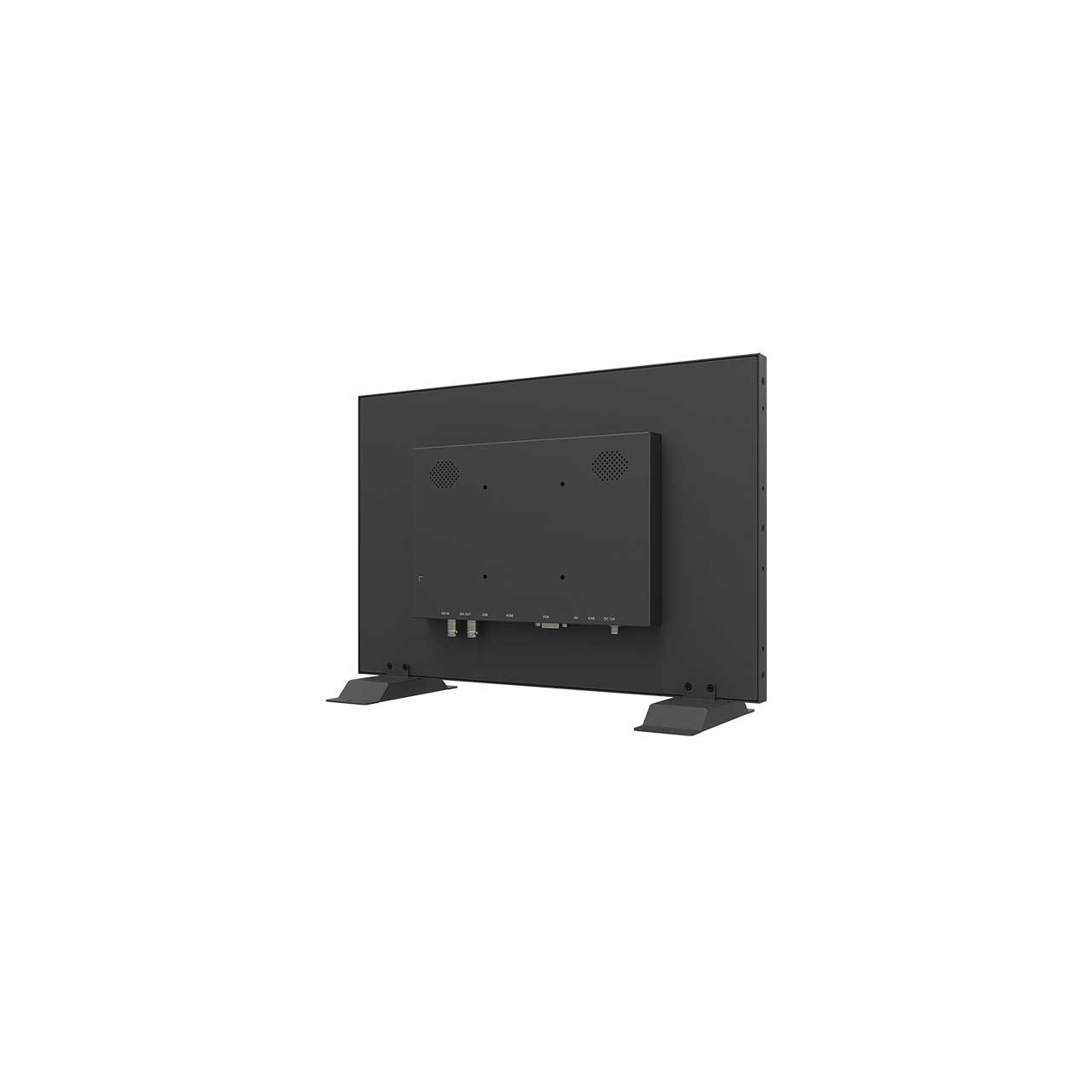

The PVM150S has a plethora of useful inputs - it can accept input of 4K 30Hz signals through the HDMI input, as well as a 1080p 3G-SDI input through the SDI ports. For legacy systems there is also a VGA input that will accept up to a 1920 x 1080 signal . Power can be fed up to 24VDC - making the system also installable in such locales as mobile security trucks and facilities and PSV camera detection units.
